    Vortex Flow Meter for Liquid/Gas/Steam, DN15-DN300

    5 out of 5 based on 2 reviews | Write a review
    $957.85

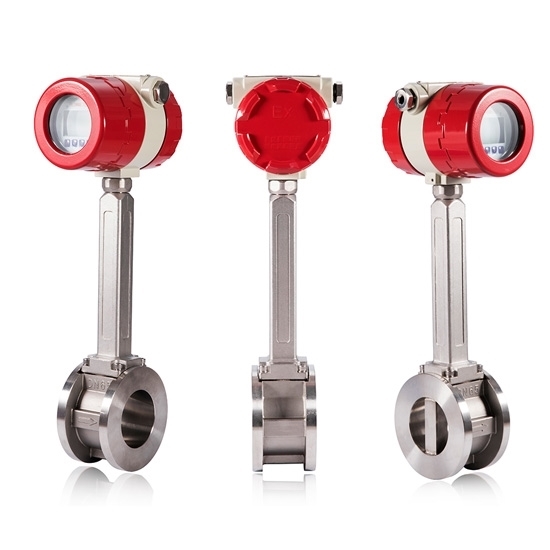

    Low cost vortex meter can measure the flow rate of liquids, gases and steam, applicable pipe size from DN15 to DN300. High accuracy vortex flowmeter has fully isolated design, optional LCD display for direct data reading, selectable various signal output like pulse output, 4-20mA output and RS485 communication, as well as integrated pressure / temperature compensation for precise compressor air or steam measurement. With clamp or flange connection and power by Li-ion battery, the vortex meter is easy to install, low-maintenance, reliable and safe.
    *
    *
    *
    *
    *
    *
    *
    SKU: ATO-FLOW-VOR
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cost-effective yet reliable vortex flow meters are suitable for pipe sizes from DN15, DN20, DN25, DN32, DN40 to DN300, applicable for liquids (water, high temperature water, chemical liquid, gasoline, etc.), gases (natural gas, compressed air, etc.), and saturated, superheated steam.

    Specification

    Model ATO-LUGB
    Measuring Media Liquids, gases, steam
    Line Size * DN15-DN300
    Accuracy Gas (uncompensated): DN15-DN25 ±1.5%, DN32-DN200 ±1.0%, DN250-DN300 ±1.5%
    Liquid (uncompensated):DN15-DN300 ±1.0%
    With integrated temperature and pressure compensation: DN25-DN300 ±1.5%
    Pressure Resistance Class For Clamp connection: DN15-DN25 4.0Mpa, DN65-DN100 2.5Mpa, Over DN125 1.6Mpa
    For Flange connection: DN15-DN50 2.5Mpa, DN65-DN300 1.6Mpa
    Range Ratio 1:8~1:30
    Medium Temperature -40°C ~ +260°C (for higher temperatures contact us)
    Power Supply 24V DC±5%, Li-ion battery (3.6V DC)
    Compensation Mode * Temperature compensation, pressure compensation, or integrated temperature and pressure compensation (Optional)
    Display * LCD display (Optional)
    Output Signal * Frequency, or 4-20mA
    Communication Interface * RS485 (Optional)
    Connection * Clamp, or Flange connection
    Body Material 316 stainless steel
    Protection Class IP65
    Ambient Temperature -10v ~ +60°C


    Flow Range

    Diameter Nominal (mm) Liquid Gas
    Flow Range (m3/h) Frequency Range (Hz) Flow Range (m3/h) Frequency Range (Hz)
    15 0.3~5  35~450 4~20 300~1600
    20 0.6~10 29~380 6~30 230~1200
    25 1.2~16 25~320 8~55 170~1100
    32 1.8~20 18~200 10~120 100~1180
    40 2~40 10~190 27~205 130~1040
    50 3~60 8~150 35~380 94~920
    65 4~85 6~120 60~640 90~910
    80 6.5~130 4.1~82 86~1100 55~690
    100 15~220 4.7~69 133~1700 42~536
    125 20~350 3.2~57 150~2000 38~475
    150 30~450 2.8~43 347~4000 33~380
    200 45~800 2~31 560~8000 22~315
    250 65~1250 1.5~25 890~11000 18~221
    300 95~2000 1.2~24 1360~18000 16~213


    Feature

    Vortex flow meter features

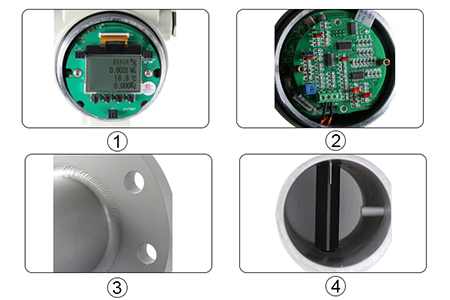

    1. Newly Upgraded Intelligent Meter Head: The fourth generation dot-matrix LCD can display instantaneous/accumulative flow rate, medium temperature/pressure on the same screen.
    2. Fully Automatic SMT Packaging Technology: The use of high-quality analog chip components surface mount technology, effectively improve product capacity and reduce the defective rate of the flowmeter.
    3. High-strength Impact Resistant Parts: The vortex generator body has been polished for many times to resist pressure, and the one-piece casting makes the degree of impact resistance stronger (do not carry out water hammer impact).
    4. Professional Fish Scale Welding Technology: Welded by senior craftsmen by hand, presenting a fish scale welding pattern, the body is really super shock-resistant, to ensure that the meter is stable to use.

    Dimension (unit: mm)

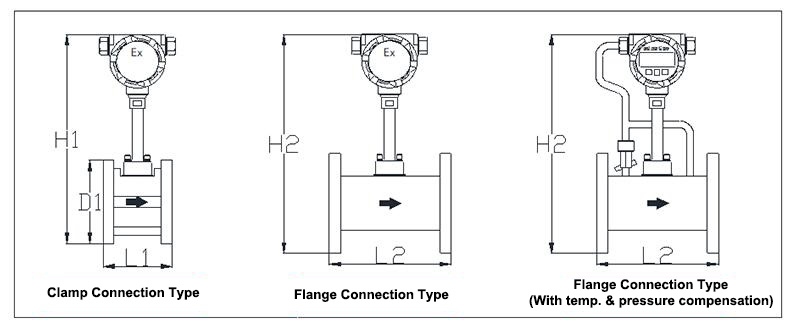

    Vortex Flow Meter Dimension Drawing

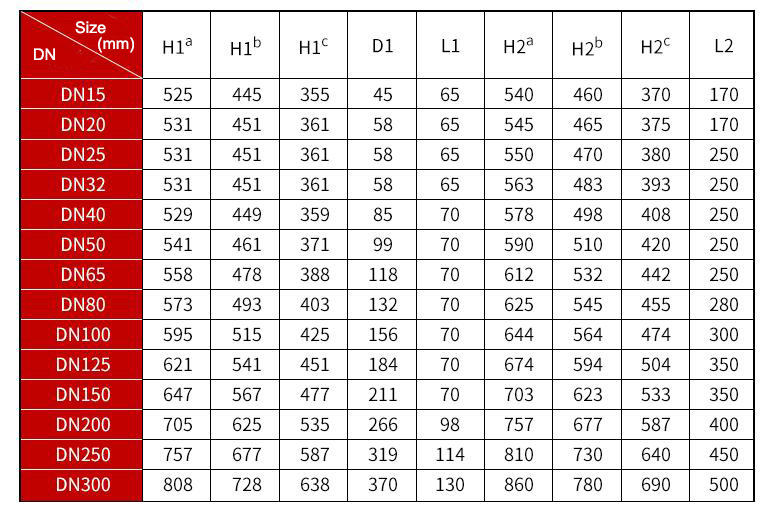

    Size (mm) H1a H1b H1c D1 L1 H2a H2b H2c L2
    DN15 525 445 355 45 65 540 460 370 170
    DN20 531 451 361 58 65 545 465 375 170
    DN25 531 451 361 58 65 550 470 380 250
    DN32 531 451 361 58 65 563 483 393 250
    DN40 529 449 359 85 70 578 498 408 250
    DN50 541 461 371 99 70 590 510 420 250
    DN65 558 478 388 118 70 612 532 442 250
    DN80 573 493 403 132 70 625 545 455 280
    DN100 595 515 425 156 70 644 564 474 300
    DN125 621 541 451 184 70 674 594 504 350
    DN150 647 567 477 211 70 703 623 533 350
    DN200 705 625 535 266 98 757 677 587 400
    DN250 757 677 587 319 114 802 730 640 450
    DN300 808 728 638 370 130 860 780 690 500

    Note: This vortex flowmeter has 3 types of pillars a, b, c, with different sizes. You can check the height of the entire meter corresponding to the H superscript in the table above.
    For the height of vortex flow meter with 150℃ sensor without compensation, see H superscript “c”; for the vortex flow meter with 150℃ sensor with compensation, see H superscript “b”; for the vortex flow meter with 260℃ sensor, see H superscript “b”; for the vortex flow meter with 300℃ sensor, see H superscript “a”.

    Wiring Diagram

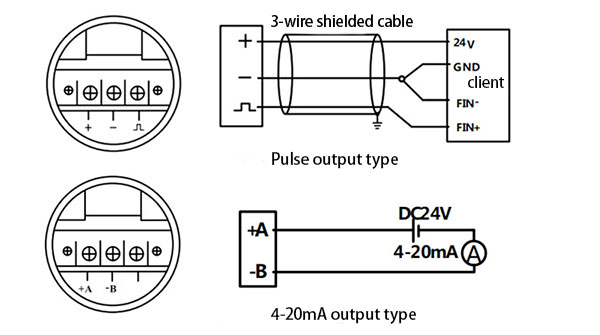

    Vortex flow meter wiring diagram

    Tips: What is a vortex flow meter?

    A vortex flow meter is a flow measurement instrument based on the principle of the vortex effect. It works by installing a disturbing fluid (usually a cross-sectional protrusion) in a pipe, which creates regular vortices behind the fluid as it passes through. The frequency of the vortex is directly proportional to the fluid flow rate, so the flow rate can be calculated by measuring the vortex frequency.

    Vortex flow meters are used in various industrial fields, especially in chemical, power, oil and gas industries. It is capable of measuring the flow of various fluids, including liquids, gases and steam. It is particularly suited to fluids that have a steady flow rate and do not settle easily or with small variations. Common application scenarios include measurement of vapor flow in pipelines, monitoring of liquid flow in chemical reactions, and industrial gas flow control.
