Venturi Vacuum Generator, Box Type

5 out of 5 based on 3 reviews | Write a review

$34.29

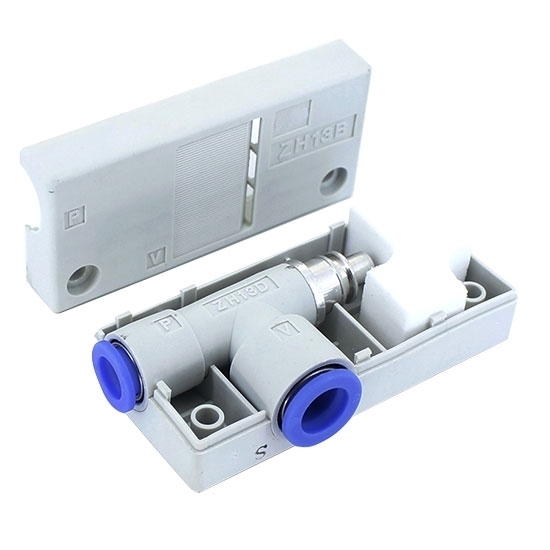

Low price single stage venturi vacuum generator/ejector for air compressor, box type, 0.5, 0.7, 1.0, 1.3mm nozzle diameter available, optional supply port size and vacuum port size, vacuum pressure -88/-48 kPa, supply pressure 0.45 MPa. Build-in silencer, easy to install.

Nozzle Diameter *
Vacuum Pressure *
Port Selection *

SKU: ATO-C-ZH

This product has a minimum quantity of 5

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1 stage box type air venturi vacuum generator/ejector is compact and light weight, widely used in used in spaces where vibration needs to be avoided.

Specification

Model		ATO-C-ZH05B	ATO-C-ZH07B	ATO-C-ZH10B	ATO-C-ZH13B
Type		Box Type
Nozzle Diameter (mm)		0.5	0.7	1	1.3
Vacuum Pressure (kPa)	S (Pressure Type)	-88	-88	-88	-88
Vacuum Pressure (kPa)	L (Flow Type)	-48	-48	-48	-48
Flow Rate (l/min)	S	5	12	24	40
Flow Rate (l/min)	L	8	20	34	70
Air Consumption (l/min)		13	23	46	78
Supply Pressure (MPa)		0.45
Port Selection (Supply Port + Vacuum Port)	One-touch Fitting (mm)	ø06 + ø06	ø06 + ø06	ø06 + ø06	ø08 + ø10
	Screw-in (in.)	Rc1/8 + Rc1/8	Rc1/8 + Rc1/8	Rc1/8 + Rc1/8	Rc1/8 + Rc1/4
	One-touch Fitting + Screw-in	ø06 + Rc1/8	ø06 + Rc1/8	ø06 + Rc1/8	ø08 + Rc1/4

Dimensions

Units: mm

Model (One-touch Fitting)	ATO-C-ZH05B	ATO-C-ZH07B	ATO-C-ZH10B	ATO-C-ZH13B
A	60	60	63	78
øB	6	6	6	8
C	22	22	23	27.5
D	16	16	18	23
E	17	17	17	18.5
F	28	28	29	35
G	5	5	5	7
H	47	47	50	61
I	57	57	60	75
J	17	17	17	21
øK	3.2	3.2	3.2	4.2
L	24	24	26	28
øM	6	6	6	10
øN	5.8	5.8	5.8	7.5
O	2	2	2	3
P	31	31	32	38.5

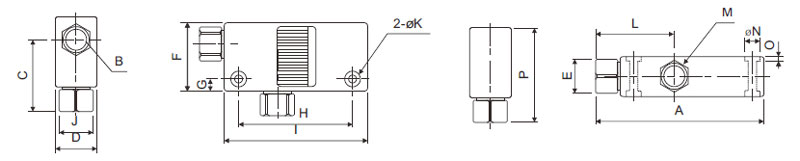

Dimensions of Venturi Vacuum Generator/Ejector

Model (Screw-in)	ATO-C-ZH05B	ATO-C-ZH07B	ATO-C-ZH10B	ATO-C-ZH13B
A	67.5	67.5	70.5	86.5
B	Rc1/8	Rc1/8	Rc1/8	Rc1/8
C	29.5	29.5	30.5	39
D	16	16	18	23
E	12	12	12	14
F	28	28	29	35
G	5	5	5	7
H	47	47	50	61
I	57	57	60	75
J	12	12	12	17
øK	3.2	3.2	3.2	4.2
L	31.5	31.5	33.5	36.5
M	Rc1/8	Rc1/8	Rc1/8	Rc1/4
øN	5.8	5.8	5.8	7.5
O	2	2	2	3
P	38.5	38.5	39.5	50

Dimensions of Air Venturi Vacuum Generator

Model (One-touch Fitting + Screw-in)	ATO-C-ZH05B	ATO-C-ZH07B	ATO-C-ZH10B	ATO-C-ZH13B
A	60	60	63	78
øB	6	6	6	8
C	29.5	29.5	30.5	39
D	16	16	18	23
E	17	17	17	18.5
F	28	28	29	35
G	5	5	5	7
H	47	47	50	61
I	57	57	60	75
J	12	12	12	17
øK	3.2	3.2	3.2	4.2
L	24	24	26	28
M	Rc1/8	Rc1/8	Rc1/8	Rc1/4
øN	5.8	5.8	5.8	7.5
O	2	2	2	3
P	38.5	38.5	39.5	50

Tips: The performance of venturi vacuum generator

Exhaust and flow characteristics

Exhaust characteristics refer to the relationship between vacuum pressure, suction flow or air consumption varying with the change of air supply pressure of vacuum generator. They increase as the supply pressure increases. Flow characteristics refer to the relationship between vacuum pressure and suction flow when the supply pressure of vacuum generator is constant. Suction flow rate is the flow of air inhaled from the suction port.

Suction time

It refers to the time when the vacuum pressure in the vacuum suction cup reaches the required vacuum pressure or the time required when the air supply valve is switched to the vacuum pressure switch. It is related to the volume of the adsorption chamber (diffusion chamber, adsorption pipe volume and suction cup volume, etc.), the leakage of the adsorption surface and the required vacuum pressure.

Air consumption

The air consumption of pneumatic vacuum generator is determined by the diameter of nozzle, but it is also related to the working pressure. For the same nozzle diameter, the air consumption increases with the increase of working pressure. The nozzle diameter is the main basis for selecting a vacuum ejector. The larger the nozzle diameter, the greater the suction flow and air consumption, and the lower the vacuum pressure. The smaller the nozzle diameter, the smaller the suction flow and air consumption, but the higher the vacuum pressure.

vacuum pressure

There is a maximum vacuum pressure, when the maximum is exceeded, even if the working pressure is increased, the vacuum pressure will not increase but will decline. The maximum vacuum generated by the vacuum generator is -88kPa. In actual use, it is suggested that the vacuum pressure can be set at -70KPa and the working pressure is about 0.5Mpa.
