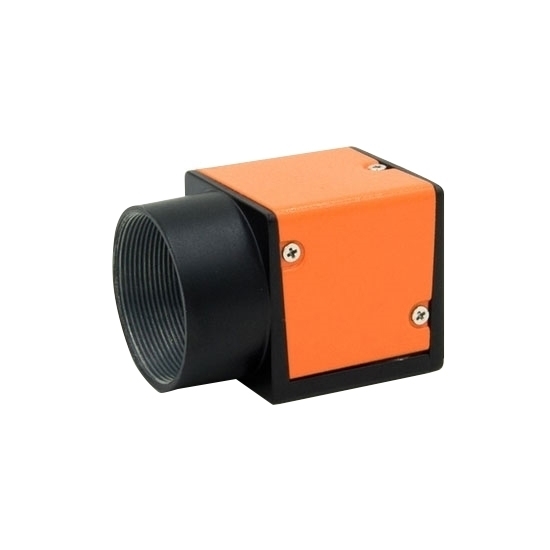

This USB 3.0 CMOS industrial camera, area scan camera, distinguishes itself by high reliability and high cost-performance, with 2592x2048 (5.3MP) and 60fps. The camera can work stably in a variety harsh environments. And it is really suitable for 3D scanning, motion capture, trajectory analysis and other fields.
Features
- Support GenICam ™ and USB3 Vision® Standard
- Compact design, to save installation space
- Rugged industrial housing design
- Built-in temperature, power supply real-time monitoring sensor
- Provide professional SDK for GigE machine vision camera
Specification
Model |
5000-60um |
5000-60uc |
Resolution |
2592x2048 (5.3 Mega Pixel) |
Sensor Type |
CMOS |
Sensor Model |
PYTHON 5000 |
Format |
1" |
Pixel Size |
4.8μm x 4.8μm |
Maximum Frame Rate |
60fps |
Bit Depth |
8-bit or 10-bit |
Mono/Color |
Monochrome |
Color |
Exposure Time |
16μs~1s |
SNR |
>38dB |
Dynamic Range |
60dB |
Shutter Type |
Global Shutter |
Interface |
USB 3.0 |
Lens Mount |
Standard C-Mount |
Power Supply |
USB |
Power Comsumption |
3.5W |
Hardware Control |
I/O input (external trigger), I/O output, Opto-couplers Isolation |
Programmable Control |
Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction |
Opearting System |
Support Windows XP/7/8/10 Support 32-bit and 64-bit operating system/Arm/Linux (Software can be provided for free) |
Operating Tempearture |
-30~+60℃ |
Storage Temperature |
-30℃~+80℃ |
Mass |
60g |
Dimension |
29x29x29mm |
USB 3.0 Industrial Camera Dimensions
Tips: Advantages and Disadvantages of Data Output Interface of Industrial Camera
1. USB 2.0 Interface
The industrial camera with a USB2.0 interface is the most common type at present. All computers are configured with a USB2.0 interface, so it’s convenient to connect without requiring a grabber. But, its transmission rate is slow, that is, the theoretical velocity is only 480Mb (60MB). Due to the bad protocol (Bulk-Only Transport (BOT) protocol) and encoding method, the data transmission rate is only 30MB/S. The industrial camera with a USB interface doesn’t have the sturdy screw, so there may be danger of loosening when using on regular moving equipment.
2. USB 3.0 Interface
The design of USB 3.0 adds two sets of data buses on the basis of USB 2. To ensure downwards compatibility, USB 3.0 keeps a set of transmission bus of USB 2.0. On the transport protocol, USB 3.0 also adds the USB Attached SCSI Protocol (USAP) apart from the traditional BOT protocol, which gives full play to the high bandwidth advantage of 5Gbps.
3. GigE Interface
The industrial camera with a GigE interface is widely used. Generally speaking, it can work normally when it is connected to Gigabit Ethernet card. However, some special details shall be noted. For example, the early NI software may have some requirements for the chip of the Gigabit network card, an INTEL chip may be required to drive the GIGE camera normally, if a network card with Realtek chip is used, there may be no response. Moreover, among the properties of a Gigabit Ethernet card, there are also giant frames similar to the Packet Size in 1394. If this parameter is well set, a better effect may be achieved.
4. Camera Link
The camera with a Camera Link is rarely applied; however, its transmission speed is the fastest type of bus in the current industrial camera.
