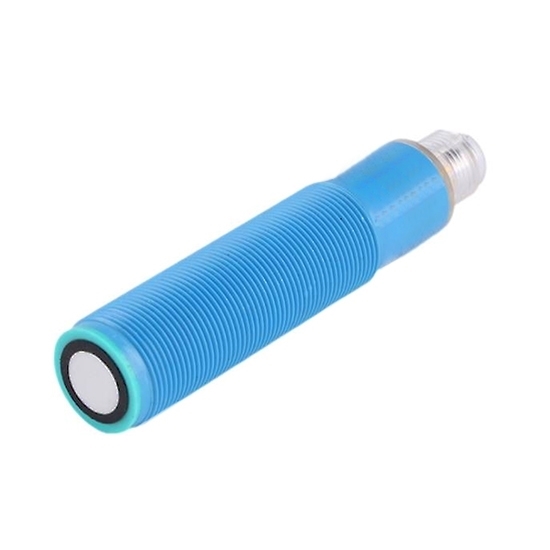

    Ultrasonic Distance Sensor, 100-1000 mm
    Picture of Ultrasonic Distance Sensor, 100-1000 mm
    Picture of Ultrasonic Distance Sensor, 100-1000 mm
    Picture of Ultrasonic Distance Sensor, 100-1000 mm

    Ultrasonic Distance Sensor, 100-1000 mm

    5 out of 5 based on 7 reviews | Write a review
    $326.19
    Small ultrasonic sensor at affordable price for sale, material is high quality nickel copper alloy, ultrasonic wave range is 100-1000mm. Sensor with switching output or analog output can be chosen. Ultrasonic distance sensor can be optimally adapted to the industrial.
    *
    *
    *
    SKU: ATO-UDS-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High power ultrasonic transducer (sensor) standard detector is 100×100mm. You can set the detection distance and output mode by setting the line remotely. IP67 for body, come with international standards, through CE certification.

    Specifications

    Model ATO-UDS-100
    Detection Distance 100mm-1000mm
    Blind Area 100mm
    Standard Detector 100x100mm
    Supply Voltage 24V DC±10%
    Consumption Current Less than 50mA
    Response Time 48ms (min)
    Detection Accurancy ±0.25% FS
    Working Temperature -20 ℃—+60 ℃
    Storage Temperature -25 ℃—+70 ℃
    Vibration Frequency 10-55Hz
    Withstand Voltage 100VAC 50/60Hz
    Shell Material Nickel Copper Alloy (plastic part is PBT)
    Protection Level IEC IP67
    Line Length 2m
    Certification CE
    Warranty 12 months

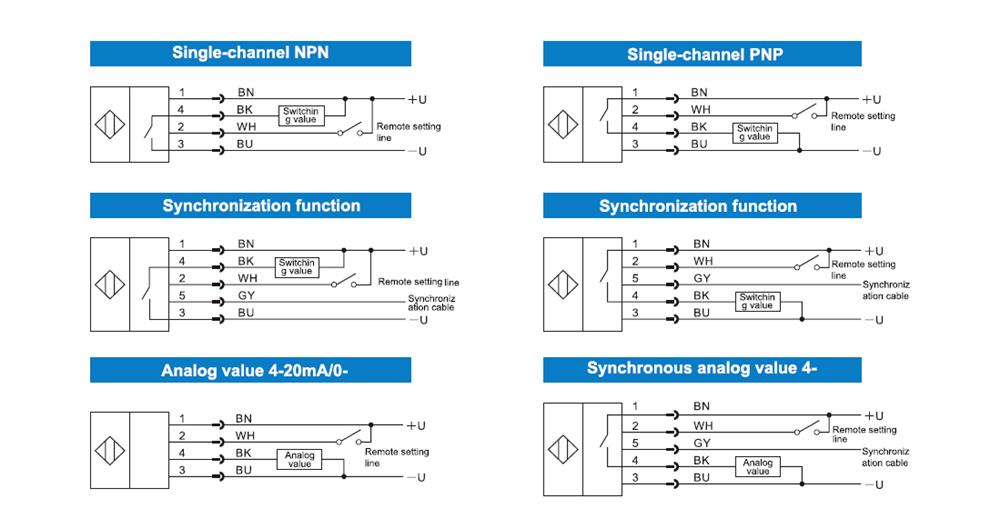

    Wiring

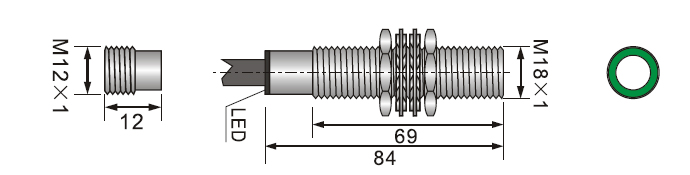

    100-1000mm ultrasonic sensor wiringDimension (mm)

    100-1000mm ultrasonic sensor dimensionApplications

    100-1000mm ultrasonic sensor applicationTips: What is an Ultrasonic Sensor?

    Ultrasonic sensor is the ultrasonic signal into other energy signals (usually electrical signals) sensor. Ultrasonic waves are mechanical waves with vibration frequencies higher than 20kHz. It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directivity, can become a ray and directional propagation. Ultrasonic penetration of liquid, solid power is very large, especially in the sunlight opaque solid. When ultrasonic meets impurity or interface, it will produce significant reflection to form reflection echo. When it meets moving object, it can produce Doppler effect. Ultrasonic sensor is widely used in industry, national defense, biomedicine and other fields.
