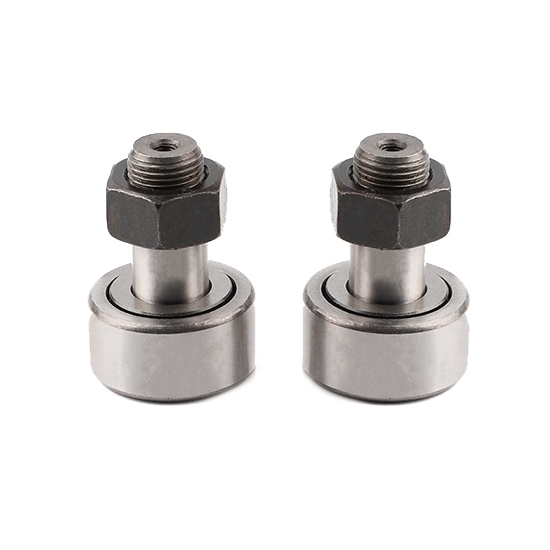

Track Roller Bearing, Stud Type, Diameter 35mm

$42.53

Low-price track roller bearing for sale with diameter 35mm, stud type, the eccentric 0.35e. The cam follower bearing The track roller with solid sealed which can prevent the entry of foreign matters like dust, this would extend the life of the roller bearing.

SKU: ATO-TRB-35

This product has a minimum quantity of 4

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High-accuracy cam follower bearing comes with a diameter of 35mm, P4 accuracy class. The cam follower bearing is composed of outer ring cages pressed in the rolling bodies' axial guidance and the retaining edges steps which form highly effective gap sealing.

Specification

Model: ATO-CF35
Inner diameter: 35mm
Outer diameter: 25mm
Width: 85mm
Accuracy class: P4
Eccentric: 0.35e
Basic load rating: Dynamic: 1630kgf, Static: 1690kgf
Material: Bearing steel

Dimension (mm)

Dimension of track roller bearing

Model	D	C	G	D1	G1	B max	B1 max	B2	C1
ATO-CF35	85	25	M20*1.5	35	21	25.6	66.1	40.5	0.8

Application

Track roller bearing application

Tips: Where would you use a roller bearing?

Roller bearings are used for heavy-duty moderate-speed applications. Potential applications for spherical and cylindrical roller bearings include power generation, oil field, mining and aggregate processing, wind turbines, gear drives, rolling mills.
