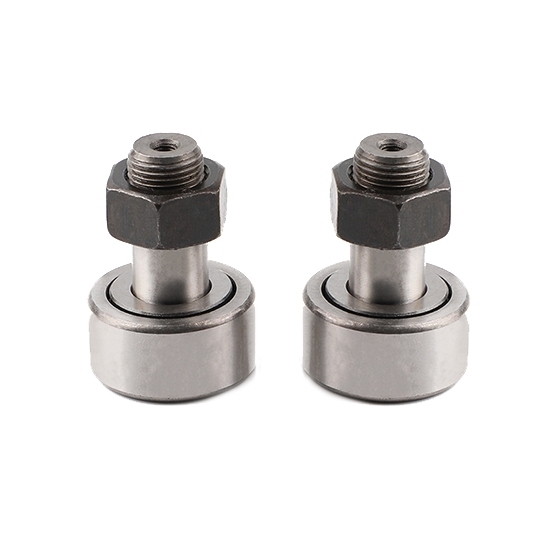

Track Roller Bearing, Stud Type, Diameter 10mm

$38.97

Cheap price stud type track roller bearing for sale online. The track roller bearing with a 10mm inner diameter, 22mm outer diameter, width of 12mm, and P4 accuracy class. The cam follower bearing is thick-walled and designed to bear an impact load.

SKU: ATO-TRB-10

This product has a minimum quantity of 4

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

A high-performance track roller bearing is a compact and highly rigid bearing with a shaft. It comes with a 10mm diameter, 0.25e eccentric. The maintenance cost of the cam followers and track roller is low, which can improve the production efficiency, as well as the reliability of the equipment.

Specification

Model: ATO-CF10
Inner diameter: 10mm
Outer diameter: 22mm
Width: 12mm
Accuracy class: P4
Eccentric: 0.25e
Basic load rating: Dynamic: 280kgf, Static: 180kgf
Material: Bearing steel

Dimension (mm)

Dimension of track roller bearing

Model	D	C	G	D1	G1	B max	B1 max	B2	C1
ATO-CF3	22	10	M5*0.8	12	7	10	23	13	0.5

Application

Track roller bearing application

Tips: What is a track roller bearing?

Ball-bearing track rollers are self-retaining, single or double-row units with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface.
