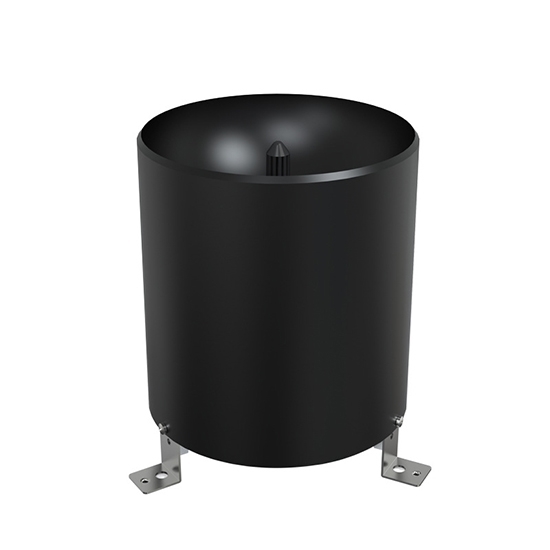

    Tipping Bucket Rain Gauge Sensor, Resolution 0.2mm/0.5mm

    $215.39
    Favorable price tipping bucket rain gauge sensor's core component ABS tipping bucket adopts three-dimensional streamlined design, which makes the tipping bucket turn over the water more smoothly, and has the function of self-washing dust and easy to clean. Pulse/RS485 signal/analog output, 0.2mm/0.5mm resolution is optional, the rainfall sensor can read the rainfall directly, no need for secondary calculation, simple and convenient.
    *
    *
    SKU: ATO-RS-TBABS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Designed for meteorological and hydrological monitoring, the tipping bucket rain gauge sensors provide accurate measurement and high sensitivity. With an aperture of 200mm and a resolution of 0.2mm or 0.5mm, the rain sensor can accurately capture every precipitation change with a measurement error of only ±0.32mm.The ATO tipping bucket rainfall sensor supports a variety of communication outputs to ensure the stability of data transmission for remote monitoring and is suitable for the integration of large-scale monitoring systems. The rainfall intensity range of the sensor is 0~4mm/min, and it can withstand a maximum rainfall intensity of 8mm/min. It operates in a wide temperature range to meet the application requirements under different climatic conditions.

    Specification

    RS485
    Model ATO-SN-YL-N01-3002
    Caliber φ200mm
    Cutting Angle 40°~45
    Resolution 0.2mm/0.5mm optional
    Measurement Error ± 0.32mm (Simulated rainfall 4mm/min)
    Rain Intensity Range 0~4mm/min (Maximum allowable rainfall 8mm/min)
    Communication 485 communication (standard ModBus-RTU protocol)
    Maximum Power Consumption 0.24W
    Operating Temperature 0~55°C
    Working Humidity <95% (40℃)
    Power Supply Range 4.5~30V
    Pulse
    Model ATO-SN-YL-PL-3002
    Communication Pulse Type
    Resolution 0.2mm/0.5mm (Optional)
    Working Temperature 0~55°C
    Working Humidity <95% (40℃)
    Storage Temperature -40~125°C
    Storage Humidity <80% (no condensation)
    Measurement Error ±0.32mm (simulated rainfall 4mm/min)
    Rain Intensity Range 0~4mm/min (Maximum rainfall allowed to pass 8mm/min)
    Withstand Voltage ≤100V
    Withstand Current ≤0.5A
    Analog
    Model ATO-SN-YL-3002
    Communication 4-20mA/0-2V/0-5V/0-10V
    Rain Sensor Tube Diameter φ200mm
    Resolution 0.2mm/0.5mm (Optional)
    Cutting Angle 40°~45°
    Operating Temperature 0~55°C
    Working Humidity <95% (40℃)
    Storage Temperature -40~125°C
    Storage Humidity <80% (no condensation)
    Measurement Error ±0.32mm (indoor artificial precipitation, based on the instrument's own body water amount)
    Rain Intensity Range 0~4mm/min (allowed to pass the maximum rainfall 8mm/min)
    Measurement Range 0~100mm
    Maximum Power Consumption 0.24W
    Power Supply Range 10~30V


    Features

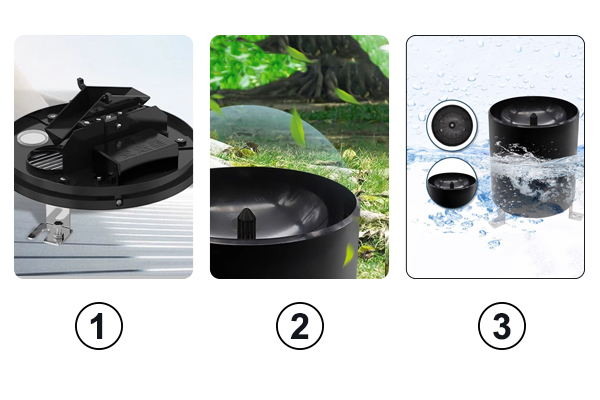

    1. Tipping bucket rain gauge sensor featureABS Tipping Bucket: The supporting system of the tipping bucket parts is well-made, with small friction torque, thus the tipping bucket turns over sensitively, with stable performance and reliable work.
    2. Self-washing Dust: three-dimensional streamlined design, and the design of the sagging curved surface deflector tip of its shape beautiful and smooth, better water turning performance and easy to clean and maintain.
    3. Anti-mess Clogging: The internal black pagoda head can effectively prevent leaves and other debris from clogging the rainfall sensor.

    Dimensional Drawing (unit: mm)

    Tipping bucket rain gauge sensor sizeInstallation

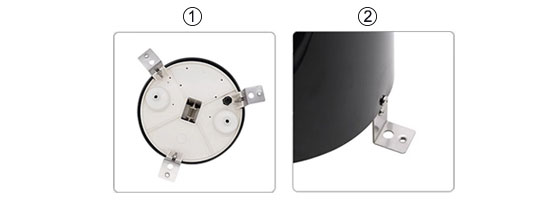

    1. Tipping bucket rain gauge sensor installationIndoor Installation: Take out the pearl cotton block at the bottom of the rain sensor and then install the supporting block to the bottom of the instrument.
    2. Outdoor Installation: In the cement foundation to play 3 Ф10 depth of 8 ~ 10cm mounting holes, will be placed in the installation of expansion bolts in the mounting holes, with the lock nut locking, and then the rain sensor base installed in the 3 height support nut, by adjusting the height of the support nut and use a level ruler to measure the ring whether the mouth is at the level of the state, and finally with the top of the locking will be fixed instrument.

    Tips: Tipping bucket rain gauge sensor simulated precipitation test

    If the rainfall sensor in the operation of the process found that the instrument measurement accuracy is too poor, should again be artificial simulation of precipitation test, re-adjust the rainfall sensor, the method is as follows:

    1. Test tools: 1 special rainfall measuring cylinder, 1 small dropper
    2. Check before the test: Before the test, remove the outer cylinder to check whether the instrument level bubble is centered, whether the flip bucket is flexible, no stagnation phenomenon, and check whether the water circuit is smooth, and then use water to the rain bearing mouth, water funnel to be fully wetted.
    3. Water injection test: use double-speed drip method to check the measurement accuracy of the instrument.
      With a special rain measuring cylinder to measure 10mm of water, through the diversion funnel slowly poured into the tipping bucket, to be turned over when the tipping bucket, that is, to stop injecting water, and then use the dropper to suck a number of cylinder of water, drop by drop to join the tipping bucket until the tipping bucket turn over, and so on repeatedly, recording the number of times the tipping bucket turn over with the amount of consumed water; if the tipping bucket turn over 20 times, the amount of consumed water for 9.7~9.85mm, then it can be recognized as the apparatus The tipping angle of the tipping bucket base point is normal, do not have to be adjusted.
    4. When the amount of water>9.85mm, indicating that the tipping angle of the bucket is too large, the curve left, should be appropriate to improve the height of the adjustment screw; when the amount of water < 9.7mm, indicating that the tipping angle of the bucket is too small, the curve right, should be appropriate to reduce the height of the adjusting screw; in general, the left and right adjusting screw each turn, that is, the accuracy of the change of 3~4% or so.
