Double Acting Tie Rod Hydraulic Cylinder, 20 inch (500mm) Stroke

$164.89

ATO tie rod hydraulic cylinder is widely utilized in various industrial applications, including construction equipment, agricultural machinery, and manufacturing processes. It comes with a tie rod design construction ensuring durability and stability under heavy loads. 20 inch (500mm) stroke, available in bore diameter 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, push fore from 1 ton to 5.5 ton.

Bore Diameter *
Shaft Type *
Shaft Joint Type *
Installation Method *

SKU: ATO-TRHC-500MM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

20 inch (500mm) stroke tie rod hydraulic cylinder is a vital component in hydraulic systems, designed to convert fluid power into linear mechanical force. The tie rod design allows for easy maintenance and cost-effective repairs.

Specification

Model	ATO-MOB-32500	ATO-MOB-40500	ATO-MOB-50500	ATO-MOB-63500	ATO-MOB-80500	ATO-MOB-100500
Acting Type	Double Acting
Stroke	20 inch (500mm)
Pressure Range	0.3~7.0Mpa (3~70kg/cm²)
Temperature Range	-10~+60℃
Installation Method	Front Flange Type, Rear Flange Type
Shaft Type	Outer Teeth, H Slot, Inner Teeth
Shaft Joint Type	Y-joint, Y with PIN, I-Joint, Floating Joint, T-Joint, Adjustable Nut
Working Media	Filtered Oil
Speed Range	8~300mm/sec
Bore Diameter	φ32mm	φ40mm	φ50mm	φ63mm	φ80mm	φ100mm
Push Force	0.62 ton	1 ton	1.3 ton	2.2 ton	3.5 ton	5.5 ton

Note: If you need to customize tie rod hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Double acting tie rod hydraulic cylinder dimension

Bore Diameter	Φa	Φb	C	D	DE	E	F	G	H	PT	S	Z
Φ32	32	16	M14*P1.5	50	36	28	13	15	25	1/4"	50	128
Φ40	40	20	M16*P1.5	64	45	28	17	20	30	3/8"	50	147
Φ50	45	20	M16*P1.5	70	50	28	17	20	30	3/8"	50	147
Φ63	55	25	M22*P1.5	85	60	40	20	30	31	3/8"	50	162
Φ80	62	30	M26*P1.5	106	74	40	20	32	36	1/2"	55	179
Φ100	78	35	M30*P1.5	122	89	45	20	32	37	1/2"	80	206

Detail

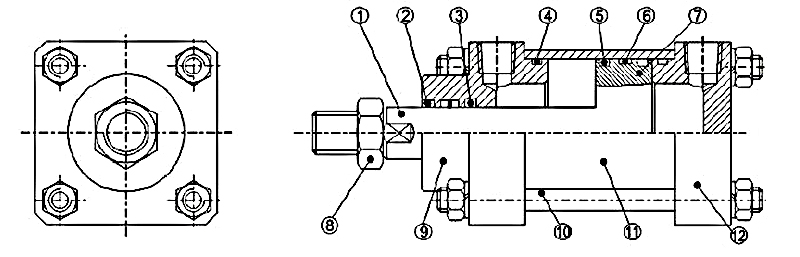

Double acting tie rod hydraulic cylinder detail

NO.	Part	Quantity	NO.	Part	Quantity
1	Piston Rod	1	7	Piston	1
2	Dust Wiper	1	8	Rod Nut	1
3	Rod Packing	1	9	Rod Plate	1
4	Gasket	2	10	Fixed Tie Rod	4
5	Piston Packing	2	11	Cylinder Tube	1
6	Wearing Ring	1	12	End Cover	1

Tips: What factors should be considered when selecting a tie rod hydraulic cylinder?

When selecting a tie rod hydraulic cylinder, several crucial factors must be considered. Firstly, the cylinder's maximum operating pressure and bore size should align with the specific application requirements to ensure optimal performance. The stroke length must be compatible with the range of motion needed. Consideration of mounting options and dimensions is vital for seamless integration into the existing system. Material selection is crucial, with attention to the cylinder tube, rod, and seals for durability and corrosion resistance. Additionally, evaluating the cylinder's speed and force capabilities in relation to the application's demands is essential. Lastly, factors such as temperature, environmental conditions, and compliance with industry standards should be taken into account to guarantee reliability and longevity in diverse operating environments.
