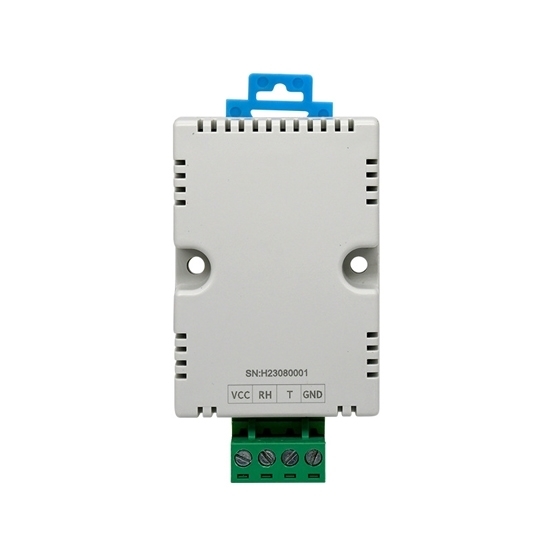

Temperature and Humidity Transmitter, Rail Type, RS485/0-5V/0-10V

Temperature and humidity transmitter direct sale, rail type, designed for measuring temperature and humidity in scientific research, chemical industry, environmental protection, medical and health, food and other occasions. The temp and humidity sensor is available in 0~50℃ or -40~+60℃ temperature range and RS485/0~10V/0~5V signal output.

Specifications

• Model: ATO-AGH4
• Output: RS485/0~10V/0~5V
• Humidity Measuring Range: 0~99.9%RH
• Humidity Accuracy:±3%RH
• Humidity Resolution:0.1%RH
• Humidity Long-Term Stability: <0.5%RH/Year
• Humidity Response Time: T63%< 8s
• Temperature Measuring Range: 0~50℃/-40~+60℃
• Temperature Accuracy: ±0.5℃
• Temperature Resolution: 0.1℃
• Temperature Long-Term Stability: <0.1℃/Year
• Working Voltage: 12~32V DC
• Working Environment Temperature: -40~+60°C
• Working Environment Humidity: 0~99.9% without Condensation
• Recommended Storage Temperature: 0~50℃
• Recommended Storage Humidity: 20~60%RH
• Power On Time: 3s
• Product Power Consumption: <20mA (When Powered By 15V DC and No Output Current.)

Details

Applications

This rail-type temperature and humidity transmitter is widely used in meteorology, national defense, scientific research, post and telecommunications, tobacco, chemical industry, medical and health, hotels, food and other occasions where air temperature and humidity need to be measured and controlled.

Tips: What is a rail-type temperature and humidity transmitter?

A rail-type temperature and humidity transmitter is a specialized device used in industrial and rail transport applications to monitor and transmit temperature and humidity data. The term "rail-type" indicates that the device is designed to be mounted onto a standard rail, commonly used in industrial settings for easy installation and maintenance.

The transmitter typically includes sensors to measure both temperature and humidity accurately in the environment where it is placed. These sensors capture the relevant data, which is then processed and converted into electrical signals. The transmitter then sends these signals to a central monitoring system or control room through wired or wireless communication protocols.

Rail-type temperature and humidity transmitters are crucial in industries like manufacturing, transportation, and logistics where precise environmental conditions need to be maintained for optimal operation and safety. For example, in rail transport, it's essential to monitor conditions within freight or passenger compartments to ensure that temperature and humidity levels are within specified ranges to protect sensitive cargo or provide comfort to passengers.

Overall, these transmitters play a vital role in maintaining operational efficiency, safety, and quality control by providing real-time data about temperature and humidity conditions in critical environments.
