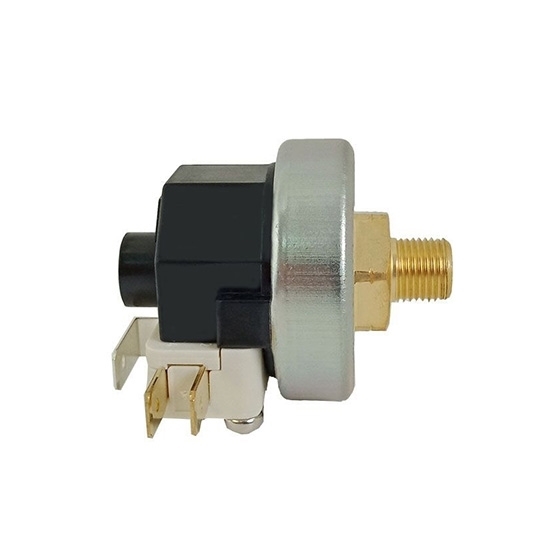

Steam Pressure Switch, 0.2 to 9.0 Bar

Steam pressure switches are designed to control pressure and have a larger current capacity. It uses a high-quality micro switch, and the switching action is facilitated by a diaphragm. The switch is factory-set but can be adjusted on site. It is available in SPST or SPDT contact form and switches dead zone (also known as mechanical differential or hysteresis). It is widely used in steam cleaners, steam irons and other pressure control systems.

Specification

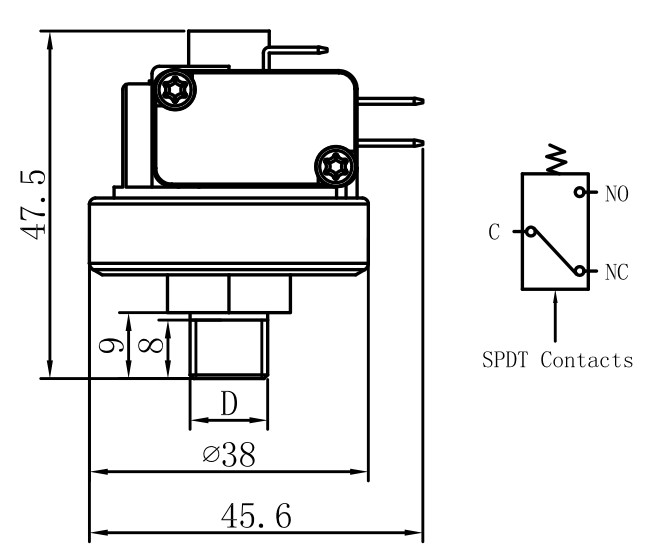

Dimension (mm)

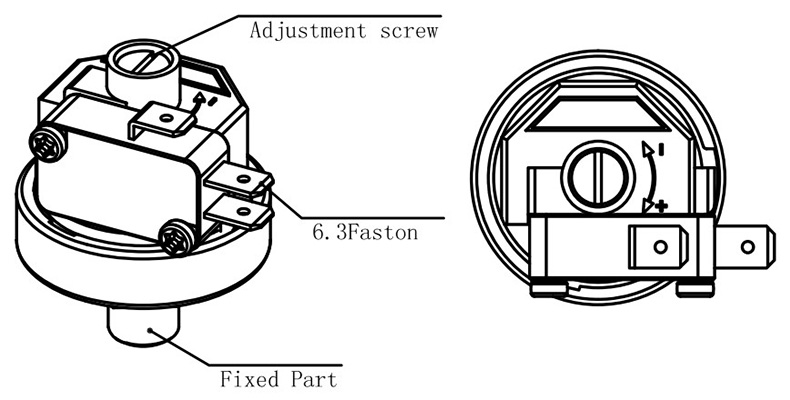

Details

Tips: What is a steam pressure switch?

A steam pressure switch is a crucial device used to monitor and regulate the pressure within steam-powered systems, such as steam cleaners, steam irons, and industrial boilers. It operates by sensing the steam pressure and activating or deactivating the system when the pressure reaches a pre-set threshold, ensuring that the system operates safely and efficiently. By maintaining the pressure within the desired range, the switch helps prevent overpressure or underpressure situations, which could damage the equipment or compromise performance. Widely used in residential and industrial applications, the steam pressure switch ensures stable and safe operation of steam-based equipment.
