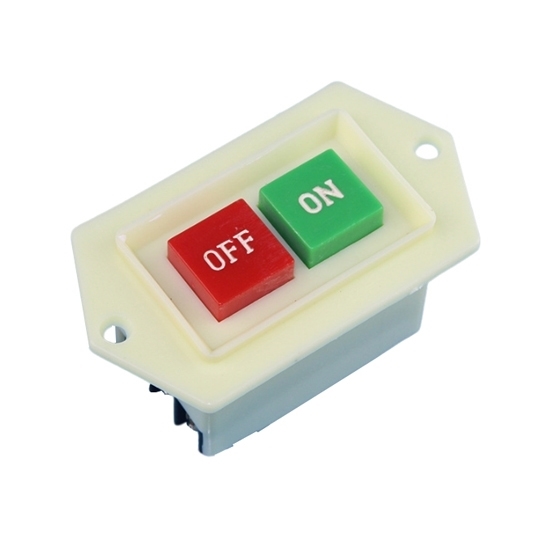

3 Phase Start Stop Push Button Switch, On/Off

ATO start stop push button switch is a manual control device used to start or stop the operation of electrical equipment or machinery. This on/off power push button switch is widely used in industrial settings to control machinery, conveyors, pumps, and other automated systems.

Specification

• Model: ATO-LC3-5/10
• Mounting Hole Distance: 75mm
• Rated Current: 6A
• Voltage: 3-phase 380V
• Applications: Bench Drill, Grinder, Cutting Machine, etc.

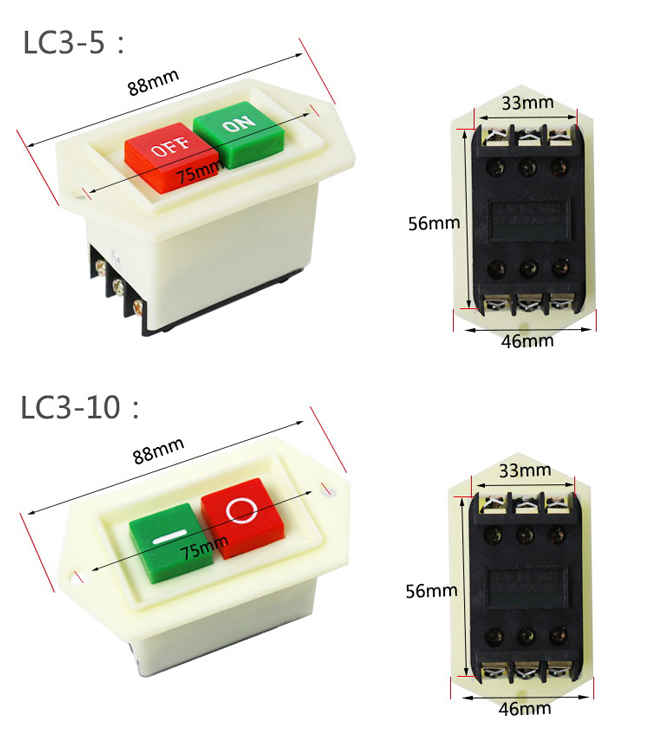

Dimension

Tips: How does a start stop push button work?

A start stop push button is a control mechanism commonly used in industrial machines and automation systems to start or stop operations. It consists of two buttons: a "start" button (normally open contact) and a "stop" button (normally closed contact).

• Start button: When pressed, it closes the circuit, allowing electrical current to flow and energizing the connected relay or contactor, which powers the machinery or process.
• Stop button: This button, when pressed, breaks the circuit by opening the normally closed contact, cutting off power to the relay or contactor, and stopping the machine.

These buttons work in conjunction with relays or motor starters to control larger loads. The design ensures safety, as machines stop immediately when the stop button is pressed, and they only start upon manual action. The system typically includes interlocks to prevent accidental restarts.
