Features

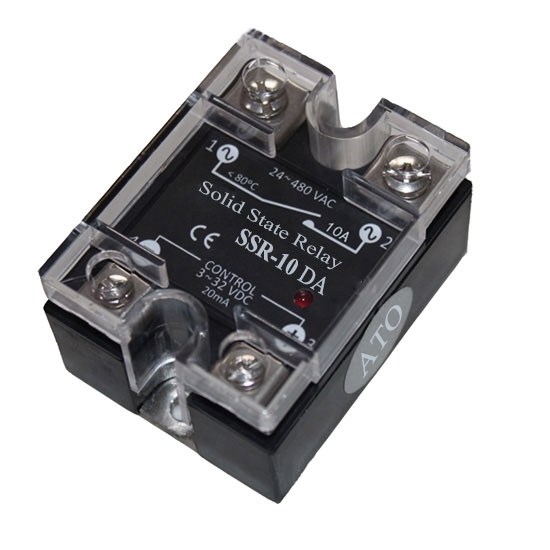

10A 3-32V DC to AC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.
- Built in RC absorption
- Photoelectric isolation
- SCR output
- LED indicator for operation status
- Removable protective cover for safety
- Panel mount
- Zero-crossing switch type
Specification
Model |
ATO-SSR-DH10DA |
Input |
Control voltage range |
3-32V DC |
Max. input current |
12mA |
Must operate voltage |
2.8V DC |
Must release voltage |
1.5V DC |
Output |
Load voltage range |
24-480V AC |
Peak voltage |
800V AC |
Maximum load current |
10A |
Maximum off-state leakage current |
2mA |
Maximum off-state time |
10mS |
Maximum on-state voltage drop |
1.5V |
General |
Type |
DC to AC, single phase |
Dimension L – W – H (mm) |
57.4х44.8х28 |
Weight |
100g |
Dielectric strength (input to output) |
4000V |
Dielectric strength (input, output to the base) |
2500V |
Operating temperature |
-20℃~ 80℃ |
Mount |
Panel |
Certification |
CE |
Note:
- When the load is a resistive load, the maximum load current of the selected SSR should be 2~3 times greater than the actual load current;
- When the load is an inductive load, the maximum load current of the selected SSR should be more than 7~8 times the actual load current.
- When the maximum load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.
Heat Sink
Product Name |
Heat Sink for SSR |
|
Material |
Aluminum |
Dimension |
Roof Size: 60 x 50mm Foot Size: 80 x 50mm Height: 50mm |
Mounting Size |
Mounting Hole Diameter: 3mm Threaded Hole Distance: 48mm |
Weight |
115g |
Application |
≤15A single phase SSR solid state relay |
Dimension (Unit: mm)
Wiring Diagram
Tips: What are the differences in the use of zero-crossing SSR and random turn-on SSR?
The zero-crossing solid state relay is used as a switch on/off. In terms of the switch function, it is equivalent to an ordinary relay or contactor. The solid state relays we usually talk about are mostly zero-crossing type (zero-crossing SSRs can only be used as an on-off switch, not for voltage regulation).
Random turn-on SSRs are mainly used for chopper control. But the control signal of the random turn-on SSRs must be synchronized with the grid and rise with square signals ranging of 0º-180º to realize voltage regulation which, however, fails under the circumstance of a single voltage signal or 0-5V analog signal. From the voltage regulation function point of view, random turn-on SSRs are completely different from ordinary relays or contactors. It must be emphasized that devices used in the all kinds of voltage regulator module or solid state relays as an output contactor are SCRs, and achieve the purpose of voltage regulation relying on changing the operating angle of SCRs. Therefore, the output voltage waveforms are sine waves with unfilled corners (different from the full sine wave from the autotransformer output), and accordingly, there are higher harmonics and certain noises, and the grid has some pollution.
