    Smart Temperature Transmitter, RTD/Thermocouple/Resistance/Voltage

    5 out of 5 based on 3 reviews | Write a review
    $60.39
    Smart temperature transmitter supports various input signal, such as RTD, thermocouple, resistance and voltage signal, using PAD or PC for configuration freely, automatically adjusting input signal type, measuring range and thermocouple cold junction compensation, optional HART communication function, with high accurate, low temperature drift, long service life, and easy to replace.
    *
    *
    *
    *
    SKU: ATO-TEMPT-ST500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Temperature transmitter supports RTD, thermocouple, resistance and voltage input signal.
    Note: If you customize the sensor input type, the USB cable needs to be purchased.

    Specification:

    Model ATO-TEMPT-ST500
    Accuracy ≤0.1%FS
    Power supply DC 12-40V
    Input signal* RTD (PT100, Cu50), thermocouple (B/E/J/K/N/R/S/T), resistance, voltage (mV)
    Output signal * 4-20mA, 1-5V
    Digital communication * Hart protocol (optional)
    Response time ≤1s
    Working temperature -40~+85℃
    Ingress protection 4g^2-150Hz
    Settable parameter Input signal, measuring range, cold junction compensation (automatic adjusting)
    Configuration PAD or PC

    Input signal and measuring range chart:

    Type of sensor Measuring range Minimum measuring range Connection type
    PT100 -200~+850℃ 10K 3-wire
    Cu50 -50~+150℃ 10K 3-wire
    B 400~+1820℃ 500K 2-wire
    E -100~+1000℃ 50K 2-wire
    J -100~+1200℃ 50K 2-wire
    K -180~+1372℃ 50K 2-wire
    N -180~+1300℃ 50K 2-wire
    R -50~+1760℃ 500K 2-wire
    S -500~+1760℃ 500K 2-wire
    T -200~+400℃ 50K 2-wire
    Resistance transmitter 0~4500Ω 10Ω 2-wire

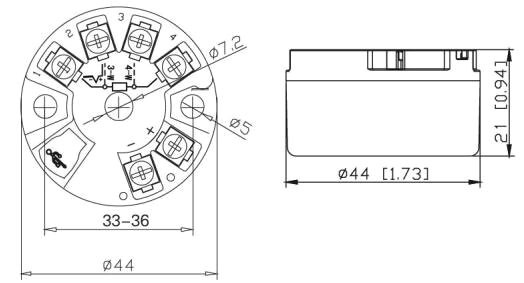

    Dimensional drawing (unit: mm):
    Smart temperature transmitter dimensional drawing

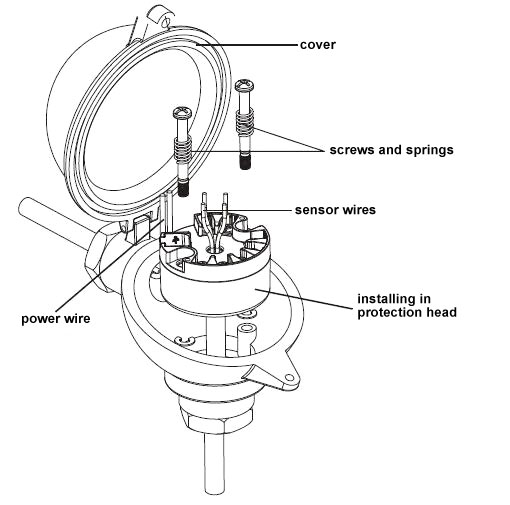

    Installation diagram:
    Smart temperature transmitter installation diagram
    Wiring diagram:
    Smart temperature transmitter wiring diagram
    Tips: Common faults for a temperature transmitter

    1. There's no change at the transmitter output when the temperature of the measured medium increases or decreases. This is mostly caused by the seal of the temperature transmitter, perhaps the temperature transmitter is not sealed well, or when it is welded, a small hole is bored on the sensor accidentally. In this case, the solution is to replace the transmitter shell.
    2. The output signal is instable. This may be caused by the temperature source itself. The temperature source doesn't have stable temperature. If the instrument can't display stably, then it doesn't have enough anti-interference ability.
    3. Output error of the temperature transmitter is large. Many reasons may cause this problem, such as the thermal resistance wire of the selected temperature transmitter is incorrect, thus leading to measuring range error. Or the temperature transmitter is not correctly calibrated when it left the factory.
    Existing reviews of Smart Temperature Transmitter, RTD/Thermocouple/Resistance/Voltage
    Clever Temperature Transmitter
    We have a requirement to read RPM from this smart temperature transmitter. The manual is not clear on how to read the output from the drive to get a usable signal that can represent the motor rpm. Where I can get more information on how to read an output from the controller to get us to a motor RPM,?
    From: Erickaa | Date: 16/06/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please refer to this communication protocol: https://www.ato.com/Content/doc/bldc-controller-rs485-communication-protocol.pdf
    Video reference: https://www.youtube.com/watch?v=_vizSqQl5K0&list=PLlo8RulDRntiNzrfotgQ14OfL1kmcKALg&index=1
    Precise Transmitter
    Our school's kitchen and storage room need this smart temperature transmitter to detect the indoor temperature more accurately. Considering the installation problem, I am a little worried about the USB cable.
    From: Jimmyy | Date: 16/06/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    This USB cable is used for configuration software and configuration parameters. But the software is only available in Chinese, You can send your temperature configuration requirements by email to support@ato.com, and our technicians will further assist you in using the transmitter.
    4-20mA temperature transmitter
    By consulting, the temperature transmitter and Pt100 RTD sensor should be used together, so we purchased them together. We chose the 4-20mA output temperature transmitter. The smart transmitter could directly convert temperature signal into current signal and record it. That's what we want.
