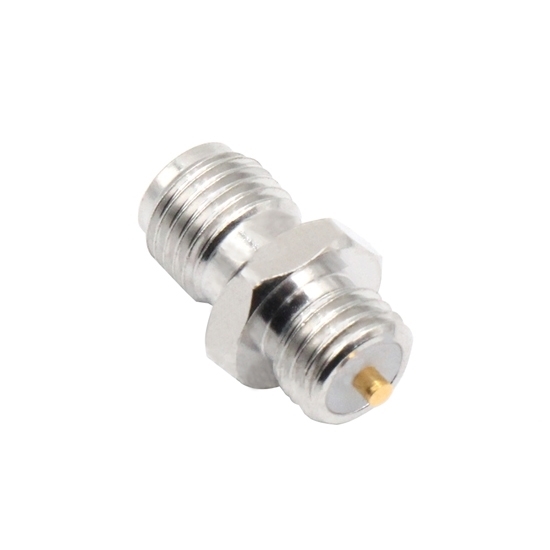

SMA Female Thread RF Connector for Antenna

SMA female (jack) RF coaxial connectors minimize signal loss and interference, enhancing signal clarity. Whether mounted on printed circuit boards (PCBs) or affixed at the cable end, these radio frequency right angle coax connectors play a crucial role in maintaining a reliable connection for television and communication systems, making them indispensable in modern electronic setups.

Specification

• Model: ATO-SMA-KYD19-8SD
• Frequency Range: DC~8GHz
• Standing Wave Ratio (VSWR): 1.10:1 (Max.)
• Impedance: 50 Ohm
• Insertion Loss: 0.18dB (Max.)
• Dielectric Withstand Voltage: 1000V
• Insulation Resistance: ≥5000 Ohm
• Connector Type A: SMA-Female
• Connector Type B: Detachable Thread
• Working Temperature: -55℃~+165℃
• Inner Conductor Material: Gold Plated Bronze
• Outer Conductor Material: Brass Plated with Ternary Alloy
• Insulator: PTFE
• Service Life: ≥500

Dimension (Unit: mm)

Tips: What is the role of RF connectors in antenna systems?

RF connectors play a crucial role in antenna systems by establishing secure and efficient connections between various components. These connectors facilitate the transmission of radio frequency signals between antennas and associated equipment, ensuring optimal signal integrity. The choice of RF connectors depends on factors like frequency range, power levels, and environmental conditions. They come in various types, including SMA, N-type, and BNC connectors, each suited for specific applications.

In antenna systems, RF connectors enable the seamless integration of antennas with transmitters, receivers, and other electronic devices. They provide a reliable interface that minimizes signal loss and interference. Properly chosen and installed RF connectors contribute to the overall performance and efficiency of the antenna system, ensuring the effective transmission and reception of signals in diverse applications such as communication, broadcasting, and navigation systems.
