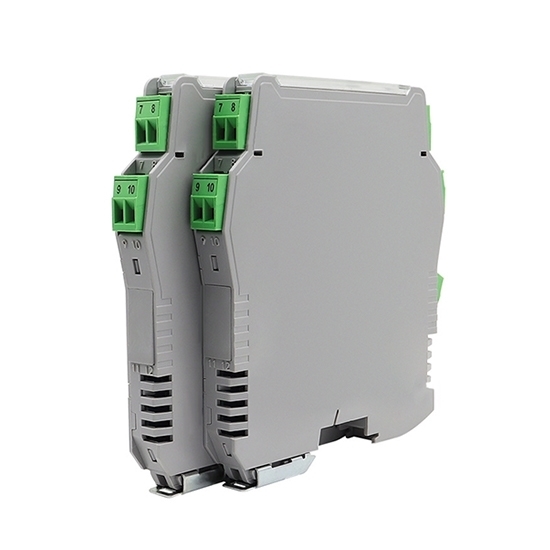

Signal Isolator Input/Output K/B/S/E/PT100/0-20mA/0-10V

5 out of 5 based on 1 reviews | Write a review

$101.07

Signal isolator ATO-TS-TR/TS-TC series is a universal signal isolator that can be customized with various active and passive input signals, such as thermocouple K/B/S/E type, RTD Pt100 . The output signals can be 0-20mA. Signal isolator has pluggable terminals, 12.5mm thickness, high accuracy 0.1%FS.

Number of Input & Output Channels *
Input Signal *
Output Signal *

SKU: ATO-SIGNI-402E

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The signal isolator can convert the input signal into 0~20mA/0~10V output signal.

Specification:

Model	ATO-TS-TR/TS-TC
Dimension	106.512.5115mm
Input signal	thermal resistor, resistor, potentiometer, thermocouple
Output signal	0~20mA, 0~10V
Number of input & output channels	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
Output load resistance	RL≤400Ω (output is current signal), RL≥10KΩ (output is voltage signal).
Power supply	DC 24V
Voltage range	DC 18~32V
Basic accuracy	±0.1%F.S or 0.2%F.S (20℃), subject to the actual object. Basic accuracy does not include cold end compensation error.
Temperature drift	±0.1%F.S/℃ (-20℃~+55℃)
Response time	≤1S (0-90%) (TYP)
Insulation strength	1500V AC/1min (between input, output and power supply)
Insulation resistance	≥100MΩ (between input, output and power supply)
Operating temperature range	-20~+55℃ (no condensation, no icing)
Electromagnetic compatibility	IEC61326-1
Communication output protocol	MODBUS-RTU
Communication distance	number of nodes ≤32, distance ≤1000m
Installation	35mm DIN rail

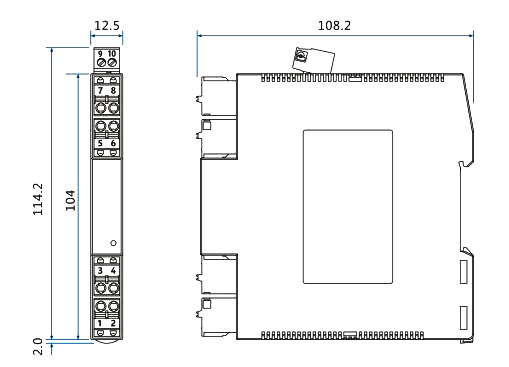

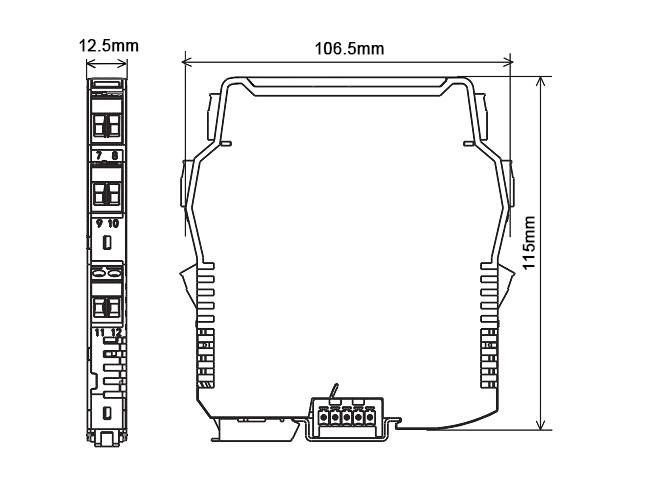

Dimensional drawing (unit: mm):
signal isolator input output k pt100 0-20ma 0-10v dimension

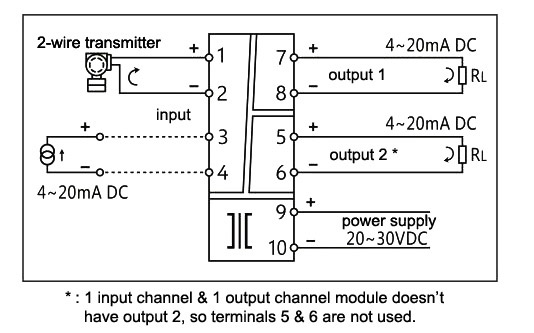

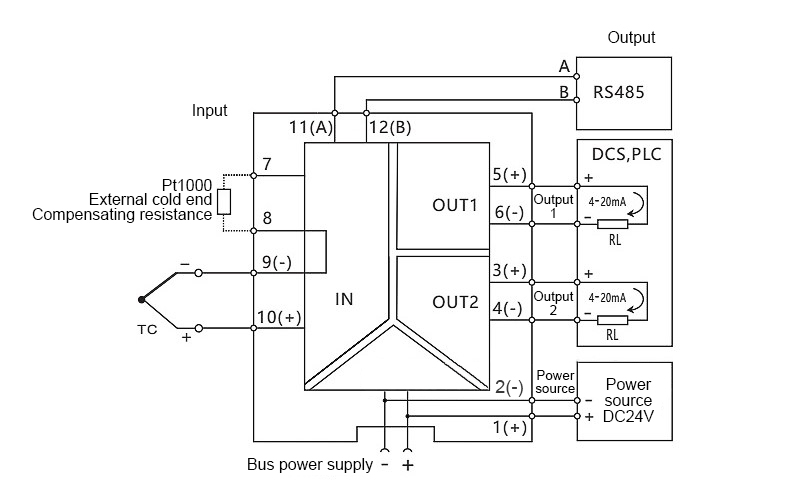

Wiring diagram:
