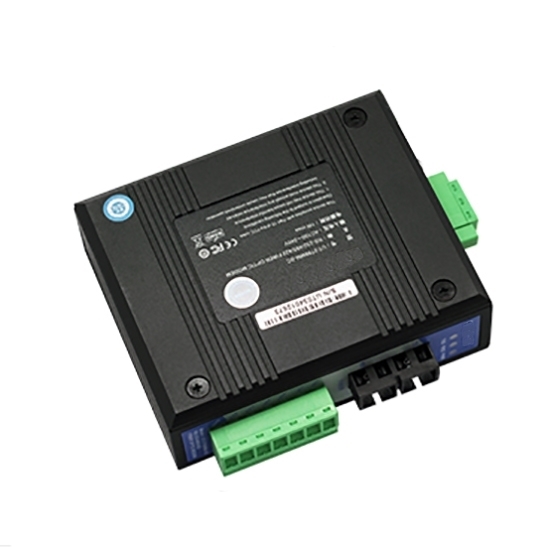

Serial to Fiber Converter

5 out of 5 based on 1 reviews | Write a review
$182.70
High performance serial to fiber converter supports RS-232 asynchronous protocol, the fiber converter with transmission rate 460 kbps, supports maser-slave mode, transmission distance 4000m (multimode mode), 20000m (single mode), operating wavelength 1310 nm. The fiber optic converter is suitable for power system automation, traffic control and other departments.
*
SKU: ATO-UT-2788SM
30-day Returns
Free Shipping
Delivery date: 6-12 days

Cost-effective serial to fiber optic converter with AC/ DC100-240V, 1W input voltage, RS 232 has standard 3 bits ±15kV ESD protection, as high as 115.2kbps transmission rate, RS485/ 422 has auto negotiation, no need switch setting, ±15kV ESD protection.

Specification

Model ATO-UT-2788SM
Port RS232/ RS485/ RS422 ports
Asynchronous transmission Point to point, 460kbps
Transmission distance 4000m (multimode mode), 20000m (single mode)
Operating temperature -40-85
Operating wavelength 1310 nm
Interface RS232/ RS485/ RS422: Terminal block; fiber port: optional SC/ FC/ ST
Input voltage AC/ DC100-240V, 1W
RS-232 Standard RS-232 3 bits ±15kV ESD protection, as high as 115.2kbps transmission rate
RS-485/ 422 Auto negotiation, no need switch setting, ±15kV ESD protection
Certificate CE
Warranty 12 months

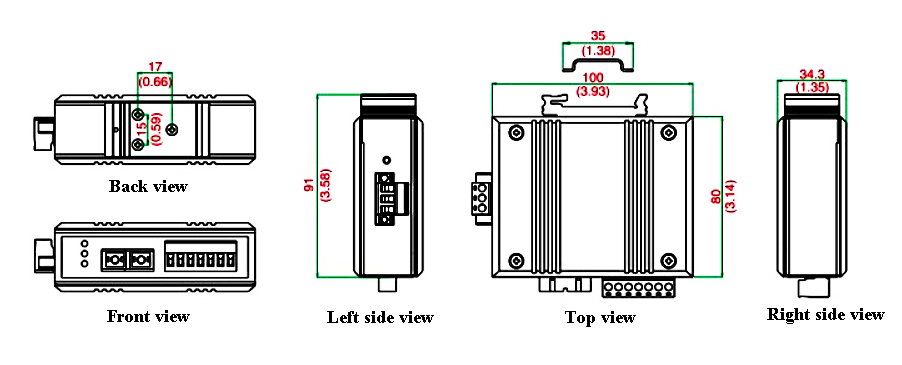

Dimension (inch/ mm)

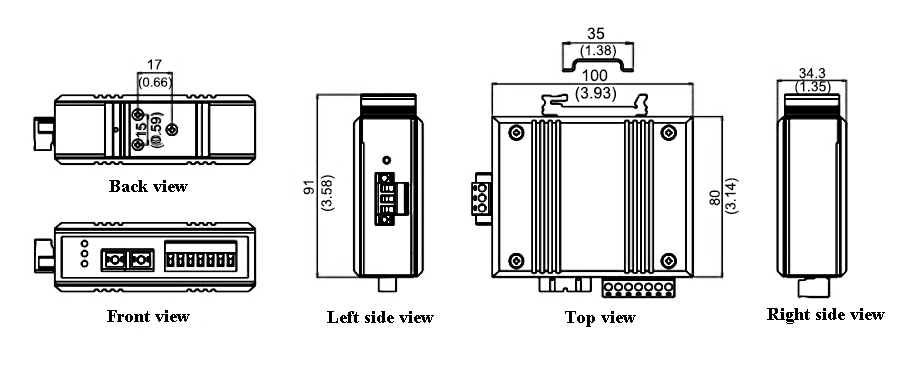

Dimension of serial to fiber converter

Tips: Features of Fiber Converter.

1. Two forms of power interface are provided at the same time, terminal method and socket method, whichever can be connected in actual use.
2. Provide power and signal direction (← and →) three indicator lights to facilitate users to check the communication status.
3. The shell is made of metal and iron, which is sturdy and durable. It can be installed on a panel or on an industrial rail.
4. Optical fiber interface adopts dual FC (FIBER-TX, FIBER-RX) interface.
5. The physical interface of the serial port is in the form of 12-hole binding posts.
6. The serial port provides RS232, RS422 and RS485 three interfaces at the same time, which has a wider application range.

Existing reviews of Serial to Fiber Converter
Great converter at a great price!
If you need media converters I would recommend buying these. They work perfectly and are plug and play right out of the box. The devices were easy to set up and use, and we've had no issues.
From: Kenny | Date: 25/03/2022
