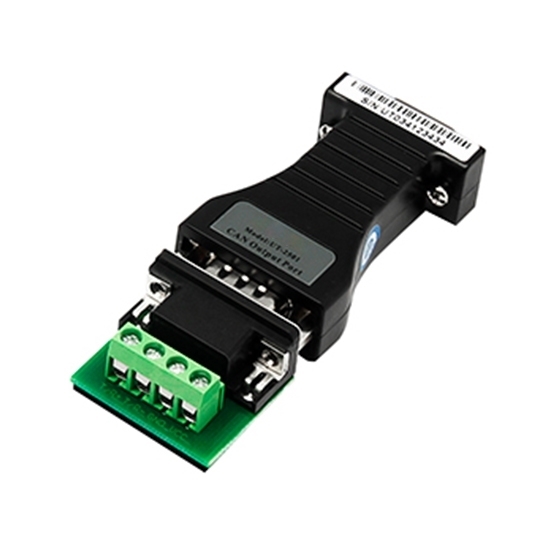

RS232 to CAN BUS Converter

5 out of 5 based on 2 reviews | Write a review

$100.94

Cheap price RS232 to CAN BUS converter online for sale, which with RS-232 female, CANBUS DB9 male, terminal block, asynchronous half-duplex working mode, twisted-pair or shielded cable transmission media. It is widely used in point-to-point RS-232 communications, RS-232 remote control systems, program-controlled exchange billing terminals, and satellite receivers.

SKU: ATO-UT-2501

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Factory price RS232 to CAN BUS adapter 300BPS-115.2KBPS baudrate, more than 1,200m (CANBUS port), 5m (RS-232 port) transmission distance. It is small in size and has no special requirements for wires and it is very convenient to use.

Specification

Model	ATO-UT-2501
Standards	EIA/TIA RS-232C, CANBUS
Interface	RS-232 female, CANBUS DB9 male, terminal block
Working mode	Asynchronous half-duplex
Transmission media	Twisted-pair or shielded cable
Baudrate	300BPS-115.2KBPS
Dimension	63mm33mm17mm
Operating temperature	-40℃ to 85℃
Relative humidity	5% to 95%
Transmission distance	More than 1,200m (CANBUS port), 5m (RS-232 port)
Certificates	RoHS, CE, FC
Warranty	12 months

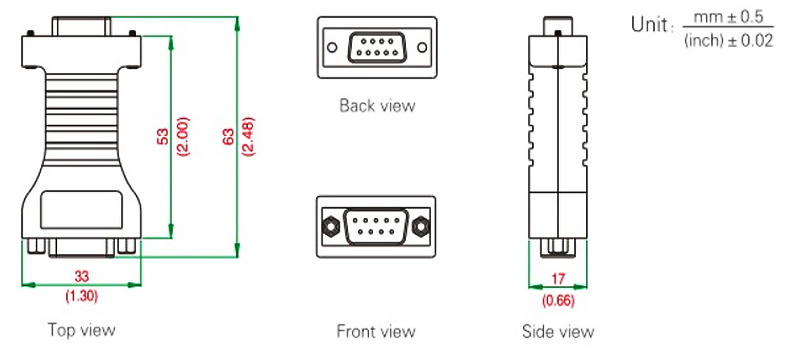

Dimension (mm/ inch)

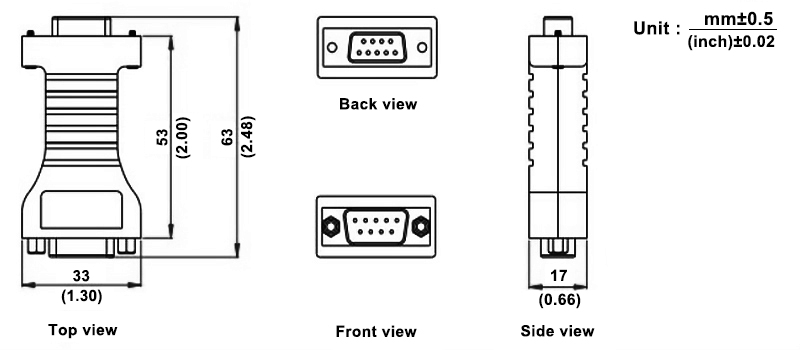

Dimension of RS232 to CAN BUS converter

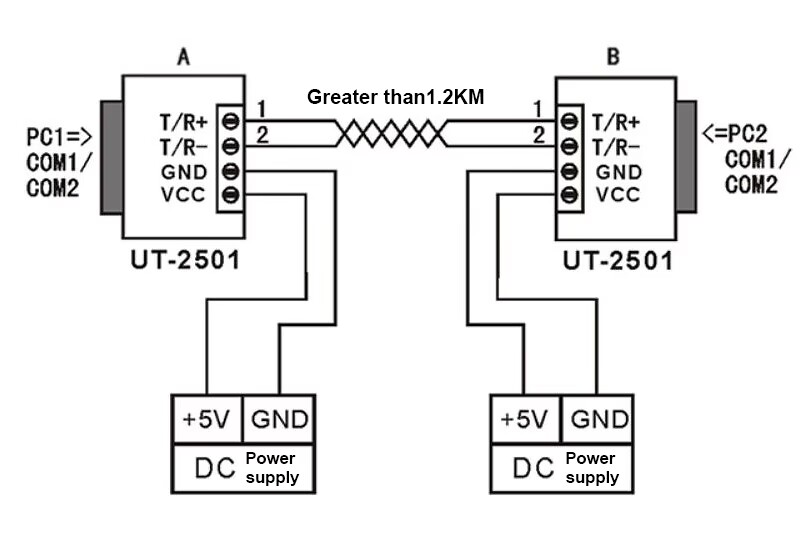

Connection Diagram

Details

Tips: What is CAN Bus?

CANBus means CAN bus, also known as controller area network. It is currently the most widely used industrial field bus. The car you drive at home generally uses CAN bus as a control system. As a control system, it must have corresponding usage rules. This usage rule is called the communication protocol of the bus. This is similar to when we speak, we have to follow the corresponding grammar. If you say that Chinese follows the English grammar, it will be very awkward. Therefore, when we use the CAN bus for work, we must follow the relevant CAN bus communication protocol.

Existing reviews of RS232 to CAN BUS Converter

Cheap and useful converter!

The device has effectively allowed us to integrate various CAN bus systems and protocols in our industrial automation applications. Easy to install and operate, reliable and durable!

From: Maxwell | Date: 20/02/2023

Was this review helpful? Yes No (0/0)

Cheap and works great. Good customer service

It arrived earlier than expected. Good quality Converter. As soon as it arrived, the seller sent me the software package and showed me how CAN systems work and how to use the software. Thanks!

From: George | Date: 27/03/2022
