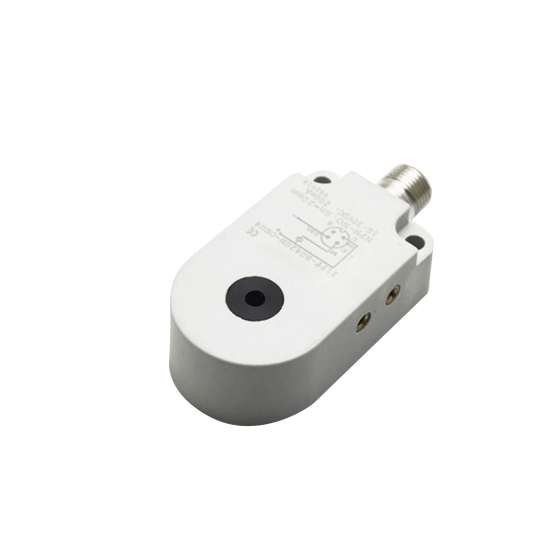

Inductive Proximity Sensor, Ring Type, 6mm, NPN

Write a review

$124.60

Cheap price inductive proximity sensor online for sale, with 6mm ring diameter, DC24V/ AC110V/ AC230V output voltage can be chosen, NPN/ PNP/ 2 wire three output types for selection. Ring type proximity sensor is generally used to detect small objects, such as blanking detection, small steel balls, small springs, small rivets, metal wire breakage, wire breakage detection.

Output Form *
Lead Wire *

SKU: ATO-RTPS-T6

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Factory price NPN proximity sensor with two direct lead wire/ M12 connector two lead wire types, IP67 protection grade, 500Hz response frequency and 10-36V/ 90-250V operating voltage. Proximity sensor has advantages of high resolution, high accuracy, strong impact resistance, short response time, accurate detection, durability and long service life.

Features
• Multiple sensing options for a wide range of applications.
• Cable or micro quick-disconnect styles provide flexibility.
• Adjustable sensitivity on some models.
• Reverse polarity, short circuit & overload protection.

Specification

Model			ATO-RTPS-41400	ATO-RTPS-41450
Lead wire types			Direct lead wire	M12 connector
Mounting			Embedded
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/ 4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Ring Diameter			6mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Weight			1kg
Certificates			CE, RoHS
Warranty			12 months

Dimension: (mm)

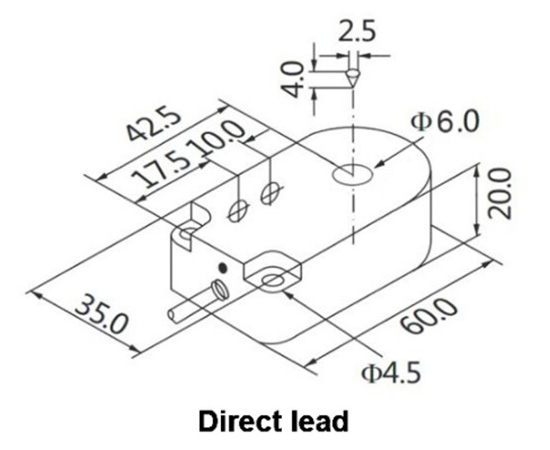

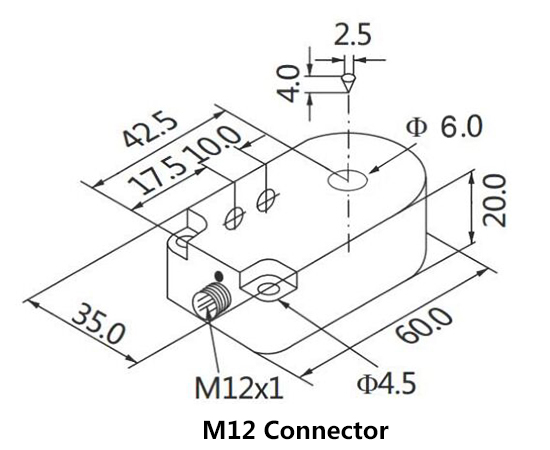

Dimension of 6mm ring type proximity sensor of direct lead wire

Wiring diagram:

Wiring diagram of ring typr proximity sensor Wiring diagram of ring type proximity sensor

Tips: The Working Principle of Inductive Proximity Sensor.

The circular hole part of the ring type proximity sensor, that is the oscillator that detects the position, generates an alternating magnetic field. When the metal approaches, an eddy current is generated, the oscillation changes, and then a type of sensor that outputs a switch signal after being processed by the circuit. Ring proximity switches can be divided into two working principles, static and dynamic.

As long as the metal is within the scope of monitoring sensors can produce a continuous output signal. Thus, the sensor can be used to monitor the feeding process of falling screws or blocking state. Sensors are suitable for dynamic work particularly small member for monitoring the output of the sensor during a short pulse, the pulse can be set between 0.1 and 150ms, even if the metal stain appears on the tube, the sensor can still be maintained for a long time high resolution.
