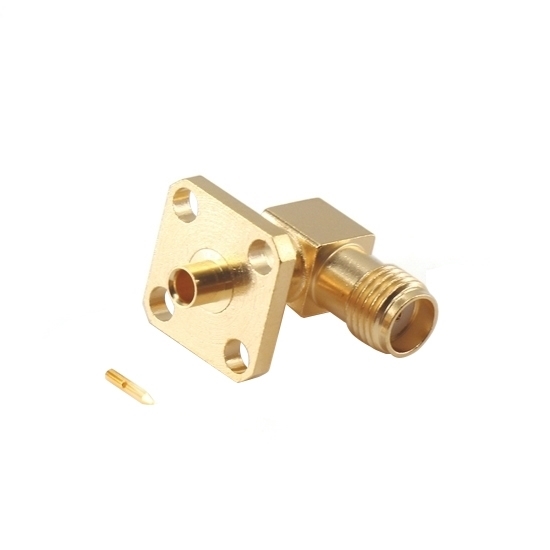

SMA Female Right Angle RF Coaxial Connector, Flange Mount

SMA female (jack) RF coaxial connectors are integral for connecting antennas to devices, offering a secure and stable connection. The right angle coax connectors are designed for flange surface mounts, playing a crucial role in ensuring efficient and high-quality signal transmission in various electronic systems.

Specification

• Model: ATO-SMA-KWFB2-TD
• Frequency Range: DC~18GHz
• Standing Wave Ratio (VSWR): 1.20:1 (Max.)
• Impedance: 50 Ohm
• Insertion Loss: 0.25dB (Max.)
• Dielectric Withstand Voltage: 1000V
• Insulation Resistance: ≥5000 Ohm
• Connector Type A: SMA-Female
• Connector Type B: Cable Assembly
• Working Temperature: -55℃~+125℃
• Inner Conductor Material: Bronze Plated Gold Plated
• Outer Conductor Material: Stainless Steel Passivated
• Insulator: PTFE
• Service Life: ≥500

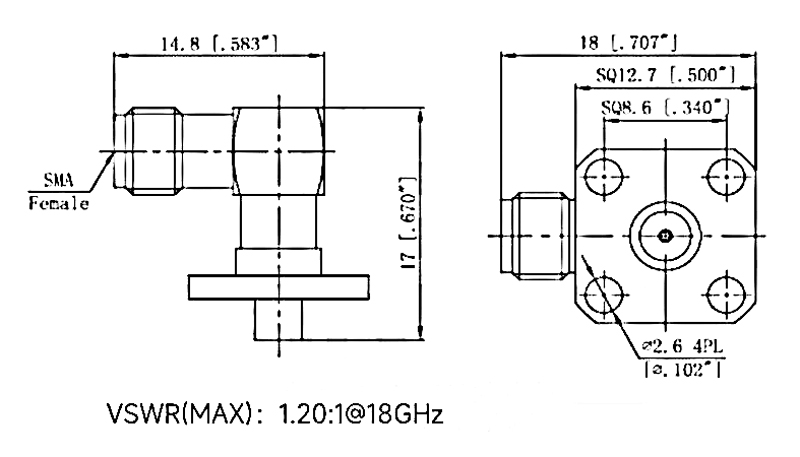

Dimension (Unit: mm)

Tips: Can RF coaxial connectors be used for both analog and digital signals?

Yes, RF coaxial connectors are versatile and can be used for both analog and digital signals. These connectors provide a reliable means of transmitting radio frequency signals, which encompass both analog and digital communication. The characteristic impedance and shielding properties of coaxial connectors make them suitable for carrying a wide range of frequencies, accommodating the requirements of both analog and digital systems.

In analog applications, coaxial connectors effectively carry continuous, varying signals, ensuring minimal signal loss and interference. For digital signals, these connectors maintain signal integrity by preventing signal degradation and electromagnetic interference. The standardized design of coaxial connectors, such as the widely used SMA or BNC connectors, contributes to their compatibility with various devices and systems, allowing seamless integration in both analog and digital communication setups.
