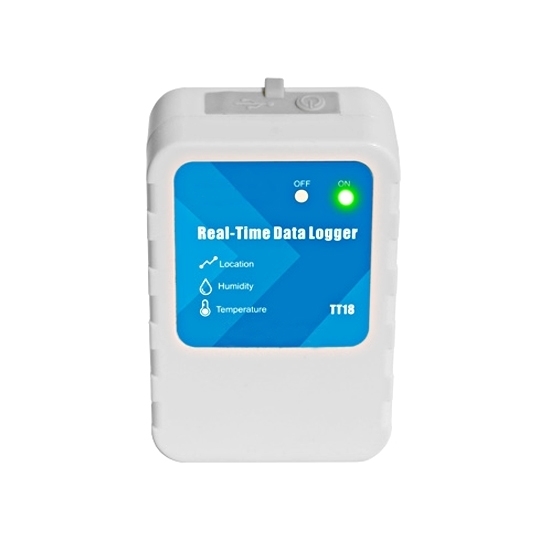

    Real-Time Temperature and Humidity Data Logger, GSM/ 4G

    $87.39
    Real time temperature and humidity data logger features innovative sensor, communication technology and real-time alarm. GSM temperature and humidity data logger is combined with the convenient cloud platform, helping you to check, manage and analyze real time data online.
    *
    SKU: ATO-TDL-TT18
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    Temperature and humidity data logger combined with a cloud platform, global connectivity via GSM network provides permanent monitoring of the entire supply chain. Real time wireless temp and humidity data recorders have a variety of unique capabilities that provide continuous information about the current state of a cargo or equipment.

    Feature

    ATO-TDL-TT18 Real-Time Temp & RH Data Logger

    • Single-use, battery backup about 60days.
    • Remote real-time monitoring over GSM.
    • Free SIM card and Free platform to access the data.
    • Temperature and humidity monitoring and location tracking.
    • Ideal for cold chain logistics of fresh, medical fields etc.

    ATO-TDL-TT184G Real-Time Temp & RH Data Logger

    • Multiple-use and rechargeable.
    • Remote real-time monitoring over 4G(CAT-M1/NB-IOT) /GSM.
    • Data accessible to your server and platform.
    • Temperature and humidity monitoring and location tracking.
    • Ideal for outdoor or mobile IoT applications.

    Specification

    Model SISCO-TDL-BT05B
    Dimension 66mm*48mm*10mm
    Net Weight 25g
    Signal Transmission Frequency 2.400 - 2.4835GHz
    Protocol Standard Bluetooth 4.1
    Modulation Mode GFSK
    Send Interval 2s (default)
    Built-in Battery Panasonic CR2450, 620mAh/ 3V
    Output Power -4dBm, Adjustable
    Communication Rate 1Mbps
    Transmission Distance 55 meters, Adjustable
    Storage Capacity Can save 12000 Temperature Data
    Battery Life 1.5 Years (Depends on the mode of operation)
    Operating Temperature Range -25℃~+60℃
    Detecting Temperature Range -40℃~+80℃ (Just for the temperature sensor)
    Temperature Detection Accuracy ±0.5℃ (-20℃~+40℃), ±1℃ (Others)


    Dimension

    Real time temperature and humidity data-logger dimension



    How to Use

    How to use temperature and humidity data logger

    1. Press the button to start
      Press the button for 3s and you will see that the "ON" LED light blinks in Green. It means that the temperature and humidity data recorder is started successfully.
    2. Put data logger along with your products
      Place the temperature and humidity data logger along with your products which you want to monitor temperature, humidity and location during the shipment.
    3. Access cloud platform to check data
      The Cloud platform helps you for further analysis and reporting, containing detailed information such as data curve, every single measurement as a table and statistical information.

    Application

    Real time temperature and humidity data logger application

    • Fresh food safety
      Food, fruits and dairy products must be stored and transported in each phase at specific temperatures. sisco real-time temperature and humidity data logger is easy to use and provide global visibility.
    • Pharmacies safety
      In order to ensure the efficacy of pharmaceutical products, the handling of the products from production to delivery must be tracked, especially with regards to temperature. sisco real-time data logger helps you to keep an eye on your pharmacies easily.
    • Chemical and biomedical management
      In research and development facilities and in their laboratories the documentation of environmental conditions is important. Only reliable values can provide repeatable and traceable results in the development of chemical and biomedical substances.

    Tips for using temperature and humidity data logger

    The temperature and humidity data logger is mainly composed of a host and a temperature and humidity sensor. It is widely used in medical and pharmaceutical, food processing, agricultural research, biochemical laboratories, meteorological detection, electronic manufacturing, HVAC, file management, archaeological research, cold chain transportation, etc. field. Provide users with complete solutions for real-time environmental monitoring, wireless transmission, alarm and data recording. So how to use the temperature and humidity data logger?

    1. Correctly place the temperature and humidity data logger.
    2. Connect the sensor to the recorder correctly.
    3. The temperature and humidity recorder is powered by a built-in power supply. After connecting, it will self-check.
    4. Set the temperature and humidity sensor type on the recorder according to the specification and type of the temperature and humidity sensor.
    5. Set the relevant parameters, and then the recording will automatically measure the temperature and humidity.
