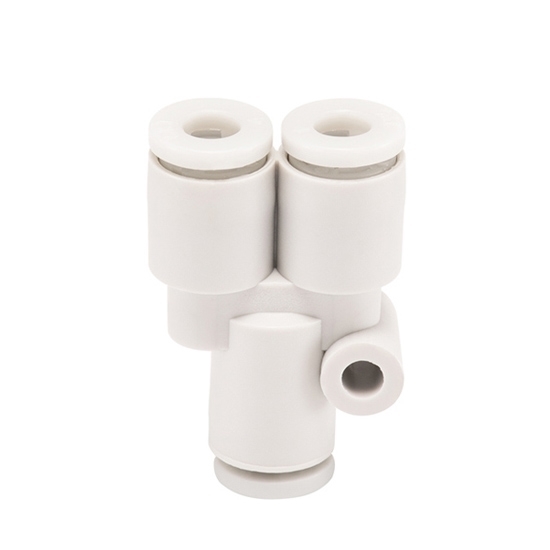

Quick Connector for Water/Air, Intubation Type

5 out of 5 based on 2 reviews | Write a review

$3.55

High-quality quick connector is a water/air hose quick connect. It is intubation type and has 03/04/06 mm input cannula diameters. Faster connectors can connect and disconnect in seconds without leakage. Quick connect is perfect for garden hoses, watering equipment for pressure washers, RVs, campers, faucets, lawn sprinklers, spigots, taps and other garden accessories.

Input Cannula Diameter *
Output Cannula/Thread Diameter (03) *
Output Cannula/Thread Diameter (04) *
Output Cannula/Thread Diameter (06) *

SKU: ATO-QC-I04

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

Low-cost quick connector is a water/air hose quick connector that has 03/04/06 mm input cannula diameters. Hose connects is an intubation type, used for RVs, campers, faucets, lawn sprinklers, spigots, and faucets. Strong plastic shell makes quick connect fitting more smooth and wear-resistant.

Specifications

Model	ATO-KJU
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)		Model	Weight (g)
①	②	Model	Weight (g)
Ø3		ATO-KJU03-00	2.6
Ø3.2		ATO-KJU23-00	2.8
Ø4		ATO-KJU04-00	3
Ø6		ATO-KJU06-00	4.7
Ø3	Ø4	ATO-KJU03-04	2.7
Ø3.2	Ø4	ATO-KJU23-04	2.9
Ø4	Ø6	ATO-KJU04-06	3.7

Tips: The use environment of quick connectors

Quick connectors need to consider the humidity and dust condition of the use environment, as well as the easy corrosion and other use environments to select the type of quick connectors, tube material, and sealing material. Shape and size of the installation Please determine the type and material of the quick coupling and specify the shape and size of the assembly corresponding to the characteristics of the piping. Please note that the dimensions are related to the fluid flow rate.

Quick Connector Dimensions

Existing reviews of Quick Connector for Water/Air, Intubation Type

Great buy

I wanted to try to see if connecting the quick connectors to the pressure washer end and the hose end would work. The fact that it worked fine with no leaks. I will buy more if needed.

From: Raden | Date: 30/05/2022

Was this review helpful? Yes No (0/0)

Suitable for RV

Arrive on time. I use it for my RV, so it is much easier to connect it in the RV parking lot, especially when using the extension hose because it now takes a few seconds to connect the hose without tightening the hose to prevent leakage.

From: Seon | Date: 29/05/2022

Was this review helpful? Yes No (0/0)
