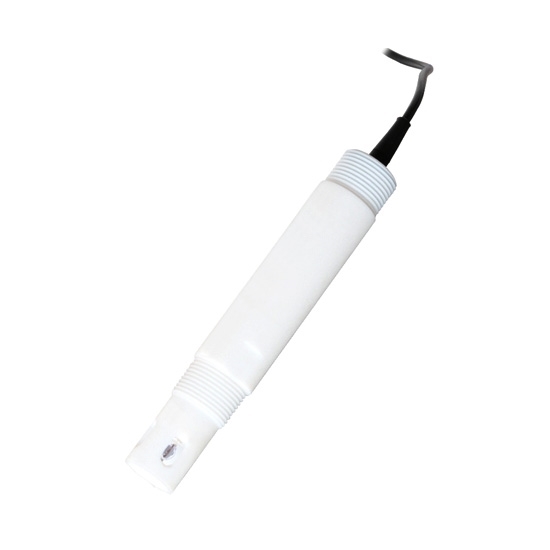

PTFE pH Electrode for Strong Acid and Alkali

4.8 out of 5 based on 7 reviews | Write a review

$179.92

PTFE pH electrode for strong acid and alkali, PTFE shell, good corrosion resistance, 0-60℃ (32-140℉) temperature range, direct lead, 6 months service life.

Temperature compensation *
Cable Length *

SKU: ATO-PHELE-5013A

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents

PTFE pH electrode can be used in harsh environment, such as strong acid and strong alkali.

Function:

Special for strong acid and alkali, good corrosion resistance.
Low impedance glass sensitive film.
More accurate and stable measurement data.
High-quality low-noise cable, can achieve 60m long distance signal transmission.

Specification:

Model	ATO-PHETE-PH5013A
Weight	1kg
Dimension	Length: 158mm, diameter: 25.4mm
Measuring range	0-14pH
Accuracy	0.02pH
Temperature range	0-60℃ (32-140℉)
Temperature compensation *	Internal temperature sensor (NTC 10K)
Zero position	7±0.3pH
Compressive strength	0.6MPa
Response time	15s
Installation size	3/4NPT in both ends
Shell material	PTFE
Connection	Direct lead
Cable length *	5m/10m/15m, or other length less than 50m (need customization)
Service life	6 months

The pH electrod installation methods:

1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation

Tips: PTFE electrode dosing system

The electrode should be installed in the bypass beside the main pipe, and a valve should be installed at its front end to control the flow velocity. The flow shall be as small as possible, generally, as long as the outlet has a stable aqueous solution drops. Electrodes should be installed vertically and go deep into active water, and the water outlet should be higher than the water inlet to ensure that the electrode is completely immersed in the solution.
The electrode should be calibrated before installation.
As the measurement signal is a weak electrical signal, its acquisition cable should be independent and avoided to be connected in a same cable connector or terminal with the power line and control line, so as to avoid interference or breakdown of measuring units.
When measuring cables need to be lengthened, please choose to customize the length or contact customer service (more than 15m).
