Proximity Sensor, Capacitive, M18, NPN

Proximity Sensor, Capacitive, M18, NPN

5 out of 5 based on 2 reviews | Write a review
$39.29

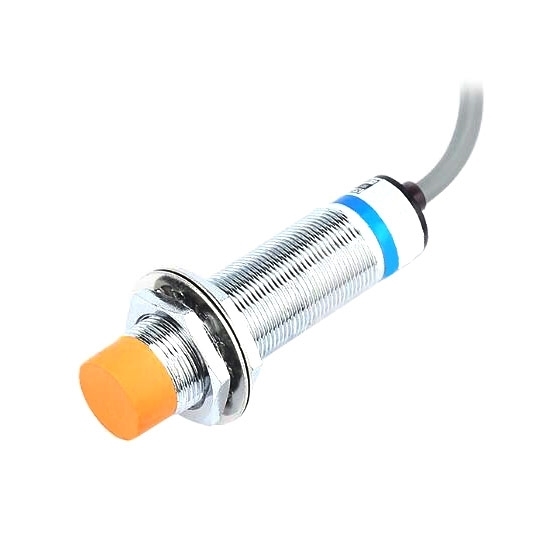

M18 proximity sensor can detect nonmetal (or metal), plastic, water, liquid level and powder height, with small size, long life, cheap price, unshielded type installation, anti-interference ability, 10mm detection distance, manufacturer direct sale.
*
SKU: ATO-PROS-C18
30-day Returns
Free Shipping
Delivery date: 6-12 days

Capacitive proximity sensor with M18*1 thread, NPN type output, manufacturer direct sale.

Functions:

  • Red LED checks the state of proximity sensor

  • High repeated positioning accuracy

  • High switching frequency

  • Wide voltage range

  • Antivibration, dust, water and oil prevention

  • Reverse power protection, short circuit protection, directly connecting with PLC

Specification:

Model ATO-PSC-18ABZ
Installation type Unshielded Shielded
All the output methods DC type NPN NO NO
NC NC
PNP NO NO
NC NC
AC type 2 wire NO NO
NC NC
Detection range 10mm±10% 5mm±10%
Setting distance 0-8mm 0-4mm
Delay distance ≤10% detection range
Detection object Any dielectric substance
Standard detection object SPCC iron 50*50*1mm
Response frequency DC: 0.5kHz, AC: 25Hz
Supply voltage DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage AC1000V 50/60Hz 1min between charging part and housing
Voltage influence Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance ≥50MΩ (DC500 megameter) between charging part and housing
Material Housing: Nickel plated brass, Detection surface: ABS
Protection class IP67
Cable length 1.2m

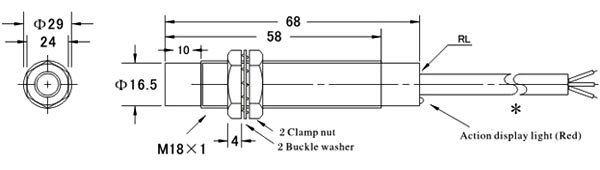

Dimensional drawing (unit: mm):
Proximity sensor capacitive M18 dimensional drawing
Wiring diagram:
Proximity sensor NPN wiring

Tips: Types of proximity sensor

  1. According to the working principle, proximity sensors can be divided into:
    Inductive type: Used to detect a variety of metals
    Capacitance type: Used to detect a variety of conductive or non-conductive liquid or solid
    Photoelectric type: Used to detect all lightproof materials
    Ultrasonic type: Used to detect the material that ultrasonic wave cannot pass through
    Electro-magnetic induction type: Used detect magnetic or non-magnetic metal
  2. According to design and shape, they can be divided into cylindrical type, square type, and ditch type, perforating type and separated type.
    Cylindrical type is more convenient in the installation than square one with same detection features. The testing part of ditch-type is inside the groove for detecting objects that pass through the groove. Perforating type is used for small parts of small screws or balls, and assembles with buoys into a water level detection device.
  3. According to power supply method, they can be divided into DC type and AC type.
  4. According to the output form, they can be divided into DC two-wire type, DC three-wire type, DC four-wire type, AC two-wire type and AC three-wire type.
