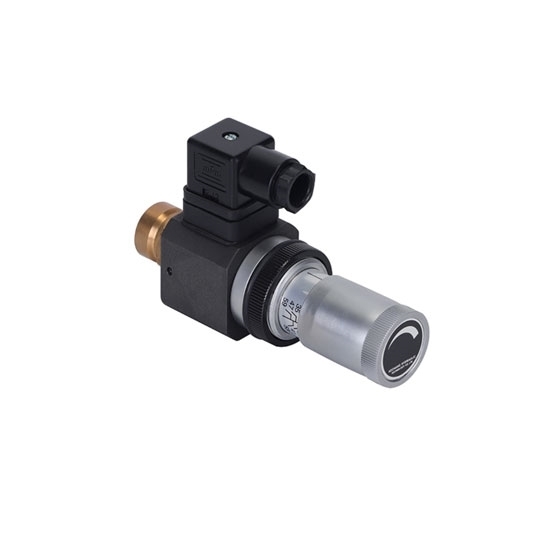

Hydraulic oil pressure switch can adjust the pressure range from 400 to 3000 psi, highly accurate repetitive positioning, high temperature resistance up to 110°C.
Features
- Applicable medium: hydraulic oil or similar liquid, non-corrosive and free of solid particles and fibers, with a viscosity of 5-1500cst oily liquid.
- High-strength aluminum alloy shell, chrome-plated joints, high strength, strong oxidation resistance, and not easy to be corroded.
- The pressure switch has high sensitivity and long service life.
- The oil high-pressure switch material uses special processing technology to reduce the film, special heat treatment process contact, no jam, no fluctuation, low noise, high repeat positioning accuracy, and stable product performance.
- Cast iron shell or copper joints can be customized according to customers.
Specification
Model |
ATO-OPS-JCS02N |
Max Voltage |
220V |
Max Current |
5A |
Pressure |
30-200 Bar |
Max Pressure |
200 Bar |
Shell Material |
Aluminum Alloy |
Use Environment Temperature |
-40℃ - 110℃ |
Weight |
1kg |
Details
400 to 3000 Psi Hydraulic Pressure Switch Installation
30 to 200 Bar Oil Pressure Switch Dimension (Unit=mm)
Tips: Pressure switch application
The oil pressure switch adopts the tube-type installation method, which can be applied to various hydraulic systems and circuits, in the hydraulic fluid fields of light industry machinery, textile machinery, food machinery, electronic equipment, automobile machinery, chemical machinery, transportation machinery, mining, smelting equipment, etc.
