Portable pH/Ion Meter

$1,865.79

ATO best price portable pH/ion meter for sale. This handheld ion meter is a compact device designed for on-the-go measurement of pH levels and ion concentrations in liquids. It employs electrochemical principles to measure the hydrogen ion concentration, providing accurate and reliable readings for applications such as water quality testing, agriculture, and laboratory analyses.

SKU: ATO-PHM-I510T

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Portable pH/ion meter features user-friendly interfaces, calibration options, and may support multiple ion-selective electrodes (ISEs) for diverse ion measurements. The portability of these devices makes them ideal for fieldwork, allowing users to quickly assess the acidity, alkalinity, or ion content of various liquids in different environments.

Specification

Model		ATO-PHION-I510T
Parameters		pH/ISE/Temp.(mV/ORP/pX)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
	Calibration Points	Up to 8
	Standard Customization	Yes
	Calibration Reminder	Yes
	Standard Recognition	USA, NIST, MERK, JIS, GB and DIN Buffers
	Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	±0.1 mV or ±0.03% of Reading Whichever is Greater
	EH ORP Mode	Yes
	ORP Calibration Points	1 Custom Point (Relative mV)
pX	Range	-2.000 to 20.000 pX
	Resolution	0.1, 0.01, 0.001 pX
	Accuracy	±0.002 pX
	Calibration Points	Up to 6
ISE	Range	1E-9 to 9.999E9
	Units	mol/L, mmol/L, g/L, mg/L, μg/L
	Resolution	Up to 4 Significant Digits
	Accuracy	±0.3%
	Calibration Points	Up to 8
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Relative Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data Management	Data Storage	1000 Groups
Data Management	GLP Features	Yes
Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	4-pin Aviation Connector
Outputs	USB	USB 2.0 Flash Memory Device, PC, Scanner
Outputs	Bluetooth	Printer
Display Options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600 sec., Off
	IP Rating	IP65
	Date and Time	Yes
General	Power	Rechargeable Lithium Battery, AC Adapter, 100-240V AC Input, DC5V Output
	Dimension	410340170mm
	Weight	6kg
Standard Accessories		Suitcase Electrode holder Stylus, Wristband

Feature

The portable pH/ion meter comes with 4.3 inches color high contrast LCD touchscreen.
Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, log management and etc.
This handheld pH/ion meter has multi-reading function that allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold function senses and locks the measurement endpoint.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis function helps users review, compare and recalculate results.
This ion tester supports USB communication.
Auto-power off function effectively extends the battery service life.
Reset function automatically resumes all settings back to factory default options.
The portable meter with IP65 waterproof grade is suitable for field measurements and outdoor measurements.

1-8 points calibration with Standard Recognition.
Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS.
User-defined pH buffer or buffer group is supported.
Automatic electrode diagnosis with pH slope and offset display.

Ion

1-6 points calibration.
Selectable measurement units, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.
Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.
Over 10 methods are built-in, including F^-, Cl^-, Br^-, I^-, NO₃^-, BF₄^-, NH₄⁺, K⁺, Na⁺, Ca²⁺, Cu²⁺, Pb²⁺, Ag⁺ and etc., user-defined method is supported.

Details

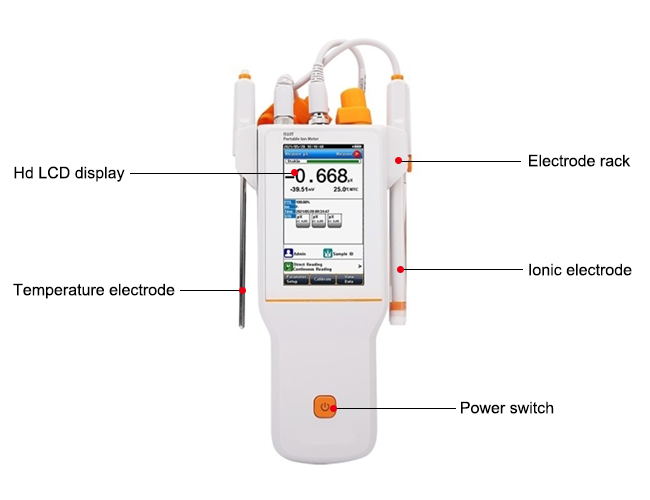

Portable pH/Ion Meter Details

Application

portable pH/ion meter application

Tips: What is a portable pH/ion meter?

A portable pH/ion meter is a compact and handheld device used to measure the acidity (pH) or concentration of specific ions in a solution. It is employed in various industries such as water quality testing, agriculture, and laboratory research. The device typically consists of a probe equipped with a glass electrode for pH measurement or specific ion-selective electrodes for ion concentration determination. Portable meters are designed for on-the-go applications, enabling users to assess the pH level or ion concentration of liquids in diverse environments. They often feature digital displays, user-friendly interfaces, and calibration options, making them suitable for fieldwork and rapid analysis. These devices are crucial for ensuring the optimal conditions in processes ranging from scientific experiments to industrial and environmental monitoring.
