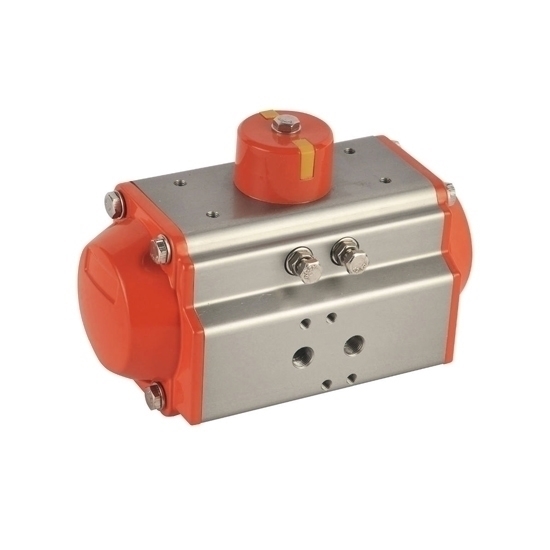

Double Acting Pneumatic Valve Actuator, 125mm Bore Size

Write a review

$293.99

Double acting pneumatic valve actuator for butterfly or ball valve, powered by compressed air, air supply port 1/4 inch, bore size 125mm, air pressure 2.5bar ~ 8bar. Small size, light weight, quick opening and closing, easy to install & operate.

Operating Temperature *

SKU: ATO-AT-125D

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Output Torque Table

Pneumatic valve actuator is an executive device that uses air pressure to drive ball valve, butterfly or regulating valve. The pneumatic actuator is easy to repair and maintain, and has good adaptability to the environment.

Specifiation

Model: ATO-AT125D
Bore Size: 125mm (4.92 inch)
Air Supply Port: 1/4 inch
Power Source: Compressed Air
Actuator Type: Double Acting
Air Pressure: 2.5bar ~ 8bar
Max Working Pressure: 10bar
Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
Rotation Angle: 90°±5%
Body Material: Aluminum Alloy
Life Time: One Million Time

Dimensions

Pneumatic actuator dimension

ATO-AT125D

Q	A	B	C	D	E	F	G	H	I
Φ70/Φ102mm	349mm	147mm	67mm	80mm	189mm	159mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	56.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Pneumatic valve actuator details

PN	Number	Name	Standard Material
1	4	Position Indicator	Polypropylene+GF
2	1	Position Indicator Seat	Polypropylene+GF
3	1	Snap Ring	Stainless Steel
4	1	Bearing	Stainless Steel
5	1	Bearing	Polyphthalamide
6	1	Bore Body	Extruded Aluminum alloy
7	2	Bearing	Polyphthalamide
8	2	Piston	Die Cast Aluminum
9	2	O-Ring	Nitrile(NBR70)
10	2	Bearing	Polyphthalamide
11	8	End Cover bolt gasket	Stainless Steel
12	2	End Cover bolt	Stainless Steel
13	2	Left and Right end Cover	Die Cast Aluminum
14	2	O-Ring	Nitrile(NBR70)
15	2	Guide Sleeve	Polypropylene+GF
16	1	O-Ring	Nitrile(NBR70)
17	1	Bearing	Nylon46
18	1	Bearing	Polyphthalamide
19	1	Cam Switch	Stainless Steel
20	1	Actuating Shaft	Steel alloy
21	1	Bearing	Nylon46
22	1	O-Ring	Nitrile(NBR70)
23	1	O-Ring	Nitrile(NBR70)
24	2	Spacer for Limit Bolt	Stainless Steel
25	2	Limit Nut	Stainless Steel
26	2	Limit Bolt	Stainless Steel
27	min.5/max.12	Spring	High alloy Spring Steel
28	1	Spring Seat	Polypropylene+GF

Tips: Basic composition of pneumatic valve actuators

The type and structure of the adjustment mechanism of the pneumatic valve actuator are roughly the same, but the main difference is the actuator. Therefore, the pneumatic actuator is divided into two parts: the actuator and the regulating valve. Pneumatic actuator consists of two parts: actuator and regulating valve (regulating mechanism). According to the size of the control signal, the corresponding thrust is generated to push the regulating valve to act. The regulating valve is the regulating part of the pneumatic actuator. Under the action of the thrust of the actuator, the regulating valve produces a certain displacement or rotation angle to directly regulate the flow of the fluid.

Double Acting Pneumatic Valve Actuator Output Torque Table

Unit: Nm

Model	Standard	3bar	3.5bar	4bar	4.5bar	5bar	5.5bar	6bar	7bar	8bar
ATO-AT032D	3.6	4.3	5	5.7	6.4	7.3	8	8.7	10	11.6
ATO-AT050D	8.4	10.1	11.7	13.5	15.1	16.7	18.4	20	23.4	26.7
ATO-AT063D	14.8	17.7	20.6	23.6	26.5	29.4	32.3	35.3	4101	47
ATO-AT075D	29.2	35	40.8	46.6	52.5	58.3	64.1	69.9	81.5	93.2
ATO-AT088D	45.9	55	64.2	73.3	82.5	91.6	101.1	110.1	128.1	146.1
ATO-AT100D	66.8	80.1	93.4	106.3	120.3	133.3	146.3	160.3	183.3	213.3
ATO-AT125D	139	167	195	223	250	278	303	333	389	444
ATO-AT145D	217	261	304	348	391	434	478	521	608	695
ATO-AT160D	285	341	398	455	512	577	625	682	795	909
ATO-AT190D	533	639	746	852	976	1065	1171	1277	1490	1703
ATO-AT240D	893	1072	1250	1430	1608	1787	1965	2144	2502	2859
ATO-AT270D	1306	1565	1824	2084	2343	2603	2862	3121	3640	4159
