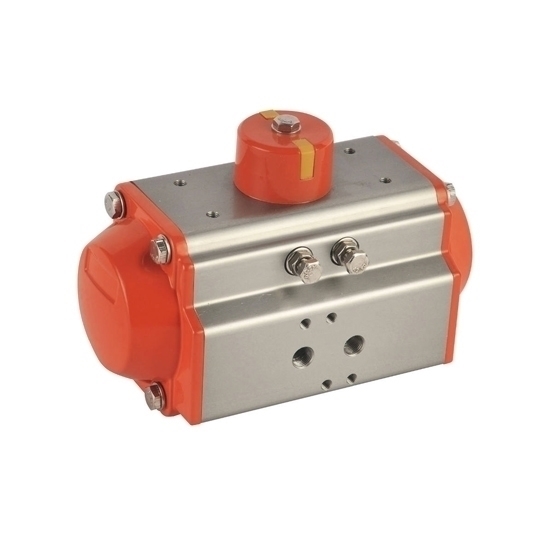

Pneumatic valve actuator is an executive device that uses air pressure to drive ball valve, butterfly or regulating valve. The pneumatic actuator is easy to repair and maintain, and has good adaptability to the environment.
Specifiation
- Model: ATO-AT115D
- Bore Size: 115mm (4.53 inch)
- Air Supply Port: 1/4 inch
- Power Source: Compressed Air
- Actuator Type: Double Acting
- Air Pressure: 2.5bar ~ 8bar
- Max Working Pressure: 10bar
- Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
- Rotation Angle: 90°±5%
- Body Material: Aluminum Alloy
- Life Time: One Million Time
Dimensions
ATO-AT115D
Q |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Φ70/Φ102 |
316mm |
139mm |
64.5mm |
74.5mm |
185mm |
145mm |
30mm |
80mm |
PF |
J |
K |
O |
P |
S |
T |
U |
V |
W |
X |
M6 |
1/4" |
30mm |
62mm |
4mm |
4mm |
12mm |
24mm |
16mm |
32mm |
Details
PN |
Number |
Name |
Standard Material |
1 |
4 |
Position Indicator |
Polypropylene+GF |
2 |
1 |
Position Indicator Seat |
Polypropylene+GF |
3 |
1 |
Snap Ring |
Stainless Steel |
4 |
1 |
Bearing |
Stainless Steel |
5 |
1 |
Bearing |
Polyphthalamide |
6 |
1 |
Bore Body |
Extruded Aluminum alloy |
7 |
2 |
Bearing |
Polyphthalamide |
8 |
2 |
Piston |
Die Cast Aluminum |
9 |
2 |
O-Ring |
Nitrile(NBR70) |
10 |
2 |
Bearing |
Polyphthalamide |
11 |
8 |
End Cover bolt gasket |
Stainless Steel |
12 |
2 |
End Cover bolt |
Stainless Steel |
13 |
2 |
Left and Right end Cover |
Die Cast Aluminum |
14 |
2 |
O-Ring |
Nitrile(NBR70) |
15 |
2 |
Guide Sleeve |
Polypropylene+GF |
16 |
1 |
O-Ring |
Nitrile(NBR70) |
17 |
1 |
Bearing |
Nylon46 |
18 |
1 |
Bearing |
Polyphthalamide |
19 |
1 |
Cam Switch |
Stainless Steel |
20 |
1 |
Actuating Shaft |
Steel alloy |
21 |
1 |
Bearing |
Nylon46 |
22 |
1 |
O-Ring |
Nitrile(NBR70) |
23 |
1 |
O-Ring |
Nitrile(NBR70) |
24 |
2 |
Spacer for Limit Bolt |
Stainless Steel |
25 |
2 |
Limit Nut |
Stainless Steel |
26 |
2 |
Limit Bolt |
Stainless Steel |
27 |
min.5/max.12 |
Spring |
High alloy Spring Steel |
28 |
1 |
Spring Seat |
Polypropylene+GF |
Tips: Pneumatic valve actuator working principle
When the compressed air enters the pneumatic actuator from the A nozzle, the gas pushes the double piston to move linearly to both ends (cylinder head end), the rack on the piston drives the gear on the rotating shaft to rotate 90 degrees counterclockwise, and the valve is opened. . At this time, the gas at both ends of the pneumatic actuator valve is discharged with the B nozzle. On the contrary, when the compressed air enters the two ends of the pneumatic actuator from the nozzle B, the gas pushes the double plug to move linearly to the middle, the rack on the piston drives the gear on the rotating shaft to rotate 90 degrees clockwise, and the valve is closed. At this time, the gas in the middle of the pneumatic actuator is discharged with the A nozzle. The above is the standard transmission principle. According to the user's needs, the pneumatic actuator can be installed in the opposite transmission principle to the standard type, that is, the clockwise rotation of the selected shaft is to open the valve, and the counterclockwise rotation is to close the valve. The single-acting (spring return type) pneumatic actuator A nozzle is the air inlet, and the B nozzle is the exhaust hole (the B nozzle should be equipped with a muffler). The inlet of the nozzle A is to open the valve, and the valve is closed by the spring force when the gas is cut off.
