Pneumatic solenoid valve, 3 way 2 position, normally open, is designed for air control with power supplied by 12V DC, 24V DC, 110V AC, or 220V AC. With high reliability and durability, it is widely used in the industrial fields like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles etc.
Specification
Model |
ATO-3V110-M5-NO |
ATO-3V110-06-NO |
ATO-3V210-06-NO |
ATO-3V210-08-NO |
ATO-3V310-08-NO |
ATO-3V310-10-NO |
ATO-3V410-15-NO |
Number of Ports |
3-way |
Number of Positions |
2-position |
Valve Type |
Normally Open |
Operation Mode |
Internally Pilot Operated |
Number of Solenoid |
Single |
Port Size |
M5×0.8 |
Rc 1/8" |
Rc 1/8" |
Rc 1/4" |
Rc 1/4" |
Rc 3/8" |
Rc 1/2" |
Media |
Air |
Operating Pressure Range |
0.15~0.8MPa (22~116PSI) |
Max. Pressure Resistance |
1.2MPa |
Voltage (Optional) |
12V DC, 24V DC, 110V AC, 220V AC |
Dimension |
See below table |
Voltage Tolerance |
-10%~+10% |
Operating Temperature |
5~60℃ (41~140℉) |
Insulation Grade |
Class B |
Protection Grade |
IP65 |
Body Material |
Aluminum Alloy |
Seal Material |
NBR |
Wiring Method |
Terminal type |
Max. Action Frequency |
5Hz (5 cycles/second) |
Lubrication |
No |

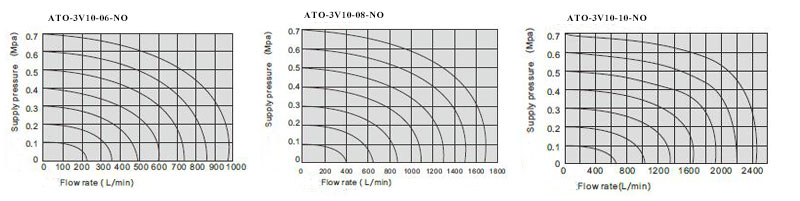

Flow Characteristics

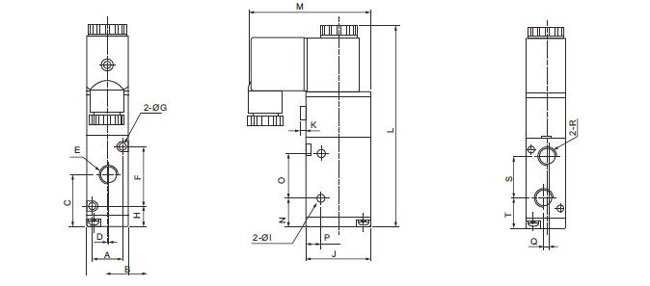

Dimensions
(body length unit = mm, port size unit = inch)
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
3V110-M5-NO |
13 |
18 |
22.7 |
0 |
M5×0.8 |
19 |
Φ3.3 |
13.2 |
Φ3.1 |
27 |
2.5 |
88.4 |
55 |
12.2 |
21 |
7.7 |
0 |
M5×0.8 |
14.2 |
14.7 |
3V110-06-NO |
13 |
18 |
23.7 |
1 |
PT1/8 |
19 |
Φ3.3 |
13.2 |
Φ3.1 |
27 |
2.5 |
88.4 |
55 |
12.2 |
21 |
7.7 |
2 |
PT1/8 |
16 |
14.7 |
3V210-06-NO |
17 |
22 |
27.7 |
0 |
PT1/8 |
30 |
Φ3.2 |
12.7 |
Φ4.2 |
35 |
3 |
109 |
66.7 |
15.2 |
25 |
8.2 |
0 |
PT1/8 |
22 |
16.7 |
3V210-08-NO |
17 |
22 |
28.7 |
1.5 |
PT1/4 |
30 |
Φ3.2 |
12.7 |
Φ4.2 |
35 |
3 |
109 |
66.7 |
15.2 |
25 |
8.2 |
0 |
PT1/4 |
22.5 |
16.7 |
3V310-08-NO |
20 |
27 |
32.5 |
0 |
PT1/4 |
35 |
Φ4.3 |
15 |
Φ4.3 |
40 |
2.4 |
120 |
69.2 |
17.5 |
30 |
10.5 |
0 |
PT1/4 |
24 |
20.5 |
3V310-10-NO |
20 |
27 |
32.5 |
2 |
PT3/8 |
35 |
Φ4.3 |
15 |
Φ4.3 |
40 |
2.4 |
120 |
69.2 |
17.5 |
30 |
10.5 |
0 |
PT3/8 |
24 |
20.5 |
3V410-15-NO |
27 |
34 |
42 |
3 |
PT1/2 |
48 |
Φ4.5 |
17.5 |
Φ4.5 |
50 |
2.8 |
138 |
74 |
17.5 |
48 |
13 |
0 |
PT1/2 |
35 |
25 |
Solenoid Valve Symbol (Flow Diagram)
Tips: What is a pilot-operated solenoid valve?
The pilot-operated solenoid valve is usually used in big diameter and high pressure occasions. As the valve is open, the minimum pressure of the solenoid valve is not allowed to be lower than 0.05MPa. So, the pilot pressure is required, otherwise it cannot be opened. In addition, the flow capability of the pilot-operated solenoid valve is bigger than that of the direct acting solenoid valve. It has a relatively higher requirement to the purity of the compressed air. Instead, the directly operated solenoid valve has no such high requirement.
For the pilot operated solenoid valve, the electromagnetic head is small and the power consumption is low, usually 0.1-0.2W. It can be energized frequently or for a long time, without getting burnt. It is also energy saving. As for the fluid pressure scope, it has a high upper bound. It can be installed randomly (need to be customized), but the requirement for differential pressure condition of the fluid should be satisfied. For the impurities in the liquid is easy to block the pilot valve holes. Therefore, it is unsuitable for the liquid.
