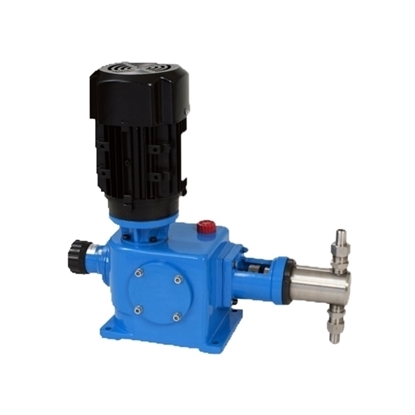

    Plunger Dosing Pump, 5 L/h Flow

    $1,602.39
    Factory price plunger dosing pump for sale, with 5 L/h flow rate, available in motor voltage 380V/220V/110V/420V, motor power 370W/550W. ATO metering pump can accurately dose or meter chemicals or liquids, which is used for chemical manufacturing, water treatment, pharmaceuticals, and oil and gas.
    *
    *
    *
    SKU: ATO-PDP-5F
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Plunger dosing metering pump is a device used to accurately measure and deliver liquids. It is commonly used in industrial fields, especially fluid transfer applications that require high precision and controllability, such as chemical processing, water treatment, food processing, and pharmaceuticals.

    Specification

    Model ATO-DZ-X5/20(13)
    Flow 5L/h
    Motor Voltage (Optional) 380V 50Hz (Default), 220V, 110V, 420V
    Motor Power (Optional) 370W 550W
    Pressure 13Mpa 20Mpa
    Plunger Diameter 10mm
    Stroke 20mm
    Pump Speed 96rpm 144rpm
    Pump Head Material (Optional) PVC (Default), 316 Stainless Steel
    Metering Precision ±1%
    Medium Viscosity 0~800mm2/s
    Transport Medium Temperature Below 450℃
    Inlet & Outlet Diameter 6mm (with tube)
    Weight 40kg


    Dimension (Unit: mm)

    Plunger dosing pump dimension

    Plunger Dosing Pump Working Principle

    Through the reciprocating motion of the plunger, the working medium is directly sucked in or discharged. Since both the plunger and seal are in direct contact with the medium, choosing a jointly made plunger material and seal form can ensure that the pump has more ideal performance during operation.

    Plunger dosing pump working principle

    Tips: Is a metering pump a centrifugal pump?

    No, a metering pump is not a centrifugal pump. These two types of pumps serve different purposes and operate on distinct principles.

    A dosing pump is a type of positive displacement pump designed for precise and controlled fluid dosing. It delivers a highly accurate and consistent flow of liquid by displacing a fixed amount of fluid with each stroke or rotation, making it suitable for applications where precise dosing is critical, such as in chemical processing and water treatment.

    On the other hand, a centrifugal pump is a dynamic pump that uses a rotating impeller to create a flow of fluid by imparting kinetic energy to the liquid. It is commonly used for applications where a high flow rate is required, like moving large volumes of water in irrigation, HVAC systems, or industrial processes.
