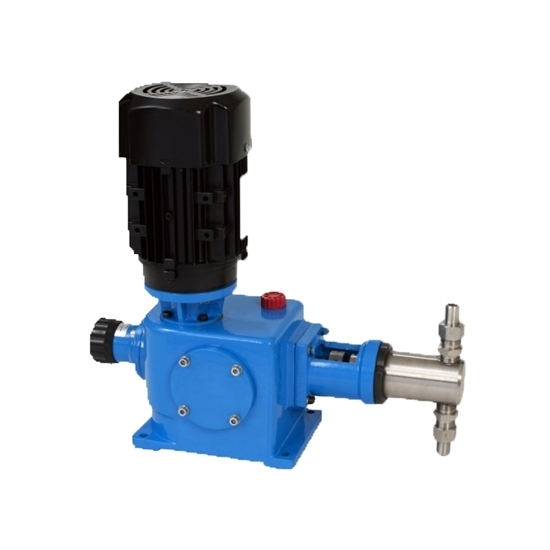

    Plunger Dosing Pump, 2 L/h Flow

    $1,602.39
    Factory price plunger dosing pump for sale, with 2L/h flow, motor power 370W/550W, available in 380V, 220V, 110V, 420V voltage, PVC or stainless steel pump head. This metering pump is a type of positive displacement pump used to precisely inject or meter small volumes of liquids into various industrial processes, such as water treatment, chemical processing, pharmaceuticals, and agriculture.
    *
    *
    *
    SKU: ATO-PDP-2F
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Plunger dosing metering pump is a device used to accurately measure and deliver liquids. It is commonly used in industrial fields, especially fluid transfer applications that require high precision and controllability, such as chemical processing, water treatment, food processing, and pharmaceuticals.

    Specification

    Model ATO-DZ-X2/50(38)
    Flow 2L/h
    Motor Voltage (Optional) 380V 50Hz (Default), 220V, 110V, 420V
    Motor Power (Optional) 370W 550W
    Pressure 38Mpa 50Mpa
    Plunger Diameter 6mm
    Stroke 20mm
    Pump Speed 96rpm 144rpm
    Pump Head Material (Optional) PVC (Default), 316 Stainless Steel
    Metering Precision ±1%
    Medium Viscosity 0~800mm2/s
    Transport Medium Temperature Below 450℃
    Inlet & Outlet Diameter 6mm (with tube)
    Weight 40kg


    Dimension (Unit: mm)

    Plunger dosing pump dimension

    Plunger Dosing Pump Working Principle

    Through the reciprocating motion of the plunger, the working medium is directly sucked in or discharged. Since both the plunger and seal are in direct contact with the medium, choosing a jointly made plunger material and seal form can ensure that the pump has more ideal performance during operation.

    Plunger dosing pump working principle

    Tips: How do I choose a metering pump?

    Choosing a metering pump involves several critical considerations. Firstly, identify the required flow rate and pressure for your specific application. This will determine the pump's capacity. Next, select a pump type, such as diaphragm, piston, or peristaltic, based on the fluid's compatibility and the accuracy needed.

    Consider the chemical compatibility of pump materials with the fluid being pumped to ensure long-term reliability. Evaluate the working environment, as factors like temperature, pressure, and potential corrosive atmospheres can affect pump selection. Additionally, think about the required control and automation features for precise dosing.

    Factor in maintenance requirements, as some dosing pumps may need more frequent attention than others. Lastly, consider the cost of the pump, both upfront and long-term operational expenses. Weigh these factors to find a metering pump that meets your specific needs and budget. Consulting with a pump specialist may also be beneficial in making an informed decision.
