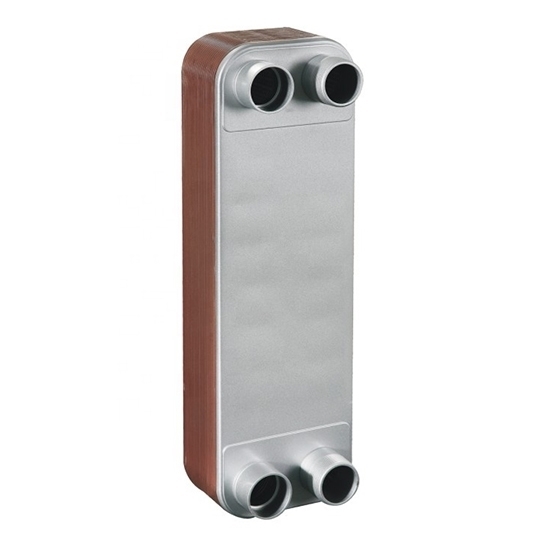

    Counter Flow Brazed Plate Heat Exchanger, 250/300 Plate

    5 out of 5 based on 6 reviews | Write a review
    $2,589.46
    Counter flow brazed plate heat exchangers for sale. Maximum quantity of plates is 250 or 300. Heat exchange capacity is 96k~610kBTU/102k~680kBTU/205k~680kBTU/510k~1500kBTU/510k~1900kBTU for specific models. Brazed plate heat exchanger is non-standard product, specific plate quantity and heat exchange capacity are customizable.
    *
    *
    *
    *
    *
    *
    *
    *
    *
    SKU: ATO-PHE-250
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Medium flow direction is counter flow (the primary and secondary flow direction is parallel and opposite).

    Note: Non-standard customized products, for different plate quantities, price is different, the page price is for reference only. Please contact us for specific price.

    Specification

    Model ATO-PHE-090 ATO-PHE-095 ATO-PHE-136 ATO-PHE-210 ATO-PHE-310
    Max Quantity of Plates 250 250 250 250 300
    Heat Exchange Capacity BTU 96k~610k 102k~680k 205k~680k 510k~1500k 510k~1900k
    W 28k~180k 30k~200k 60k~200k 150k~450k 150k~550k
    Heat Exchange Area/Per Plate 0.090m2 0.095m2 0.136m2 0.210m2 0.310m2
    Volume/Per Channel 0.193L 0.21L 0.25L 0.40L 0.75L
    Max Flow 35m3/h 35m3/h 70m3/h 105m3/h 150m3/h
    Channel* H H, L, M H H H
    Designed Pressure 3.0/4.5MPa 3.0/4.5MPa 3.0/4.5MPa 2.5MPa 2.5MPa
    Size 568*190mm 617*192mm 490*250mm 739*322mm 985*370mm
    Weight (kg, n is the plates quantity) 4.2+0.40n 4.6+0.44n 6.5+0.42n 13+0.82n 31+1.2n
    Liquid Side Maximum Threaded 2" 2" 3" 4" 5"
    Fluorine Side Maximum Thread 2"1/8 2"1/8 3"1/8 4" 5"
    Distributor H HQ, LQ, MQ HQ HQ HQ
    Flange - - - 3", 4" 3", 4", 5"
    Medium Flow Direction counter flow
    Certification CE
    Plate Thickness 0.4mm
    Designed Temperature -196℃~+200℃

    *Channel Form Characteristics

    L channel: low heat transfer coefficient, low resistance, suitable for large flow rate and weak heat transfer (low specific heat or small temperature difference), such as air heat transfer under ambient pressure.

    H channel: high heat transfer coefficient, high resistance, suitable for small flow rate and strong heat transfer (high specific heat, with phase change or large temperature difference), such as refrigerant phase change heat transfer.

    M channel: heat transfer coefficient and resistance are between H channel and L channel.

    Dimension Drawing of Counter Flow Brazed Plate Heat Exchanger (unit: mm)

    Calculation method of size A
    Model ATO-PHE-090 ATO-PHE-095 ATO-PHE-136 ATO-PHE-210 ATO-PHE-310
    A (mm) 15+2.4n 15+2.4n 15+2.85n 17+2.85n 20+2.85n
    A (mm) 11+2.4n 11+2.4n 13+2.85n 13+2.85n 20+2.85n

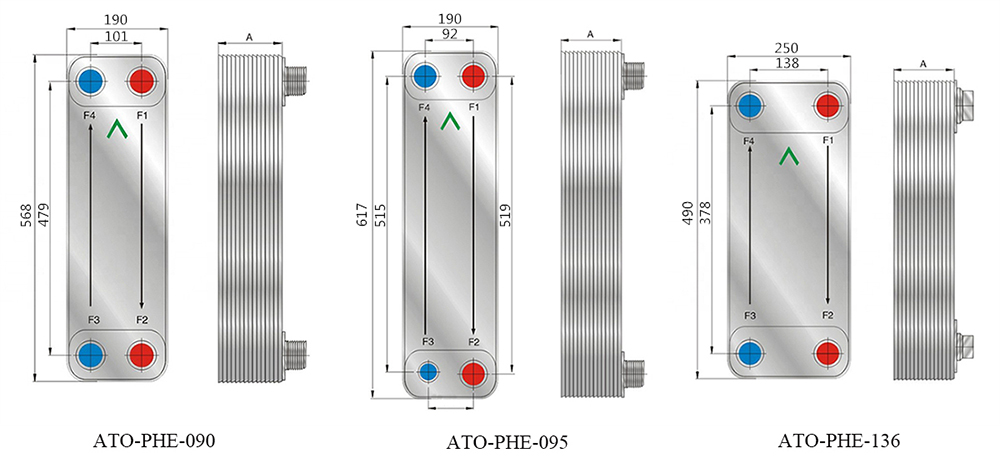

    Dimension Drawing of Counter Flow Brazed Plate Heat Exchanger, Model 090/095/136

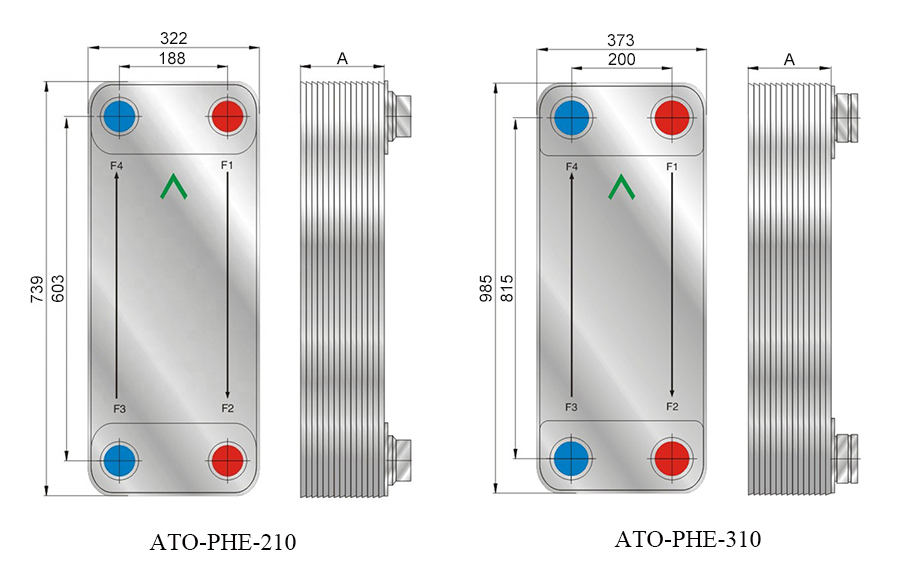

    Dimension Drawing of Counter Flow Brazed Plate Heat Exchanger, Model 210/310



    Application Occasion

    • Air conditioner refrigeration system: water to cold medium, cold medium to cold medium
    • Oil pressure system: water to oil, cold medium to oil
    • Industrial cooling system: water to water
    • Heating system: steam to water
    • Air compressor system (cooling system/drying system) : water to oil, water to air, cold medium to air, air to air

    Tips: Counter flow brazed plate heat exchanger troubleshooting.

    Malfunction Cause Solution
    Liquid crossing
    1. Operating conditions did not meet design requirements of the plate heat exchanger.
    2. The residual stress after cold stamping of the plate and clamping size in assembly are too small, causing stress corrosion.
    3. Leakage groove of the heat exchanger plate has a slight leakage, which causes the harmful substances in the medium to condense, corrode the plate, and cause liquid crossing.
    1. Adjust operating specifications of the plate heat exchanger to meet designed conditions.
    2. Clamping dimensions of the heat exchanger during maintenance and assembly should meet requirements, and not as small as possible.
    External leakage
    1. Improper clamping dimensions, uneven dimensions everywhere, or loose clamping bolts.
    2. Part of the gasket is detached from sealing groove, main sealing surface of the gasket is contaminated, gasket is  damaged or the gasket is aging.
    3. Plate is deformed, and displacement occurs during assembly, causing the gasket to run.
    4. There are cracks in plate sealing groove or in the second sealing area
    1. Under pressure-free conditions, re-clamp the device to clamping dimensions provided by plate heat exchanger manufacturer. Pressing size deviation and the parallelism between two pressing plates should be kept within 2mm.
    2. Mark the leaks, then disassemble the plate heat exchanger, and troubleshoot them one by one. When no spare parts are available, temporarily remove the deformed plate and reassemble it for use.
    Excessive pressure drop
    1. Pipeline of the operating system was not properly purged, and many dirt entered the inside of the plate heat exchanger. Flow channel cross-sectional area of the plate heat exchanger is narrow. Sediment and suspended matter in the heat exchanger are collected at corner hole and backflow area, which results in area of the flow channel there is greatly reduced. Therefore, the pressure is mainly lost in this part.
    2. After the plate heat exchanger is operated for a period of time, the pressure drop is too large due to fouling on plate surface.
    1. Remove dirt or scale from the plate heat exchanger flow channel. For newly running system, clean it once a week
      according to actual situation.
    2. The secondary circulating water is preferably soft water after being softened.



    Joint Identification Diagram

    Joint Identification Diagram of Brazed Plate Heat Exchanger

    Plate Assembly Diagram

    Plate Assembly Diagram of Brazed Plate Heat Exchanger

    Flow and Channel Diagram

    Flow and Channel Diagram of Brazed Plate Heat Exchanger
