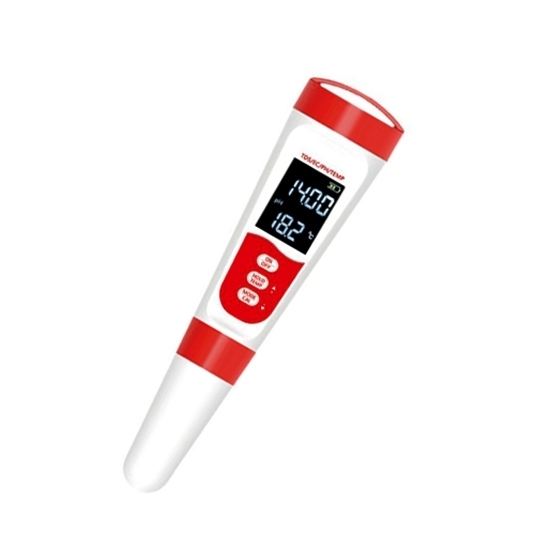

pH/EC/TDS/Temp Pen Tester

The pH/EC/TDS/Temp pen detector measures 0-14 pH, 0-9999 µS/cm EC, 0-9999 ppm TDS, and 0-60°C, with ±0.05 pH and ±2% accuracy, and includes automatic temperature compensation. Calibration involves three-point calibration for pH and single-point calibration for EC and TDS. The tester automatically shuts down after five minutes of inactivity and is powered by four 1.5V LR44 button batteries.

Specification

Feature

• Clear LCD Display: The ph ec meter has a bright liquid crystal display (LCD) that provides clear and easy-to-read information, even in low-light conditions. The screen shows both pH levels and water temperature simultaneously, enabling precise and real-time monitoring of water quality.
• Multifunctional Testing Capabilities: This ph machine combines four essential water quality tests in one device, allowing users to measure Total Dissolved Solids (TDS), Electrical Conductivity (EC), pH, and Temperature. Its versatility makes it ideal for comprehensive water analysis.
• Advanced Smart Chip Technology: Equipped with a high-precision imported smart chip, the device ensures reliable and consistent readings across a wide range of conditions. Its robust design guarantees long-term durability and stable performance.

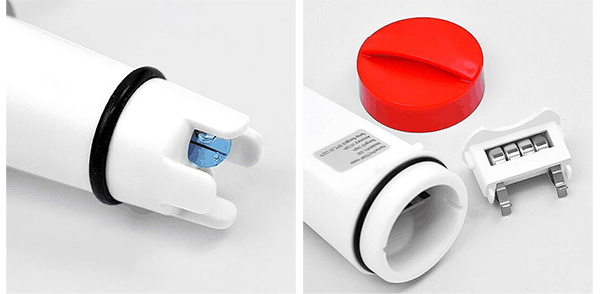

• Sensitive Glass Electrode: The high-sensitivity glass electrode provides accurate results and features a replaceable probe design for convenient maintenance. This allows users to easily replace the probe, ensuring continuous, optimal performance.
• Long-Lasting Battery Power: Powered by four high-capacity button batteries, the device offers extended operation time. These batteries are easy to replace, ensuring uninterrupted water testing whenever needed.
• Easy-to-Use Interface: Designed with a user-friendly interface, this device simplifies water testing for users of all ages and experience levels. Its intuitive operation allows anyone to quickly assess water quality and monitor key health indicators with ease.

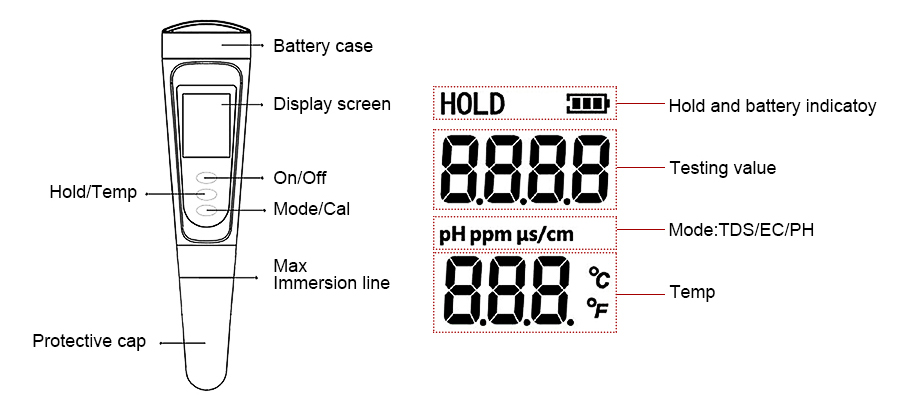

 Interface Display

 Application

 Tips: How do I calibrate the pH/EC/TDS/Temp Pen Tester?

Calibration is simple and varies depending on the parameter being measured:

• pH Calibration: Use standard buffer solutions (pH 4.00, 7.00, and 10.00). Submerge the probe into the solution, and follow the device’s instructions to calibrate.
• EC/TDS Calibration: Use an EC calibration solution (e.g., 1413 µS/cm), and adjust according to the device’s prompts. The device typically includes easy-to-use buttons for one-touch calibration.
