20A/45A Outdoor Isolator Switch, 1 Pole/2 Pole/3 Pole/4 Pole

1 Pole/2 Pole/3 Pole/4 Pole IP65 waterproof isolator switch is ruggedly constructed to withstand not only weather changes but also frequent switching under severe loads, such as motor loads or other high inductive loads. 20 amp, 32 amp, 45 amp or 63 amp disconnect switch is suitable for indoor and outdoor installations to suit different environments.

• Model: ATO-UKF
• Standard: IEC/EN60947-3, AS/NZS 3947
• Rated Voltage: 240V AC/415V AC
• Rated Frequency: 50/60Hz
• Utilization Category: AC22A/AC23A
• Number of Pole: 1 Pole, 2 Pole, 3 Pole, 4 Pole
• Rating: 20 amp, 32 amp, 45 amp, 63 amp
• External Material: PC or ABS
• Internal Contact Material: Copper or Silver
• IP Protection: IP65
• Approvals: CB, CE, SAA

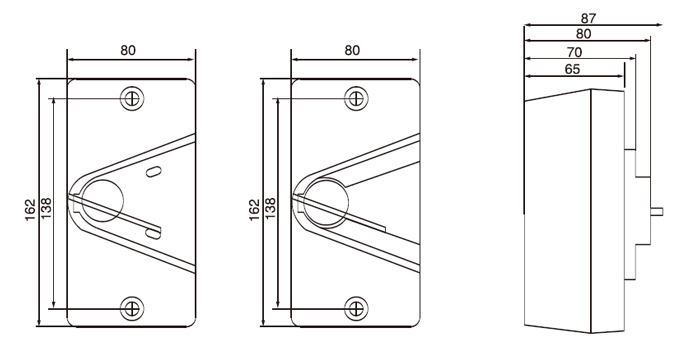

Dimension (Unit: mm)

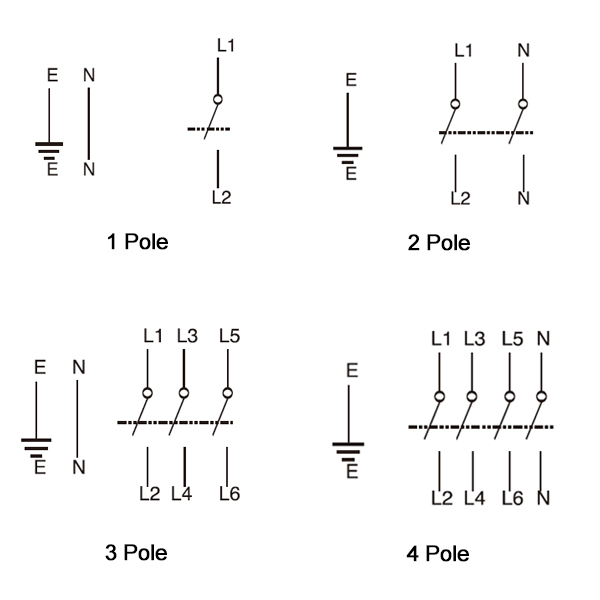

Wiring Diagram

Applications

Tips: Why use isolation switches outdoors?

Outdoor isolation switches are essential for safety, as they allow quick disconnection of power during maintenance or emergencies. They protect electrical equipment from damage caused by environmental factors like rain, dust, and temperature extremes, and are often required to meet electrical safety regulations. Additionally, they offer convenient access to shut down outdoor systems such as solar panels, HVAC units, or lighting, ensuring safe operation and maintenance without needing to access indoor control panels.
