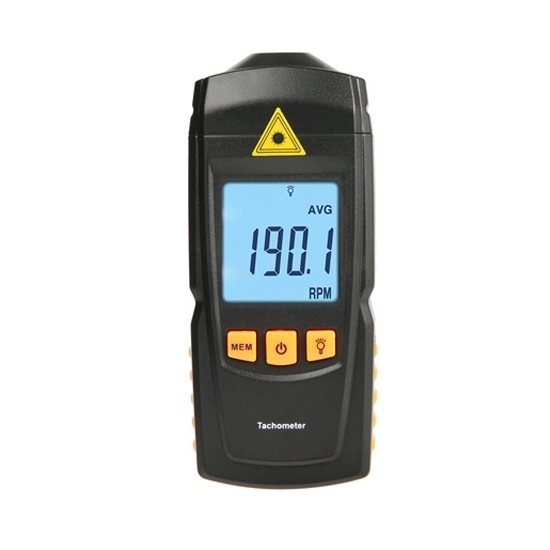

Non Contact Digital Laser Tachometer, 2.5 rpm-99999 rpm

Buy a digital laser tachometer at factory price. It is a handheld non-contact tachometer with a measurement range from 2.5 rpm to 99,999 rpm, 0.1rpm resolution, can be used in a variety of applications including automotive, industrial and laboratory environments.

Features

• Non-contact laser tachometer holds the maximum, minimum, average, and last measured values, displaying clear operation instructions with unit symbols.
• Digital laser tachometer features a wide measuring range, high resolution, low battery indication, LCD backlight, and auto shutdown.
• Using advanced microprocessor and laser technology, the non contact digital laser tachometer ensures intelligence, reliability, and easy readability on an oversized LCD screen.

Specifications

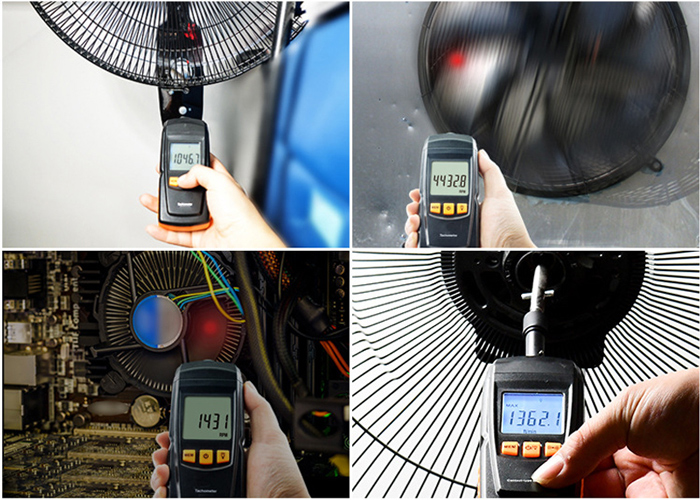

Applications

Tips: Briefly introduce the working principle of laser tachometer

A laser tachometer is a non-contact device used to measure the rotational speed (RPM) of a surface or object. Its working principle involves the following key steps:

• Laser Emission: The tachometer emits a coherent laser beam towards the rotating object.
• Reflection: When the laser beam strikes the surface of the object, it reflects to the tachometer. The surface of the object should ideally be rough or have a reflective marking to enhance the reflection.
• Detection: The tachometer contains a photodetector that senses the reflected laser beam.
• Frequency Measurement: As the object rotates, the laser beam hits different points on the surface. The tachometer measures the time interval between successive reflections, which is related to the speed of rotation.
• Output Calculation: The device calculates the rotational speed in RPM based on the frequency of the reflected signals and displays the result.

Laser tachometers are valued for their accuracy, non-contact measurement, and ability to work with a variety of surfaces and speeds, making them ideal for many industrial applications.
