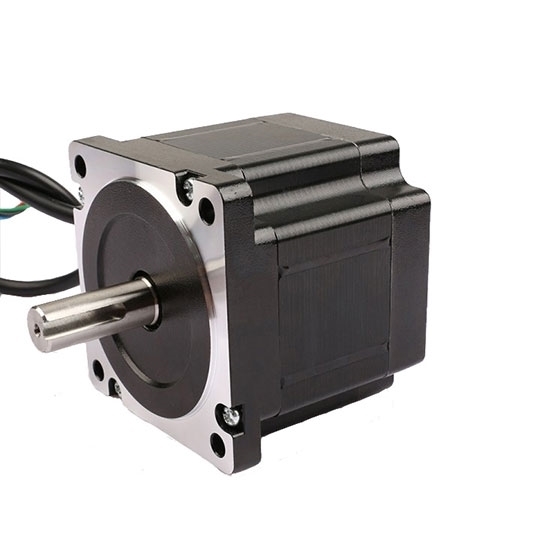

Nema 34 Stepper Motor Bipolar, 4.5A, 1.8 degree, 4 wires

$116.62

Brand new Nema 34 stepper motor, 4.4Nm holding torque, 4.5A phase current and 1.8 degree step angle. Motor type is Bipolar and body size is 80mm. Low price and manufacturer direct sale.

Matched Drive
Input Pulse Voltage *

SKU: ATO-STEP-2803445

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Nema 34 Stepper motor bipolar, 4.4Nm in 80mm, 1.8 degree, manufacturer direct sale.

Specification

Basics	Model	ATO280-4504A
	Matched Driver Model	ATODSP86(Click it to see more info)
	Holding torque	4.4Nm
	Current/phase	4.5A
	Resistance	0.65Ω
	Step angle	1.8°
	Rotor inertia	1600g.cm²
	Weight	2.4kg
	Length	80mm
	Motor leads	4
Technical parameters	Step Angle Accuracy	±5%(full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max.(rated current, 2 phase on)
	Ambient Temperature	-10℃～+ 50℃
	Insulation Resistance	100MΩ Min 500V DC
	Dielectric Strength	500V AC for one minute
	Shaft Radial Play	0.06Max.(450g)
	Shaft Axial Play	0.08Max.(450g)

Dimensions

Motor Connection

Details

Tips: Classification of stepper motor according to the drive mode of stepper motor

According to the drive mode, stepper motor is divided into constant voltage and current drive. The constant current drive is also divided into unipolar and bipolar drive.
Drive circuit of the constant voltage drive is simple, but the function of electronic commutation is realized. The cost is low. It is generally applicable for rotation at velocity lower than 150rpm and the occasions of large using quantity and low cost. The most common drive voltage of constant voltage is 12V DC. There is also 24V DC or other voltage. The drive voltage of the constant voltage is generally equal to or slightly larger than the phase voltage of the stepper motor. The drive voltage should not be increased randomly. Otherwise, the stepper motor will be halted if working current is too large. The resistance and inductance of stepper motor with the constant voltage drive is generally large. Along with the rise in rotational velocity of the motor, EMF will be increased rapidly, and then the input voltage is offset. Therefore, the working torque will be reduced rapidly along with the rising rotational velocity, so it is only applicable to the low-velocity application occasion.
Constant current drive is chopping wave drive. The drive voltage can be higher a lot than the phase voltage of motor. The working torque will be less attenuated when the motor rotates at high velocity. The stepper motor with general constant current drive is advised to be applicable for the range of 90-900rpm. As for the bipolar drive of stepper motor with the same size and inductance value, due to small resistance value and the working current can be large, the holding torque is large and it is the mainstream drive mode. As for the unipolar drive, it is only more advantageous over torque than bipolar drive if higher than 1800rpm only under the circumstance of very high velocity.

How to control a stepper motor using a PLC and HMI?
This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Common Stepper Motor Troubleshooting Problems and Tips
In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.

Controlling Stepper Motors with HMI and PLC for Fixed Cycle Power Delivery
In this video, we explore the step-by-step process of configuring an HMI and PLC to synchronize and manage specific cycle lengths of stepper motors, ensuring accurate power delivery.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

1.8 degree stepper motor teardown & construction display

In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. That is, when a pulse signal is added to the motor, the motor rotates through a step angle. The existence of this linear relationship, coupled with the characteristics of the stepper motor having only periodic errors and no cumulative errors. This makes it very simple to use stepper motors to control the speed, position and other control fields.
