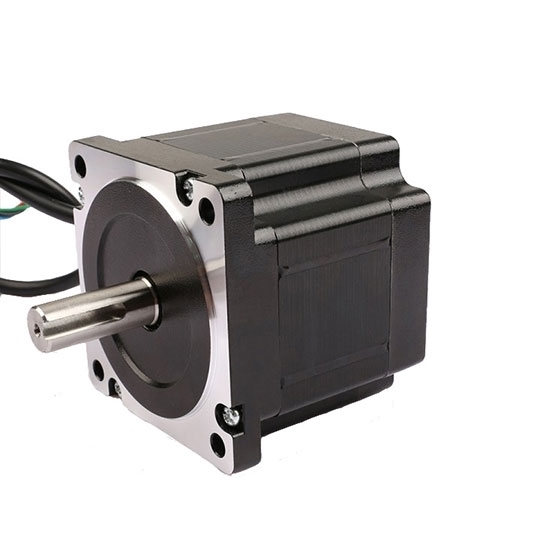

    Nema 34 Stepper Motor, 4.5A, 1.8 degree, 2 phase 4 wires

    $108.31
    High quality Stepper motor Nema 34 features 1.8 deg. step angle(200 steps/revolution). Each phase draws current 4.5A, allowing for holding torque of 2.8 Nm. Favorable price and manufacturer direct sale.
    SKU: ATO-STEP-2603445
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 34 Stepper motor, 2.8Nm in 60mm, 1.8 degree, manufacturer direct sale.

    Specification

    Basics Model ATO260-4504A
    Matched Driver Model ATODSP86(Click it to see more info)
    Holding torque 2.8Nm
    Current/phase 4.5A
    Resistance 0.5Ω
    Step angle 1.8°
    Rotor inertia 1000g.cm²
    Weight 1.7kg
    Length 60mm
    Motor leads 4
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)

    Dimensions

    stepper motor dimension L60-120

    Motor Connection

    /Motor connection

    Details

    Nema 34 Stepper Motor,1.1A-8A Details

    Tips: What is linear stepper motor?

    “Linear stepper motor” shall be actually called “screw stepper motor” for it is not the linear motor in real sense. The rotational motion of the stepper motor can be changed into the axial to-and-fro moment through motor with screw rod. As similar to the motion of liner motor, it is called as “linear stepper motor”.
    Common rotary stepper motor can run in linear motion by use of gears, synchronizing wheel, screw, rail and other mechanical structures. However, linear stepper motor can directly run in linear with simple structure and smaller size. Linear stepper motor is sensitive to load inertia; if the route is too long, air gap of linear stepper motor will be larger than that of rotary stepper motor, then causing the problems like the decrease of effective.
    According to shaft mode, linear stepper motor is divided into fixed shaft, external drive and tandem shaft. Meanwhile, according to the rotor style of the stepper motor, it is divided into hybrid and PM. The most common is external drive hybrid linear stepper motor. As for the screw, there is British system and metric standard and there is single-head and multi-head screw available. External drive screw is equipped with common and anti-backlash nuts. The screw accuracy directly influences the cost of linear stepper motor to a great extent.
