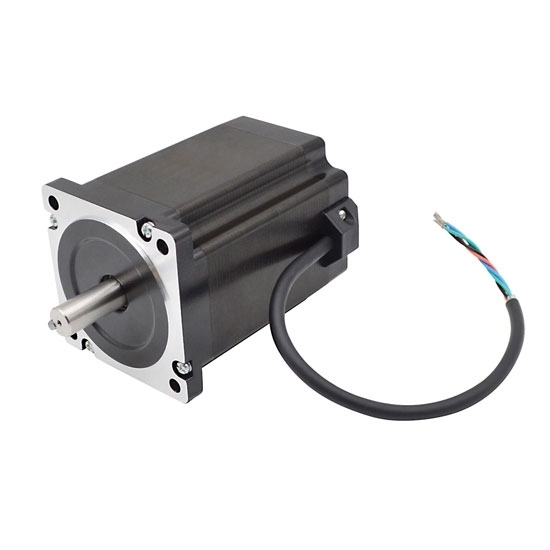

Nema 34 Stepper Motor, 2 Phase, 3.5A, 4.5N·m

5 out of 5 based on 4 reviews | Write a review

$139.69

Low price Nema 34 stepper motor, 86 x 86 x 80mm, is a high torque stepper motor for CNC machine, 3D printer and robot arm. 2 phase 4 wire hybrid stepper motor comes with holding torque up to 4.5 N·m, 14mm or 12.7mm shaft size, 1.8 degree step angle, drawing high current of up to 3.5A.

Shaft Diameter *
With Matched Driver
Input Pulse Voltage *

SKU: ATO-STEP-34S350

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

NEMA 34 2 phase stepper motor is a hybrid stepper motor that has the best attributes of the variable reluctance stepper motor and a permanent magnet stepper motor. The bipolar stepper motor is 1.8 degrees per step with 14mm or 12.7mm shaft performed well in various applications.

Physical Specification

Model Number: ATO-FY86ES350A
Matched the Driver Model: ATO-FYDM808T
Flanged Size: 86 x 86mm (Nema 34)
Motor Length: 80mm
Shaft Diameter: 14mm/ 12.7mm
Number of Leads: 4 wire
Weight: 2kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 3.5A
Holding Torque: 4.5 N·m (450 N·cm, 637 Oz.in)
Phase Resistance: 1Ω
Phase Inductance: 4.4mH
Rotor Inertia: 1500g·cm²

Dimensions (Unit: mm)

L=80mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: What is a stepper motor drive module?

The stepper motor is driven by the drive module. The stepper motor is driven by pulse current, and it rotates at a fixed angle. Its operation needs to be driven by an electronic device. This device is a motor driver. It converts the pulse signal sent by the control system into the angular displacement of the stepping motor, or in other words, every time the control system sends a pulse signal, it passes through the driver. Applying a pulse voltage to the stepper motor makes the stepper motor rotate by a step angle. So the speed of the stepper motor is proportional to the frequency of the pulse signal.

When the stepper motor driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle in the set direction (called "step angle"), and its rotation runs step by step at a fixed angle. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning. At the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.

How to control a stepper motor using a PLC and HMI?
This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Common Stepper Motor Troubleshooting Problems and Tips
In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.

Controlling Stepper Motors with HMI and PLC for Fixed Cycle Power Delivery
In this video, we explore the step-by-step process of configuring an HMI and PLC to synchronize and manage specific cycle lengths of stepper motors, ensuring accurate power delivery.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

1.8 degree stepper motor teardown & construction display

In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. That is, when a pulse signal is added to the motor, the motor rotates through a step angle. The existence of this linear relationship, coupled with the characteristics of the stepper motor having only periodic errors and no cumulative errors. This makes it very simple to use stepper motors to control the speed, position and other control fields.

Warranty

360 Days warranty

Thank you for buying industrial automation products on ATO.com, all products sold by ATO and the partner cover a 360-days-warranty, effective from the date of receiving the products.

What is covered?

ATO is responsible for providing free spare parts, free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than ATO store or a ATO authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than ATO approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by ATO.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a ATO authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
