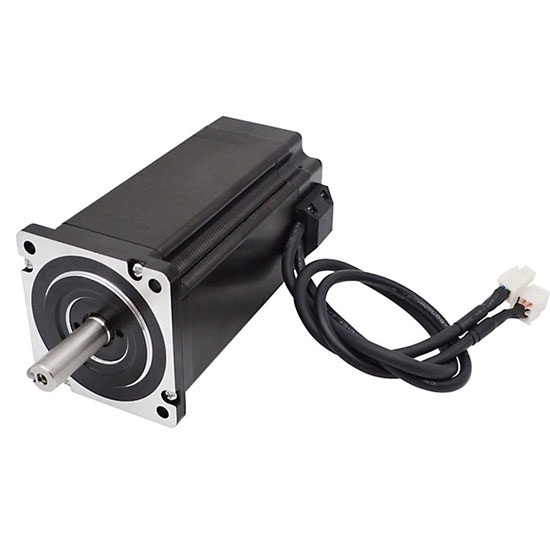

Nema 34 Closed Loop Stepper Motor, 2 Phase, 6.2A, 4.5N·m

5 out of 5 based on 4 reviews | Write a review

$183.44

Factory price Nema 34 (86 x 86mm) closed loop stepper motor with encoder for sale, comes with holding torque of 4.5N·m, 12mm long shaft, 1.8 degree step angle, 4 wire connections, suitable for CNC machine, 3D printer and robot arm, etc. This hybrid stepper motor draws high current of up to 6.2 amps with a step accuracy of ±5%.

With Matched Driver

SKU: ATO-STEP-34CM620

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents
Warranty

High precision Nema 34 closed loop stepper motor with high holding torque of 4.5 N·m is suitable for the biggest projects, such as CNC application, robotic, 3D technology and so on. The bipolar stepper motor is 1.8 degrees per step with 12mm shaft size and encoder performed well in various applications.

Physical Specification

Model Number: ATO-FY86EM620BC1
Matched the Driver Model: ATO-FYDB808T
Flanged Size: 86 x 86mm (Nema 34)
Motor Length: 102mm
Shaft Diameter: 14mm
Number of Leads: 4 wire
Weight: 2.1kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 6.2A
Holding Torque: 450 N·cm (4.5 N·m, 637 Oz.in)
Phase Resistance: 0.34Ω
Phase Inductance: 2.5mH
Rotor Inertia: 1800g·cm²

Dimensions (Unit: mm)

L=102mm

Dimensions of Nema 34 2 Phase Closed Loop Stepper Motor

Motor & Encoder Wiring Diagram

Wiring Diagram of 2 Phase Closed Loop Stepper Motor

Speed-Torque Curve Diagram

Speed Torque Curve Diagram of Nema 34 2 Phase Closed Loop Stepper Motor

Details

Nema 34 Closed Loop Stepper Motor 4.5N·m-12N·m Details

Tips: How to safely operate stepper motors

Whether it is caused by improper operation to damage the stepper motor, or because of improper use, the safety of it is threatened, which will cause huge losses. The stepper motor should be operated safely in the application.

Fully understand the motor: If you want to operate a permanent magnet stepper motor safely, read the instructions and specs carefully before using it, understand all aspects of the motor, clarify how the motor is used, how to switch it on and off.

Operate in accordance with the regulations: maintain the safe operation of the high percision stepper motor, and use the motor in strict accordance with the regulations to ensure the correct operation of all aspects of it, and avoid undesirable consequences and safety problems caused by improper operation or wrong operation.

Safe operation of stepper motors: always pay attention to the condition of the motor, find out and stop the inspection in time when there is an abnormality in the motor, to prevent potential safety hazards due to emergencies, or even accidents.

Nema 34 Stepper Motor Catalog.pdf

Warranty

360 Days warranty

Thank you for buying industrial automation products on ATO.com, all products sold by ATO and the partner cover a 360-days-warranty, effective from the date of receiving the products.

What is covered?

ATO is responsible for providing free spare parts, free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than ATO store or a ATO authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than ATO approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by ATO.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a ATO authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
