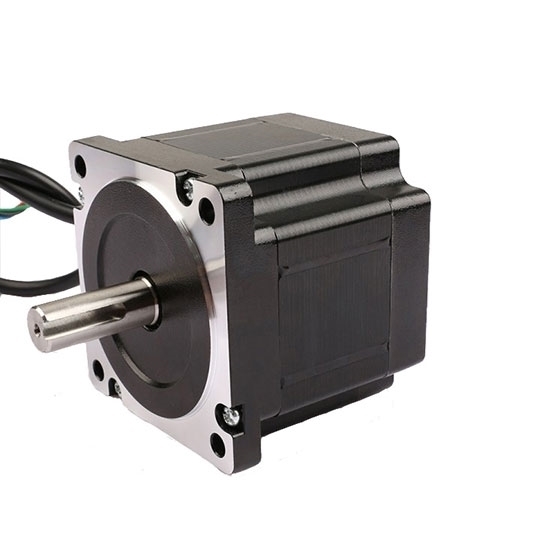

    Nema 34 2-phase Stepper Motor, 3A, 1.8 degree, 4 wires

    5 out of 5 based on 1 reviews | Write a review
    $106.62
    Nema 34 bipolar stepper motor with high torque, 4.4Nm of holding torque, phase current 3A and 1.8 degree step angle. Brand new, high quality and manufacturer direct sale.
    SKU: ATO-STEP-2803403
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 34 Stepper motor with high torque, 4.4Nm in 80mm, 1.8 degree, 2 phase and 4 wires, manufacturer direct sale.

    Specification

    Basics Model ATO280-3004A
    Matched Driver Model ATODSP86(Click it to see more info)
    Holding torque 4.4Nm
    Current/phase 3A
    Resistance 1.5Ω
    Step angle 1.8°
    Rotor inertia 1600g.cm²
    Weight 2.4kg
    Length 80mm
    Motor leads 4
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)

    Dimensions

    stepper motor dimension L60-120

    Motor Connection

    /Motor connection

    Details

    Nema 34 Stepper Motor,1.1A-8A Details

    Tips: What is closed-loop stepper motor?

    Closed-loop stepper motor indicates the combination of stepper motor and closed-loop control. Due to the shortcomings of open-loop control system of stepper motor, like low accuracy and out of step, the closed-loop control system of stepper motor can be applied into the occasions with high precision. Such control mode indicates directly or indirectly detecting the location or velocity to devolve (or load) and automatically giving out the drive pulse sequence of stepper motor through feedback and proper handling. As for this drive pulse sequence, there are many methods for realizing such changing control mode according to the location of load or rotor. High requirement for location precision can be realized on occasion with high precision requirement by combining micro-step drive technology and microcomputer control technique.

    Existing reviews of Nema 34 2-phase Stepper Motor, 3A, 1.8 degree, 4 wires
    Could your DSP42 stepper motor drive control a NEMA 8 stepper?
    Could your DSP42 stepper motor drive control a NEMA 8 stepper?
    From: Tristram | Date: 02/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, this DSP42 controller can be used for NEMA 11, 14, 17 stepper motor, so it can be used for NEMA 8 motor, but it would be better to send us your specific parameters of NEMA 8 motor for more confirmation.
