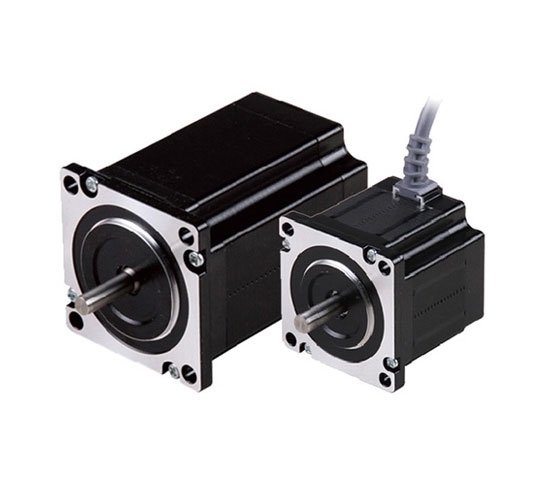

    Nema 24 Stepper Motor, 4A, 1.8 degree, 2 phase 4 wires

    5 out of 5 based on 1 reviews | Write a review
    $84.62
    Low cost and high quality Nema 24 stepper motor, 2.5Nm holding torque, 1.8 deg. step angle(200 steps/rev), body in 88mm, direct sales by manufacturer.
    SKU: ATO-STEP-2882404
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 24 Stepper motor, 1.8 degree, 2.5Nm in 88mm, phase current 4A and resistance 0.3Ω, manufacturer direct sale.

    Specification

    Basics Model ATO288-4004A
    Matched Driver Model ATODSP86(Click it to see more info)
    Holding torque 2.5Nm
    Current/phase 4A
    Resistance 0.3Ω
    Step angle 1.8 °
    Rotor inertia 1600g.cm²
    Weight 2.4kg
    Length 88mm
    Motor leads 4
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)

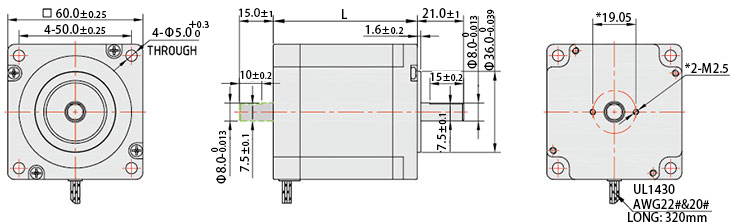

    Dimensions

    stepper motor dimension L60

    Motor Connection

    Motor connection

    Tips: Application of stepper motor in paper rewinding machine

    Paper rewinding machine, an indispensable machine in printing industry, plays a key role in pharmaceutical industry. It is used for rewinding a large piece of aluminum foil paper overlapped in single row into a reel. It is controlled with programmable controller. By using stepper motor and air cylinder as actuating elements, it features stable and reliable action, simple operation, convenient maintenance and automatic running. It can automatically give alarm and stop working when there is no paper or the fed paper is little. The contact part between tablet and the machine is made of 304 materials while the other part is made of steel plate stoving varnish, 304 or aluminum alloy anodizing. It is a most ideal device tablet reel of the pharmaceutical factory and such similar packages.
    Composition and functions:

    1. Tablet feeding part: the tablets are put into the hopper, the oscillator will automatic feed the tablets into the table sequencing part. The feeder of this part and the tablet sequencing is automatic. When there are many tablets, it will stop feeding tablets, and vice versa.
    2. Tablet sequencing part: The role of this part is to arrange the disordered tablets according to certain direction and set quantity and feed them into the tablet feeding part.
    3. Paper feeding part: putting the packing material into the location of roll paper, then the machine will automatically feed the tablets into the film rolling location.
    4. Electric control part: the whole operation process of the device is controlled through PLC, and automatically actuated according to the sequence. In case of lack of certain package, it will automatically give alarm and halt down.
    Existing reviews of Nema 24 Stepper Motor, 4A, 1.8 degree, 2 phase 4 wires
    Works as anticipated
    I'm using these nema 24 motors to open and close my blinds, so I'm not sure yet how accurate their steps are. So far, they seem to be working as anticipated. I will order more.
    From: Dozzie | Date: 15/11/2022
