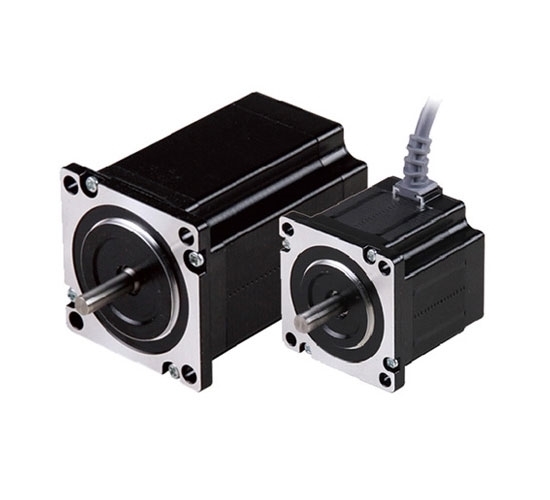

Nema 24 Stepper Motor, 2A, 1.8 degree, 2 phase 4 wires

5 out of 5 based on 1 reviews | Write a review

$84.62

High quality Nema 24 stepper motor with 1.8 deg. step angle(200 steps/rev). Each phase draws current 2A, allowing for a holding torque of 2.5Nm. Favorable price and direct sales by manufacturer.

Matched Drive
Input Pulse Voltage *

SKU: ATO-STEP-2882402

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Nema 24 Stepper motor, 1.8 degree, 2.5Nm in 88mm, phase current 2A and resistance 1.2Ω, manufacturer direct sale.

Specification

Basics	Model	ATO288-2004A
	Matched Driver Model	ATODSP86(Click it to see more info)
	Holding torque	2.5Nm
	Current/phase	2A
	Resistance	1.2Ω
	Step angle	1.8°
	Rotor inertia	1600g.cm²
	Weight	2.4kg
	Length	88mm
	Motor leads	4
Technical parameters	Step Angle Accuracy	±5%(full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max.(rated current, 2 phase on)
	Ambient Temperature	-10℃～+ 50℃
	Insulation Resistance	100MΩ Min 500V DC
	Dielectric Strength	500V AC for one minute
	Shaft Radial Play	0.06Max.(450g)
	Shaft Axial Play	0.08Max.(450g)

Dimensions

Motor Connection

Tips: Application of stepper motor in material measurement

Measurement of powdery material
In the measurement of the powder packaging machine, the stepper motor is used to control the rotation velocity and revolutions of screw. Thus, the mechanical structure is simplified and it is controlled really conveniently. Under the circumstance of no-load, the rotational velocity and stopping position of the stepper motor only depends on the frequency and pulse number of pulse signal and is free of influences of load change, which features obvious precision advantage compared to the screw measurement controlled with electromagnetic clutch. It is further applicable measuring the materials with large change in proportion.
Measurement of viscous material
Stepper motor is used to control gear pump, which also can be precisely measured. Measurement of gear pump relies on measurement of engagement rotating of a pair of gear. The material is mandatorily conveyed to the discharge hole from the feeding hole through the space among gears. Meanwhile, the power is from the stepper motor, whose location and velocity is controlled with the programmable controller. Measuring precision is higher than that of piston pump. As for viscous material packing machine, straight gear is used to increase speed. Thus, the velocity of the stepper motor is reduced; the noise is controlled; reliability is also enhanced; and the measuring precision is guaranteed.

How to control a stepper motor using a PLC and HMI?
This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Common Stepper Motor Troubleshooting Problems and Tips
In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.

Controlling Stepper Motors with HMI and PLC for Fixed Cycle Power Delivery
In this video, we explore the step-by-step process of configuring an HMI and PLC to synchronize and manage specific cycle lengths of stepper motors, ensuring accurate power delivery.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

1.8 degree stepper motor teardown & construction display

In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. That is, when a pulse signal is added to the motor, the motor rotates through a step angle. The existence of this linear relationship, coupled with the characteristics of the stepper motor having only periodic errors and no cumulative errors. This makes it very simple to use stepper motors to control the speed, position and other control fields.

Existing reviews of Nema 24 Stepper Motor, 2A, 1.8 degree, 2 phase 4 wires

Quiet and cheap stepper motor

Works well to replace a broken extruder motor. If you have a broken or failing motor, buy this nema 24 stepper motor. its basically a straight replacement that is cheap and quiet.

From: Adcock | Date: 21/11/2022
