    Nema 23 2-phase Stepper Motor, 2.8A, 1.8 degree, 4 wires

    5 out of 5 based on 1 reviews | Write a review
    $91.15
    2-phase 4-wire stepper motor, size in Nema 23, holding torque of 1.89Nm, phase current of 2.8A , 1.8 deg. step angle(200 steps/revolution), high quality and manufacturer direct sale.
    SKU: ATO-STEP-762328
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 23 Stepper motor, 2.8A phase curent, 1.89Nm in 76mm, 1.8 degree, manufacturer direct sale.

    Specification

    Electrical Specification Model ATO57STH76-2804
    Matched Driver Model ATODSP57(Click it to see more info)
    Step Angle 1.8°
    Holding Torque 1.89Nm
    Rated Current/phase 2.8A
    Phase Resistance 1.13Ω
    Inductance 3.6mH
    Rotor Inertia 440g-cm2
    Physical Specification Frame Size 57 x 57mm
    Length 76mm
    Shaft Diameter Φ6.35mm
    Shaft Length 19mm
    Motor Leads 4
    Weight 1.1kg
    Technical Parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max. (rated current, 2 phase on)
    Ambient Temperature -20℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.02Max. 450g
    Shaft Axial Play 0.08Max. 450g
    Quality Assurance Warranty Period 12 months
    Certificate CE, ROHs, ISO/SGS9001

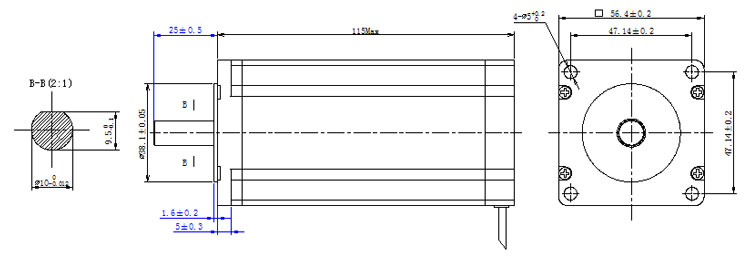

    Nema 23 Stepper Motor Dimensions: (Unit=mm)

    NEMA 23 hybrid stepper motor dimensionsL Max=76mm

    Nema 23 Stepper Motor Wiring Diagram

    NEMA 23 hybrid stepper motor wiring diagram

    Tips: Application of stepper motor into mine hoisting

    Stepper motor features simple structure, large power, convenience in maintenance, high positioning accuracy, good reliability, small volume and as many as 32 choices for the drive system, low price, no accumulated location error, self-locking and low cost, so it is widely applied. Additionally, along with the application control of SCM using mature microcomputer technique, automatic control can be easily realized. Above characteristics completely meet the requirements of micro drive. Besides, automatic control of mine hoisting system and unattended duty hoisting system can be realized.
    As for the control process of the stepper motor during mine hoisting, firstly, mine hoist reducer approaches the crawling stage and the velocity is reduced to about 3m/s, the electromagnetic valve is powered on with automatic control system. The electromagnetic valve rod overcomes the elastic force shift down of spring under the role of electromagnetic force so that the compressed air enters the cavity B from A and enters the gasbag clutch through hollow shaft of reducer, so that micro drive device can be connected with the host.
    When the velocity is continuously reduced the crawling speed, the dynamic brake power of the main motor is cut off by controlling the circuit. The hoister crawls at stable low velocity from stepper motor drive. By hoisting the vessel to the end point to unload, control circuit to cut off the electromagnetic valve, so that the stepper motor is separated from main engine to complete the crawling process for once. Then, follow the next cycle, by improving and reducing the occurrence rate of accidents when unloading, the safety of coalmine production can be enhanced and foundation for automation production of the coalmine can be laid.
