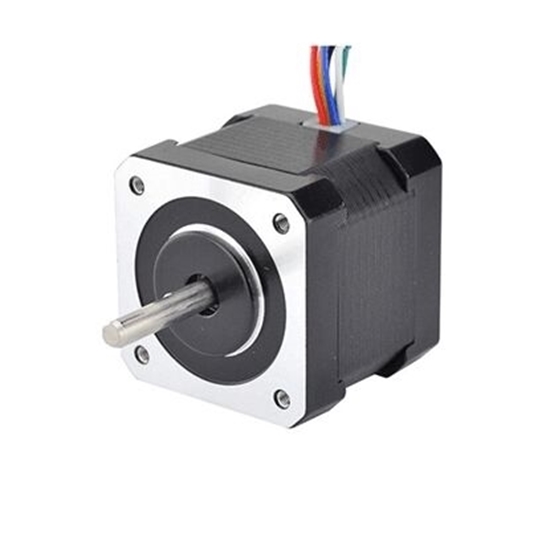

    Nema 17 Stepper motor, 4V 1.2A, 1.8 degree, 2 phase 6 wires

    $65.85
    This is a professional and high precision stepper motor. Higher precision can be achieved using half step/micro-stepping modes available on many stepper motor controllers.
    *
    SKU: ATO-STEP-391712
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    2 phase, 6-wire Nema 17 stepper motor with 1.8 degree step angle, each phase draws current 1.2A at 4V, allowing for a holding torque of 36oz-in.

    Specifications

    Electrical Specification Model ATO39-1206A
    Matched the Driver Model ATODSP42 (Click it to see more info)
    Step Angle 1.8°
    Holding Torque 2.59kg-cm(36oz-in)
    Voltage 4V
    Rated Current/phase 1.2A
    Phase Resistance 3.3Ω
    Inductance 4mH
    Rotor Inertia 54g-cm2
    Physical Specification Frame Size 42 x 42mm
    Length 39mm
    Shaft Diameter Φ5mm
    Shaft Length 22mm
    Motor Leads 6
    Weight 0.28kg
    Technical Parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max. (rated current, 2 phase on)
    Ambient Temperature -10℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 1Min. 500VAC·5mA
    Shaft Radial Play 0.06Max. 450g
    Shaft Axial Play 0.08Max. 450g
    Quality Assurance Warranty Period 12 months
    Certificate CE, ROHs, ISO/SGS9001

    Nema 17 Stepper Motor Dimension (Unit=mm)

    Nema 17 stepper motors dimension

    L1=24mm, Lmax=39mm

    Nema 17 Stepper Motor Wiring Diagram

    Nema 17 stepper motors wiring diagramTips: Low frequency characteristic of servo motor and stepper motor
    Stepper motor at low speed is easy to appear low frequency vibration phenomenon. Vibration frequency is associated with load and drive performance, it is generally believed half frequency vibration frequency for the motor no-load takeoff. This determined by the working principle of stepper motor in low frequency vibration phenomenon is very bad for the normal operation of the machine. When the stepper motor work in low speed, general damping technology should be adopted to overcome the low frequency vibration phenomenon, such as add damper on motor, or drive the segmentation technology, etc..
    Ac servo motor running smoothly, even in the low speed also won't appear when the vibration phenomenon. Ac servo system has a resonance suppression function, can cover the mechanical rigidity, and internal system has the function of frequency resolution (FFT), can detect the mechanical resonance point, is advantageous for the system adjustment.
