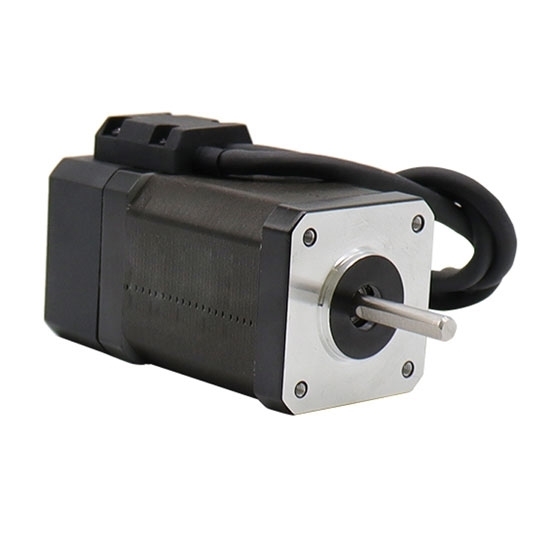

Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.72N·m

5 out of 5 based on 5 reviews | Write a review

$95.39

Lightweight Nema 17 closed loop hybrid stepper motor at affordable price, with encoder for 3D printer, CNC machine and robotics projects, two phase four wire, step angle 1.8°, rated current 2A, motor length 60mm, maximum holding torque 0.72N·m, low noise and high torque.

With Matched Driver
Encoder Specification *
Input Pulse Voltage *

SKU: ATO-STEP-17CC200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

ATO closed loop stepper motor is a bipolar electric motor that converts electrical pulse signal into corresponding angular displacement or linear displacement. This permanent magnet stepper motor is widely used in electronics manufacturing, sewing machine, semiconductor equipment, laser cutting, and robotics projects, etc.

Physical Specification

Model Number: ATO-FY42EC200BC1
Matched the Driver Model: ATO-FYDB504T
Flanged Size: 42 x 42mm (Nema 17)
Motor Length: 80mm
Shaft Diameter: 5mm
Number of Leads: 4 wire
Weight: 0.5kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 2A
Holding Torque: 0.72 N·m (72 N·cm, 102 Oz.in)
Phase Resistance: 1.75Ω
Phase Inductance: 4mH
Rotor Inertia: 110g·cm²
Encoder: A, B two-channel signal, 1000ppr (default)/2500ppr, 5V DC power supply

Dimensions (Unit: mm)

L=80mm

Wiring Diagram

Speed-Torque Curve Diagram

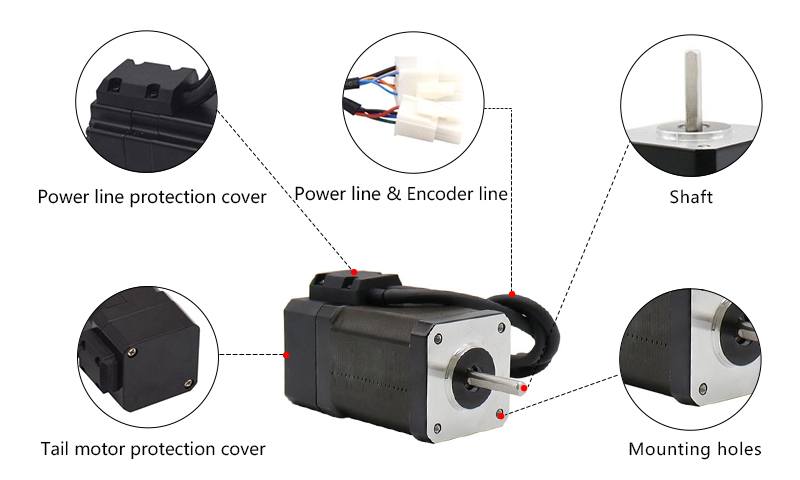

Details

Tips: The difference between stepper motor and other control motors

The biggest difference between a low cost stepper motor and other control motors is that the stepper motor receives a digital control signal (electric pulse signal) and converts it into an angular displacement or linear displacement corresponding to it. It itself is an executive element that completes the digital mode conversion. Moreover, it can be open-loop position control, input a pulse signal to get a prescribed position increment. Compared with the traditional DC control system, best stepper motor has a significantly lower cost and almost no system adjustment is required. The angular displacement of the stepper motor is strictly proportional to the number of pulses input, and it is synchronized with the pulse in time. Therefore, as long as the number of pulses, frequency and phase sequence of the motor windings are controlled, the required rotation angle, speed and direction can be obtained.

How to control a stepper motor using a PLC and HMI?
This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Common Stepper Motor Troubleshooting Problems and Tips
In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.

Controlling Stepper Motors with HMI and PLC for Fixed Cycle Power Delivery
In this video, we explore the step-by-step process of configuring an HMI and PLC to synchronize and manage specific cycle lengths of stepper motors, ensuring accurate power delivery.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

1.8 degree stepper motor teardown & construction display

In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. That is, when a pulse signal is added to the motor, the motor rotates through a step angle. The existence of this linear relationship, coupled with the characteristics of the stepper motor having only periodic errors and no cumulative errors. This makes it very simple to use stepper motors to control the speed, position and other control fields.
