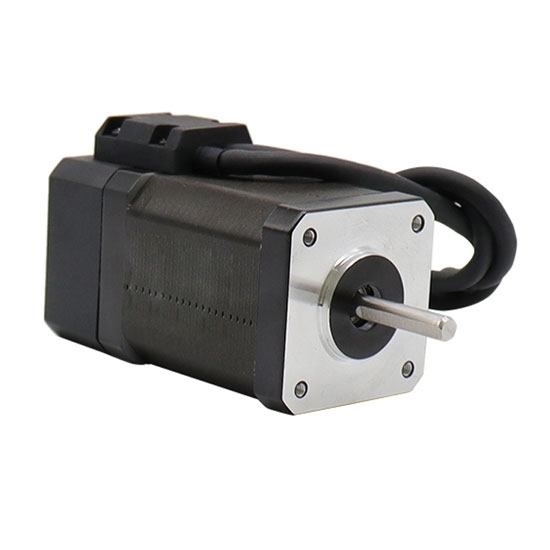

    Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m
    Picture of Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m
    Picture of Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m
    Picture of Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m
    Picture of Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m
    Picture of Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m

    Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.4N·m

    5 out of 5 based on 6 reviews | Write a review
    $82.89
    Nema 17 42 x 42mm closed loop hybrid stepper motor at low price, low noise, high torque and high efficiency. Step angle 1.8°, rated current 2A, motor length 60mm, holding torque 0.4N·m. ATO permanent magnet stepper motor with encoder is used for CNC machine, sewing machine and 3D printer.
    *
    SKU: ATO-STEP-17CM200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 17 closed loop hybrid stepper motor with encoder for sale, precise positioning, fast response and high torque, is widely used for robot arm, sewing machine, CNC router, 3D printer, welding machine, textile equipment and laser cutter, etc.

    Physical Specification

    • Model Number: ATO-FY42EM200BC1
    • Matched the Driver Model: ATO-FYDB504T
    • Flanged Size: 42 x 42mm (Nema 17)
    • Motor Length: 60mm
    • Shaft Diameter: 5mm
    • Number of Leads: 4 wire
    • Weight: 0.24kg

    Electrical Specification

    • Motor Type: Bipolar Closed Loop Stepper
    • Step Angle: 1.8°
    • Rated Current: 2A
    • Holding Torque: 0.4N·m (40 N·cm, 57 Oz.in)
    • Phase Resistance: 0.8Ω
    • Phase Inductance: 1.9mH
    • Rotor Inertia: 57g·cm2
    • Encoder: A, B two-channel signal, 1000ppr (default)/2500ppr, 5V DC power supply

    Dimensions (Unit: mm)

    L=60mm

    Dimensions of Nema 17 2 Phase Closed Loop Stepper Motor

    Wiring Diagram

    Wiring Diagram of Nema 17 2 Phase Closed Loop Stepper Motor

    Speed-Torque Curve Diagram

    Speed Torque Curve Diagram of Nema 17 2 Phase Closed Loop Stepper Motor

    Details

    Nema 17 Closed Loop Stepper Motor 0.4N·m-0.75N·m

    Tips: Hybrid stepper motor basic

    As an executive element, the best hybrid stepper motor is one of the key products of mechatronics and is widely used in various automation control systems.
    Stepper motor is an electric motor that converts electrical pulses into angular displacement. In other words, when the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (that is step angle) in the set direction. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning. At the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.

    Warranty

    360 Days warranty

    Thank you for buying industrial automation products on ATO.com, all products sold by ATO and the partner cover a 360-days-warranty, effective from the date of receiving the products.

    What is covered?

    ATO is responsible for providing free spare parts, free technical support to assist the customer to repair the defective products until the problem is solved.

    What is not covered?

    • Product purchased from anyone other than ATO store or a ATO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than ATO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by ATO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a ATO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
