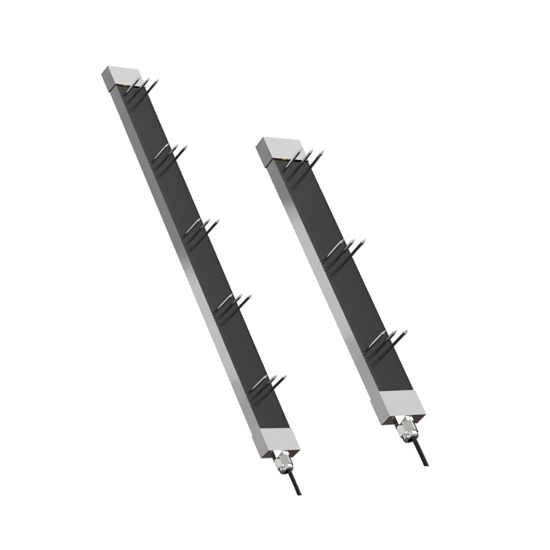

    Multi Depth Soil Moisture Sensor, 5~45cm, EC/Temp

    $184.12
    Good multi depth soil moisture sensor for sale. It can measure soil EC and Temp from 5 to 45cm depth, uses a DC 5-30V power supply with 1.1W consumption, operating in -40°C to +80°C. The humidity sensor measures soil conductivity (0-20000 µS/cm), moisture (0-100%), and temperature with high accuracy, featuring built-in temperature compensation, IP68 protection, and RS485 (Modbus) output. Built with anti-corrosion electrodes and flame-retardant epoxy sealing, it’s durable for long-term field use.
    *
    SKU: ATO-SOIL-RSN01
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-quality multi-depth soil moisture sensor measure EC and temperature from 5 to 45 cm. It operates on a 5-30V DC power supply with 1.1W consumption in -40°C to +80°C. It accurately measures soil conductivity (0-20000 µS/cm), moisture (0-100%), and temperature, with built-in temperature compensation, IP68 protection, and RS485 output.

    Specification

    Model ATO-RS-*-N01-TR-5
    DC Power Supply (Default) DC 5-30V
    Maximum Power Consumption 1.1W (12V DC power supply)
    Operating Temperature -40°C ~ +80°C
    Conductivity Range 0-20000 µS/cm
    Conductivity Resolution 10 µS/cm
    Conductivity Accuracy ±3% FS (0-10000 µS/cm), ±5% FS (10000-20000 µS/cm) Brown soil 60% RH, 25°C
    Soil Moisture Range 0-100%
    Soil Moisture Resolution 0.1%
    Soil Moisture Accuracy ±2% (0-50%), ±3% (50-100%)
    Soil Temperature Range -40°C ~ +80°C
    Soil Temperature Resolution 0.1°C
    Soil Temperature Accuracy ±0.5°C
    Ambient Temperature Compensation Built-in sensor,Compensation range: 0-50°C
    Protection Level IP68
    Probe Material Special anti-corrosion electrode
    Sealing Material Black flame-retardant epoxy resin
    Wiring Method 1 meter
    Output Signal RS485 (Modbus protocol)

    Features

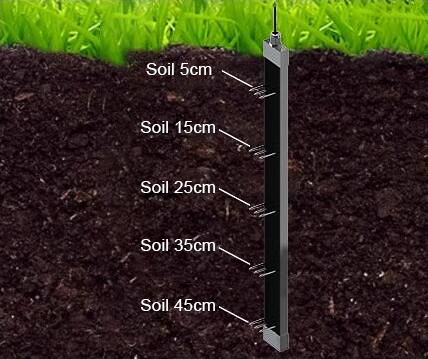

     Multi depth soil moisture sensor feature

    • Modbus-RTU Communication: Uses RS485 protocol for easy integration and remote monitoring.
    • IP68 Protection Level: Durable and resistant to dust and water, suitable for long-term field deployment.
    • Three-needle Probe Design: Ensures accurate contact with soil, minimizing measurement error and enhancing data accuracy.
    • Multi-layer Monitoring: Capable of tracking soil moisture, temperature, and conductivity at multiple depths for a detailed soil profile.
    • Fast Response Time: Provides real-time data within 1 second for immediate readings.
    • Corrosion-resistant Stainless Steel: Protects against soil microorganisms and oxidation, enabling long-term use in various soil conditions.
    • Long-lasting and Reusable: Built for repeated use with an extended lifespan, ideal for continuous monitoring applications.

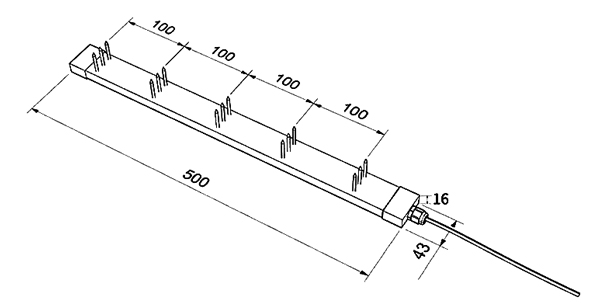

    Size (Unit: mm)

    Multi depth soil moisture sensor size

    ApplicationSpeedy soil moisture sensor application

    Tips: What advantages does the three-needle probe design offer for soil monitoring?

    The three-needle probe design maximizes soil contact, which helps reduce measurement errors and provides more consistent and accurate readings. This design ensures that the sensor captures a broader sample of the soil, accounting for variations within a small area, which leads to a more reliable representation of soil conditions. Additionally, the three probes enhance durability and stability, especially in hard or compact soils, where single probes may be less effective or prone to damage. The robust construction makes it suitable for diverse soil types and long-term installations.
