    Mini Fanless Industrial PC, Celeron J1900, Linux/Win 7

    5 out of 5 based on 1 reviews | Write a review
    $249.69
    Low price industrial PC with fanless design and mini size. CPU Intel Celeron J1900 quad core, suitable system Linux/Windows 7/Windows 10, RAM supports DDR3L 1333/1600MHz SODIMM RAM slot, max 8GB, I/O interface 2*RS232 COM, 2*RJ45 LAN, embedded mounting, working voltage DC 12V.
    *
    *
    *
    *
    SKU: ATO-IPC-N3450LW
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial PC has fanless design, mini size, embedded installing. Available CPU Intel Celeron J1900 quad core, supports system Linux/Windows 7/Windows 10, RS232 COM and RJ45 LAN port. Industrial grade computer produced by high quality manufacturer, widely applied in industrial automation, medical, logistics transportation, warehouse, electronic education, etc.

    Specification

    Model ATO-N3
    CPU Default is Intel Celeron J1900 (Quad core quad threading, 2MB Second Level Cache, 1.99 GHz)
    Chipset J1900 (Single chip)
    Usable System Linux, Windows 7, Windows 10
    RAM 1*DDR3L 1333/1600MHz SODIMM RAM Slot, Max. 8GB
    BIOS AMI UEFI BIOS
    Display Chip Integrated Intel HD Graphics
    Display Port 1*VGA, 1*HDMI (Supports synchronous and asynchronous dual display)
    Front I/O Interface 1*Power Switch
    1*USB 3.0
    3*USB 2.0
    2*RS232 COM
    Rear I/O Interface 1*Audio
    2*RJ45 LAN
    1*VGA
    1*HDMI
    1*DC 12V Input
    Expansion Slot 1*MINI PCIE Slot (WIFI/BT optional, please contact us for configuration)
    1*MINI PCIE Slot (Supports MSATA)
    Network 2*10/100/1000M RTL8111E LAN
    Storage 1*MSATA, 1*2.5" HDD
    Input Voltage DC 12V
    Other Function Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot,
    Watchdog (0~255 level) (Standard version doesn't set these function)
    Working Temperature 0 ~ +50℃ (Commercial HDD), -20℃ ~ +50℃ (Industrial SSD), Surface air flow
    Working Humidity 5%~95% non-condensing
    Certification CE, CCC, FCC Class A, ROHS
    Color Black (Color can be customized)
    Material High-quality all aluminum, surface anodic oxidation
    Dimension 134 * 126 * 38.5mm
    Net Weight 0.7 kg

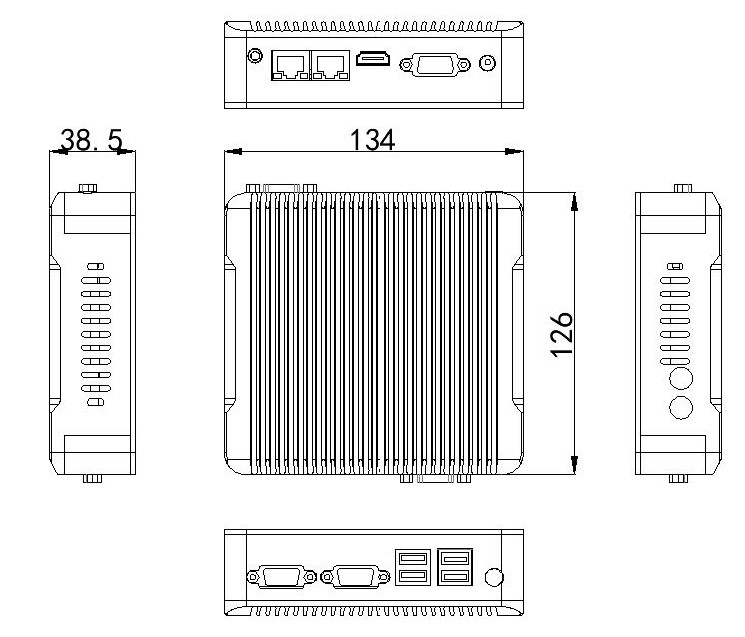

    Mini Fanless Industrial PC Dimensions Diagram (Unit: mm)

    Dimensions of Mini Fanless Industrial PC, Celeron N3450, Linux/Win 7

    Accessories List

    Name Quantity Specification
    Power Adapter 1 DC 12V, 5A/ 12V, 4A
    Power Cord 1 Any Plug Optional
    (US, EU, UK etc.)
    VESA Bracket 1 Standard

    Tips: Mini industrial PC applications in daily life.

    • Airport dynamic information display and query, monitoring management system, highway toll station system, traffic light monitoring, etc., require the stability of mini industrial PC and the ability to adapt to complex and harsh working environments to realize data collection and calculation.
    • The operation and control of high-speed rail stations and subway stations, such as automatic ticket vending machines, gates, car broadcast, cab operation, control, and track detection are all controlled by mini industrial PC.
    • For devices that require long-term use and normal operation, such as smart express cabinets and vending machines, as well as devices that need to adopt, collect, and control various data, industrial PC is undoubtedly a better choice.
    • Power monitoring, power dispatching, remote meter reading, water purification, transmission and other processes use mini industrial PC, which can ensure the reliability, safety, economy, environmental friendliness and safe use of the power grid or water treatment, and realize the automatic detection and calculation of the system And control functions.
    • Building video surveillance, voice call centers, ATM machines, VTM machines, self-service query terminals, etc., require a variety of external devices. The mini industrial PC has strong scalability and good maneuverability, and can provide remote management and monitoring functions to effectively ensure data security transmission.
