Micro Linear Actuator, 12V/24V, 1200N, 100mm Stroke

5 out of 5 based on 3 reviews | Write a review

$132.89

Micro linear actuator with small load capacity 1200N, compact design, protection grade IP65, 12V, 24V DC for optional, 100mm stroke, mini installation dimension is stroke +105mm, rated spped at full load is 4mm/s at 1200N.

Voltage (V) *
Load Capacity *
Stroke *
Feedback Signal *

SKU: ATO-LACTU-1200

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview
Related Video

Micro Linear Actuator, 12V/24V, 1200N, 100mm Stroke is one kind of power-driven device, its installation is not the terrain distance limitations, is ideal to replace hydraulic, pneumatic, both to save energy, but also through the microcomputer control, easy to automate.

Electric Linear Actuator Specifications

Model	ATO-DJ806
Max. Dynamic Load	1200N
Max. Self-locking	1700N
Input Voltage	12V DC, 24V DC, 36V DC, 48V DC (Option)
Rated Power	0.2kW
Rated Speed	4000 rpm
Lead Screw	Acme Screw
Operation Mode	Electrical
Stroke Range	50-1000mm
Duty Cycle	25%
Motor Type	Brushed DC
Application	Industrial
Operational Temp.	-10℃ to 65℃
Operating Noise	≤65 dB
Weather Protection	IP66
Overload Protection	None (standard)
Position Feedback	None (standard), Endstop signal, Potentiometer for optional
Weight	2kg

Linear Actuator Load and Speed Selection

Code	Max. Dynamic Load	Max. Self-locking	Reduction Ratio	Pitch	Speed±10% (mm/s)		Max.stroke without potentiometer
Code	(N)	(N)	---	(mm)	No Load	Full Load	(mm)
A	200	300	5:1	3.17	40	22	1000
B	100	150	5:1	5	60	45	1000
C	50	100	5:1	7.5	80	65	1000
D	600	900	20:1	3.17	10.5	7	1000
E	500	800	20:1	5	16.5	12	1000
F	250	400	20:1	7.5	25	20	1000
G	1000	1500	30:1	3.17	7.2	5	1000
H	700	1000	30:1	5	11.5	8.5	1000
I	400	600	30:1	7.5	17	13.5	1000
J	1200	1700	40:1	3.17	5.5	4	1000
K	800	1200	40:1	5	8.5	6.5	1000
L	450	700	40:1	7.5	13	10	1000

Note:

Measurements are made with actuators in connection with stable power supplies and ambient temperature at 20°C.
For example, when real load is 800N, choosing code (K) is fine. Of course, you can also choose (G) or (J) which come with more load buffer, higher safety factor and longer product service time.
There are many factors affecting the "customizable maximum stroke", such as load, speed, force direction, etc., so the real application scenarios should be considered. If the parameters you required are not listed, please contact our sales engineers.

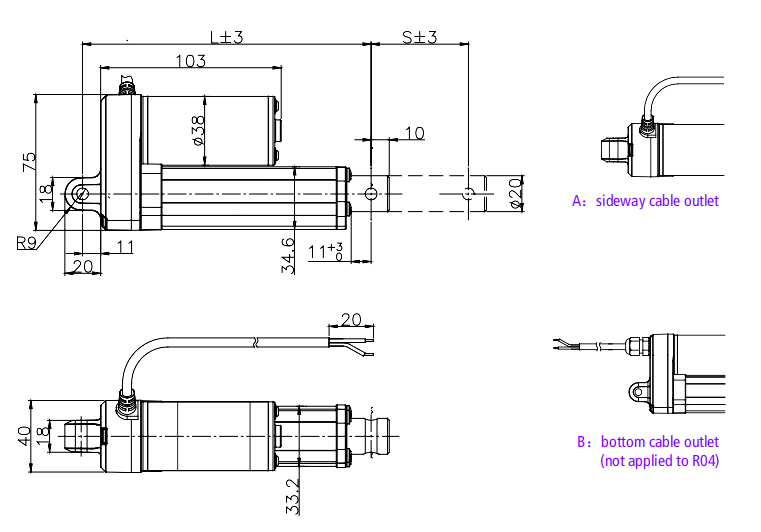

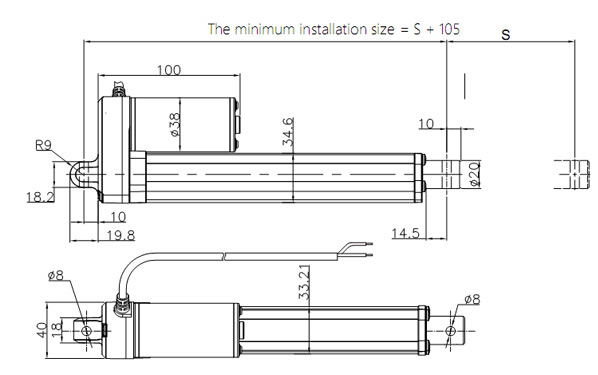

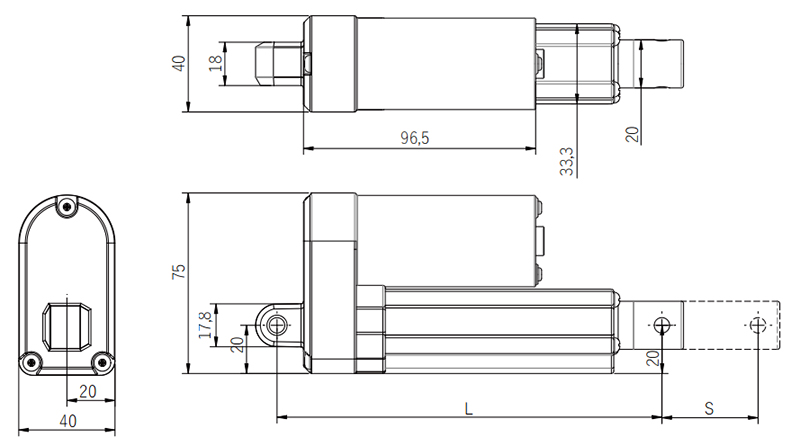

Linear Actuator Standard Dimension (mm)

Front Mount. Ends	Rear Mount. Ends	A	B	S	L
F01	R01	Sideway cable outlet	Bottom cable outlet	Stroke	Install Length
A≥S+105
S=50~299mm, B+0mm
S=300~499mm, B+15mm
S≥500mm, B+25mm
L≥A+B

12V/24V/36V/48V Linear Actuator Current-Load Curve

Tips: What is the principle of electrical lift and massage chair?

All operations of the massage chair is realized by the built-in massage chair linear actuator, which is controlled by electric power after power-on. The electric lift and massage chair can control the rising and falling angle of the backrest of the sofa through the falling and rising buttons on the button, so as to provide a suitable angle for people to relax.

Adopt 24V DC current as the power supply.
Adopt 24V permanent magnet DC motor as the driving power source.
After supplying 24V DC current to the motor, the motor rotates, and has level-1 speed reduction through the motor worm and turbine.
Fix one nut on the inner pipe. After revolving the screw rod, the nut advances and retreats on the screw rod, so as to carry forward and backward the inner pipe.
Through switching the positive and negative poles of the 24V DC current, the motor will rotate forward or backward, so as to carry forward and backward the inner pipe.
Through changing the thread distance of the screw rod and nut, the thrust and speed of the rod can be changed, so as to promote the electrical lift and massage chair to realize the complicated actions.

Heavy load micro linear actuator 12V / 24V

Linear actuators/electric actuators are general-purpose auxiliary drive devices, which are widely used in medical, furniture, household, electronics, electric power, machinery, metallurgy, transportation, mining, petroleum, chemical, lifting, transportation, construction, food processing And other industries.

How 12V/24V electric linear actuator works?

ATO series linear actuators have a wide range load capacity from 850N~20000N, use 12V/24V/36V/48V voltage, and have a standard stroke of 100mm~400mm.
