    Magnetostrictive Displacement Measurement Sensor 500mm

    $949.86
    Aluminum alloy rail type magnetostrictive displacement sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for CNC machinery worked in large vibration.
    SKU: ATO-MSR-B0500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

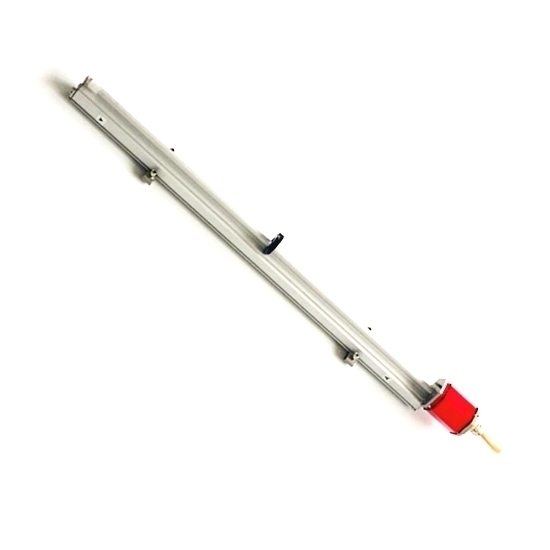

    Magnetostrictive linear displacement sensor with measuring range 500mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive sensors are widely used in all kinds of CNC machinery that always working in large vibration.

    Specification:

    Basics Model ATO-MSR-B0500
    Measuring range 0~500 mm
    Shipping weight 3 kg
    Length 673.1 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Temperature excursion ≤0.001%FS
    Operating voltage 24V DC
    Current drain 5~16mA
    Vibration coefficient 5g/10-2000Hz/IEC standards IEC standards 68-2-6
    Operating temperature -40℃~85℃
    Load characteristic Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
    Output 0~5V; 0~10V; 0~20mA; 4~20mA
    Installation method Fixed clip, with specific screw M5X20
    Magnet type Slider magnet, levitating magnet
    Protection Class IP65

    Dimensional drawing (unit: mm):
    magnetostrictive sensor rail type dimensional drawing-b
    Installation diagram:
    magnetostrictive sensor rail type installation drawing
    Tips: Application of magnetostrictive sensors

    1. Detect the position of servo cylinder piston.
    2. Detect the position of lapping machine.
    3. Detect the position of forging machine (obtain stable performance in speed control system).
    4. Detect the position of other machines such as gantry machine (equilibrium of goal post).
    5. Detect the position of injection machine.
    6. Adjustment of railway and bridge (detect displacement of guide rail, control opening, lifting and closing of bridge).
    7. Detect the position of of wood machinery.
    8. Geodetic measurement system (detecting geological disasters such as earthquake and landslide, etc.).
    9. Detecting displacement of port facilities (not detecting outdoors, large strokes and other types).
