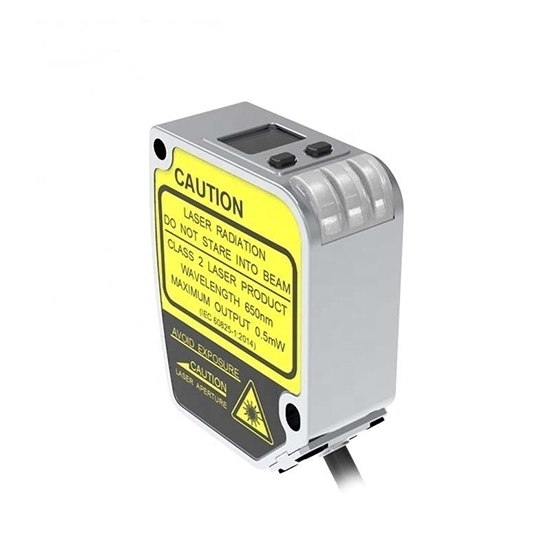

    Long Range Laser Distance Sensor, 80-500mm

    5 out of 5 based on 1 reviews | Write a review
    $1,174.13
    Factory price laser distance sensor with laser spot size Φ2.5mm@500mm, protection class IP67, measuring range 80-500mm, can be used for reel production monitor, solar panel warpage measurement, control movement of robot arm, small pack missing detection.
    *
    SKU: ATO-LDS-PDACC50
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Features

    • Exquisite appearance and light aluminum housing, easy to mount and dismount.
    • Convenient operation panel with visualized OLED display to complete all function settings fastly.
    • Small diameter light spot to accurately measure very tiny objects.
    • Key or remote teach-in to easily set response time for different applications.
    • Powerful function setting and flexible output way.
    • Complete shielded desgin, stronger anti-interference perfomance.
    • IP67 protection degree, able to work in water or dusty environment.

    Specification

    Model ATO-PDA-CC50DGR ATO-PDA-CC50TGI
    Linear Accuracy ±0.3% F.S ±0.4% F.S
    Supply Voltage 10-30V DC 12-24V DC
    Output Signal RS-485 (Support Modbus protocol) 4-20mA (Load resistance< 390Ω)
    Connection 2m 5-pins/ 4-pins PVC cable 4-pin: analog output
    Light Source Red laser (650nm)
    Laser Class Class 2
    Spot Diameter Φ2.5mm@500mm
    Measuring Range 80-500mm
    Resolution 15um@80mm; 500@500mm
    Repeated Accuracy  30um@80mm; 250um@250um; 1000um@500mm
    Voltage Drop <2.5V
    Power Consumption ≤ 700mW
    Load Current 200mA
    Circuit Protection Short circuit, reverse polarity, overload protection
    Ambient Temperature -10-50℃
    Temperature Drift ±0.02% F.S./℃
    Response Time 2ms/ 16ms/ 40ms (configurable)
    Ambient Humidity 35-85% RH (No condensation)
    Anti-ambient Light Incandescent light: <3,000lux
    Impluse Withstand 500m/s² (About 50G)3 times each in X, Y, Z directions
    Vibration Resistance 10-55Hz Double amplitude 1mm, 2h each in X, Y, Z directions
    Protection Degree  IP67
    Material Housing: Aluminum; Lens cover: PMMA; Display panel: PC
    Accessory Screw (M4×35mm)×2, Nut×2, Washer×2, Mounting bracket, Operation manual
    Dimension 65*51*23mm
    Certificates CE, UL, CCC, ROHS
    Warranty 12 months

    Remark:
    ①Test conditions: Standard data at 23 ± 5 ℃; Supply voltage 24V DC; 30 minutes' warmup before test; Sampling period 2ms; Average sampling times 100; Standard sensing object 90% white card.
    ②The statistical data follows the 3σ criteria
    ③Repeat accuracy: 23 ± 5 ℃ environment, 90% reflectivity white card,100 test data results.
    ④Slave address,baud rate setting only for RS-485 series.
    ⑤Protecion circuit only for switch output.

    Dimension (unit=mm)



    Dimension of laser distance sensor

    Accessory Dimension

    Accessory dimension of laser distance sensor

    Wiring diagram

    Wiring diagram of laser distance sensor

    Remark:
    The sensors are equipped with shielded cables, Q is the switch output.
    RS-485 output: The black and white lines A and B must not be reversed and A and B cannot be short-circuited with the power line "﹢, -".
    Analog output: The gray line Ia cannot be short-circuited with the power line "﹢, -". There is a small shielded wire, which shall not be in short-circuit connection with the analog output wire, but recommended to be grounded or not grounded.

    Installation of laser distance sensor

    Installation of laser distance sensor

    Tips: Precautions of Laser Distance Sensor.

    Please do not use in the following environment.

    1. Direct sunlight.
    2. Places with high humidity or easy condensation.
    3. Places containing corrosive gases.
    4. Places subject to severe vibration or shock.

    Connection and installation

    1. Do not use the sensor in an unstable state immediately after the power is turned on,it is recommended to test after 30 minutes of power on to achieve desired accuracy. Be sure to carry out wiring with the power off. If a wrong wiring occurs, it will cause a malfunction.
    2. Please make sure that the power supply voltage is within the rated value before powering on.
    Please use rated load.
    3. The RS485 signal line cannot be short-circuited with the power supply,otherwise it may cause product failure or damage the product.
    4. When installing the sensor,do not subject the sensor to severe external forces(such as hammering,etc), as this may damage the sensor performance.
    5. Do not bend the lead out of the cable with excessive force,and avoid applying pressure such as pulling.

    Cleaning

    1. Thinner will corrode the surface of the filter, it is best to avoid using it.
    2. If there is dust on the surface, please wipe it gently with dry dust-free cloth.

    Existing reviews of Long Range Laser Distance Sensor, 80-500mm
    Accurate laser distance sensor
    Is there anything I need to be aware of for normal use?
    From: Noel | Date: 22/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1.Make sure the weather environment is good. There should be less dust and floating particles visible in the air.
    2.Try not to use the laser distance sensor in rainy weather, because the water will cause the refraction of the laser dispersion, affecting the results of ranging and ranging range.
    3.Rangefinder is not a plaything. Careful use can extend the service life.
